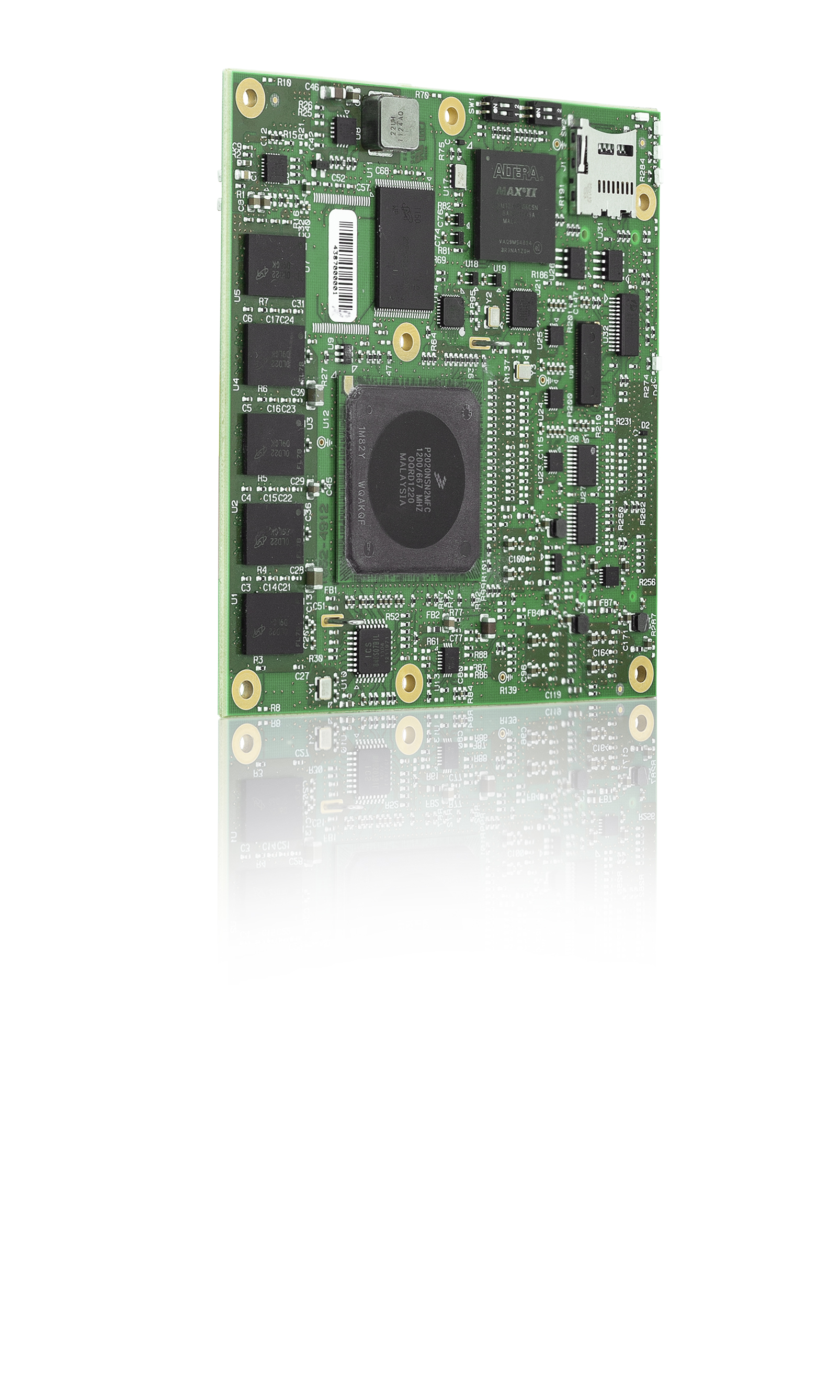

COMe-cP2020 This product is legacy

Kontrons COMe-cP2020, Freescale™ Power Architecture® COM for deeply embedded number crunching systems

Specifications

Outstanding Performance/Watt ratio
Flexible interface support by 4x SerDes lanes
Commercial and industrial temperature versions
COM Express® compact compliant (95 x 95mm)
Industrial Control, Energy, Communication, Transportation, Defense

The Kontron COMe-cP2020 which is mechanically compatible with the COM Express® compact (95 mm x 95 mm) specification is based on the Freescale™ QorIQ™ P2020 dual-core Power Architecture® with 1.2 GHz. For deployment in the industrial temperature range of -40 to +70 °C there is also a version available with 1.0 GHz clock rate.

The Power Architecture® COMe-cP2020 Computer-on-Module meet the requirements for variety markets and applications:
# in the transport sector for deployment in vehicle control or event-recording units,
# in the energy sector in performance measurement systems,
# in industrial applications like PLCs or closed-loop controls for synchronous motors or turbines,
# in enterprise network and telecommunication appliances, for example, in switches, WLAN access points or Long Term Evolution (LTE)- and WiMax channel card applications.

Features

CPU	Freescale™ QorIQ™ P2020 e500 Power Architecture®

Bus type

Processor Local Bus

Cache

32 KB L1 instruction cache and 32 KB L1 data cache for each core
512 KB L2 cache with ECC

Compliance

Com Express® compact

CPU Clock

2x 1.2 GHz commercial temp.
2x 1.0 GHz industrial temp.

Dimensions (H x W x D)

95x95 mm

Ethernet

3x 10/100/1000 Base-T
2x IEEE 1588 control

Flash Disk

64kbit I²C EEPROM
up to 2GB NAND Flash + 2MB NOR Flash
2nd 2MB SPI NOR Flash for boot recovery purposes
512kB MRAM

Hard Disk

MicroSD card slot / bootable

Humidity rel.

93% relative Humidity at 40 °C, non-condensing
(acc. to IEC 60068-2-78)

Interface

2x GPIO (exclusive with SDHC usage)
2x I²C
1x SDHC
1x MDIO (IEEE 802.3 clause 22)
SPI
5x IRQ; 1x IRQ OUT
16 bit eLBC (2 Devices)
JTAG debug

Main Memory

up to 4GB DDR3-667 72-bit

Operating System

Linux; Wind River VxWorks 6.9.2

PCI Express / PCI support

see SERDES

Power Consumption

est. 12W/12V

Real Time Clock

Yes

Serial

2x UART
Serial Rapid I/O see SERDES

Temperature

c-version 0° to +60
i-version -40°C to +70°C

USB	4x USB 2.0

USB Boot

tbd

Watchdog

Yes

SERDES

4x SerDes up to 3.125 Gbps multiplexed across controllers can be configured as: PCIexpress, sRIO, GbE; Example:
1x PCIe x4
2x PCIe x1 + 1PCIe x2 2.5 Gbps
1x PCIe x2 + 2x 1GbE SGMII
2x SRIO x1 2.5Gbps + 2x GbE SGMII
2x SRIO x1 3.125 Gbps
1x SRIO x4 with 1.25/2.5 or 3.125 Gbps

Downloads

Datasheets

QorIQ Computer-on-Modules Portfolio (Release Candidate)
[ datasheet-com-express-qoriq_web.pdf, 2.37 MB, Aug.31.2017 ]

Datasheet Wind River VxWorks BSP for D0481 platform
[ dat_vxw69_bsp_d0481_r10_01.pdf, 969.01 KB, Aug.31.2017 ]

Manuals

User's Guide
[ 1055-5562_10_sk-man-come-cp2020.pdf, 1.4 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe-cP2020c 2x1.2 2GB/1GB 66001-2010-12-2		COM Express® basic Computer-on-Module with Freescale™ QorIQ™ P2020 Dual Core 2x1.2GHz, 2GB DDR3-667 ECC memory down, 1GB onboard NAND Flash, commercial temperature range 0° to +60°C.	more
COMe-cP2020i 2x1.0 2GB/1GB 66002-2010-10-2		COM Express® basic Computer-on-Module with Freescale™ QorIQ™ P2020 Dual Core 2x1.0GHz, 2GB DDR3-667 ECC memory down, 1GB onboard NAND Flash, extended temperature range -40° to +70°C.	more
