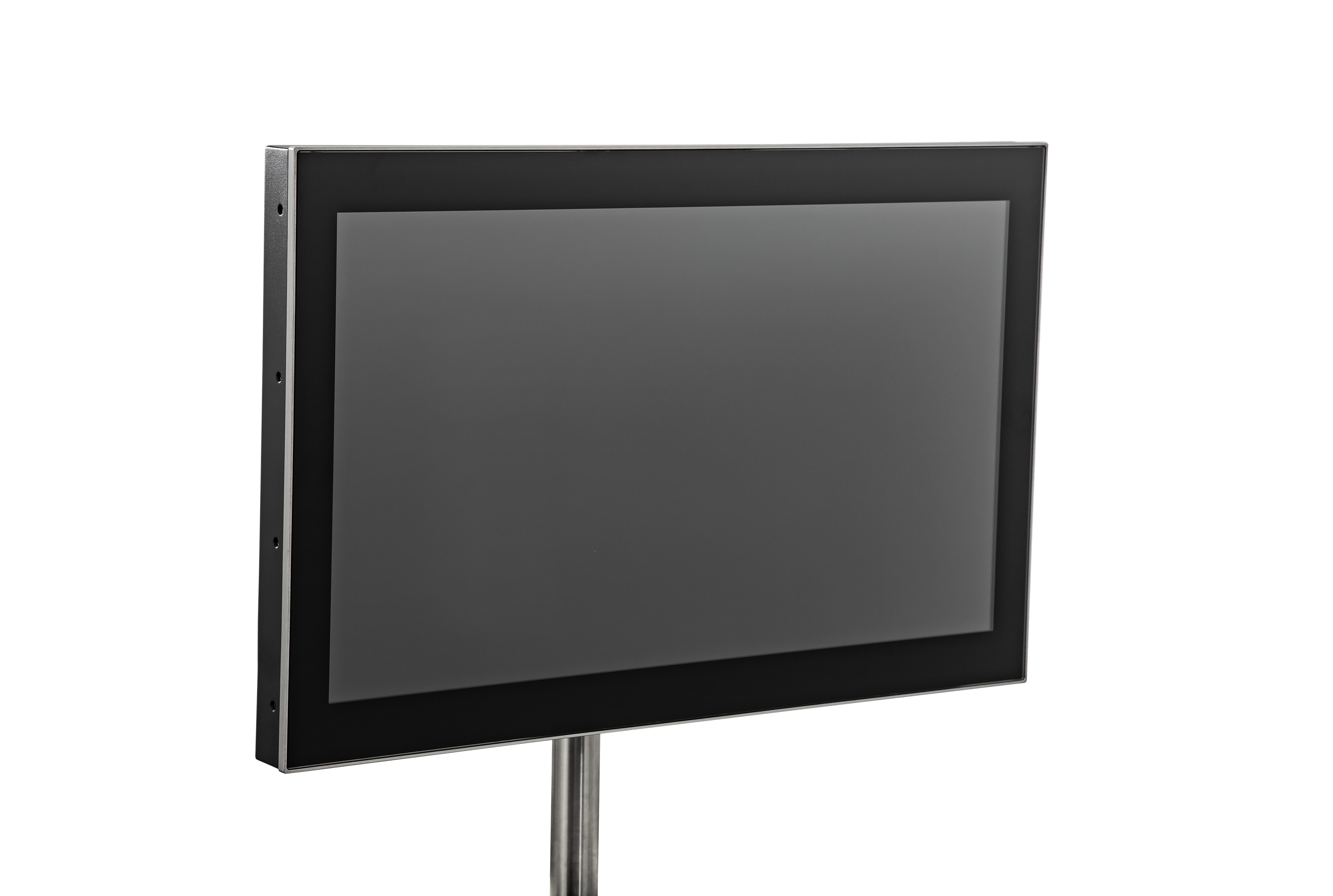

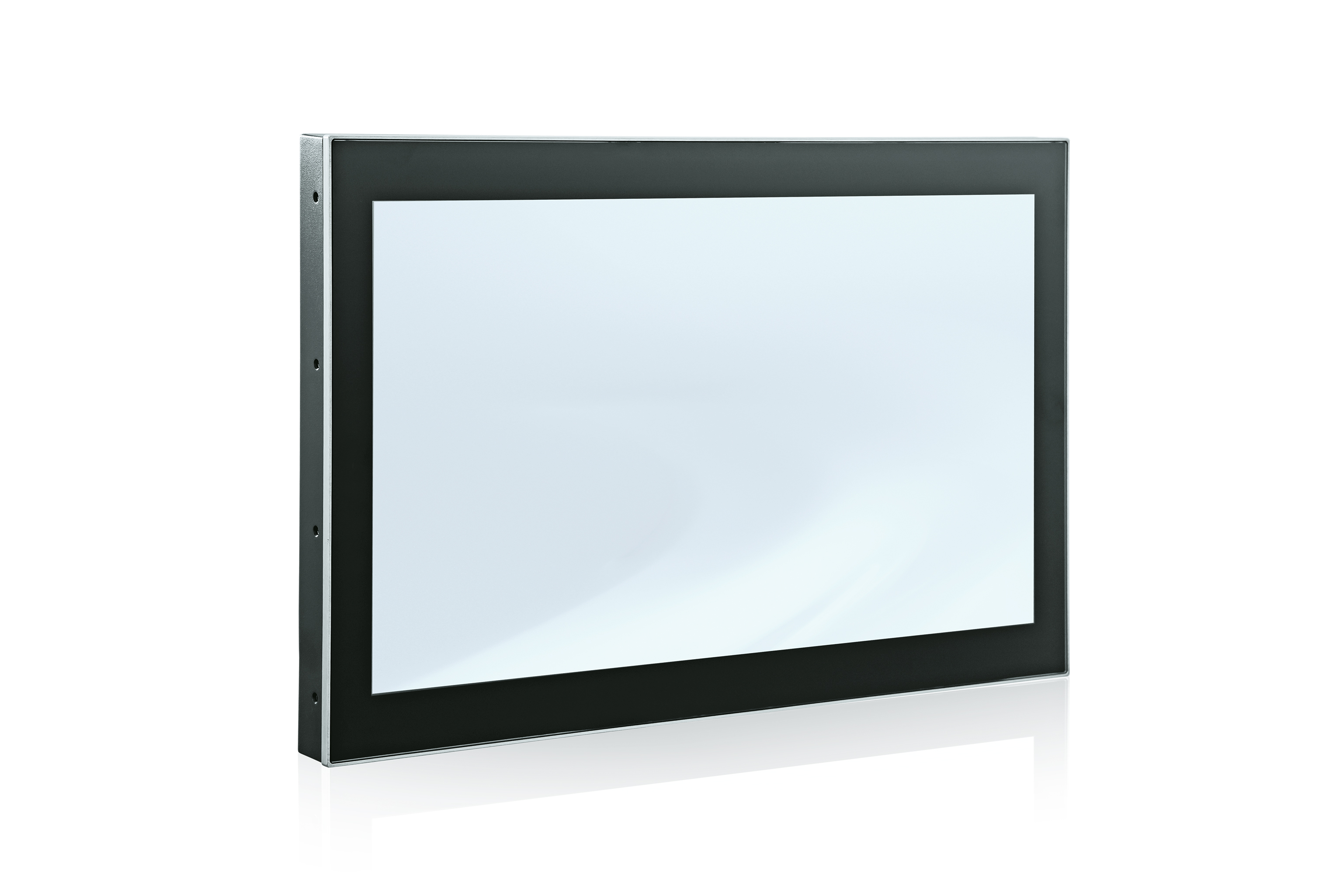

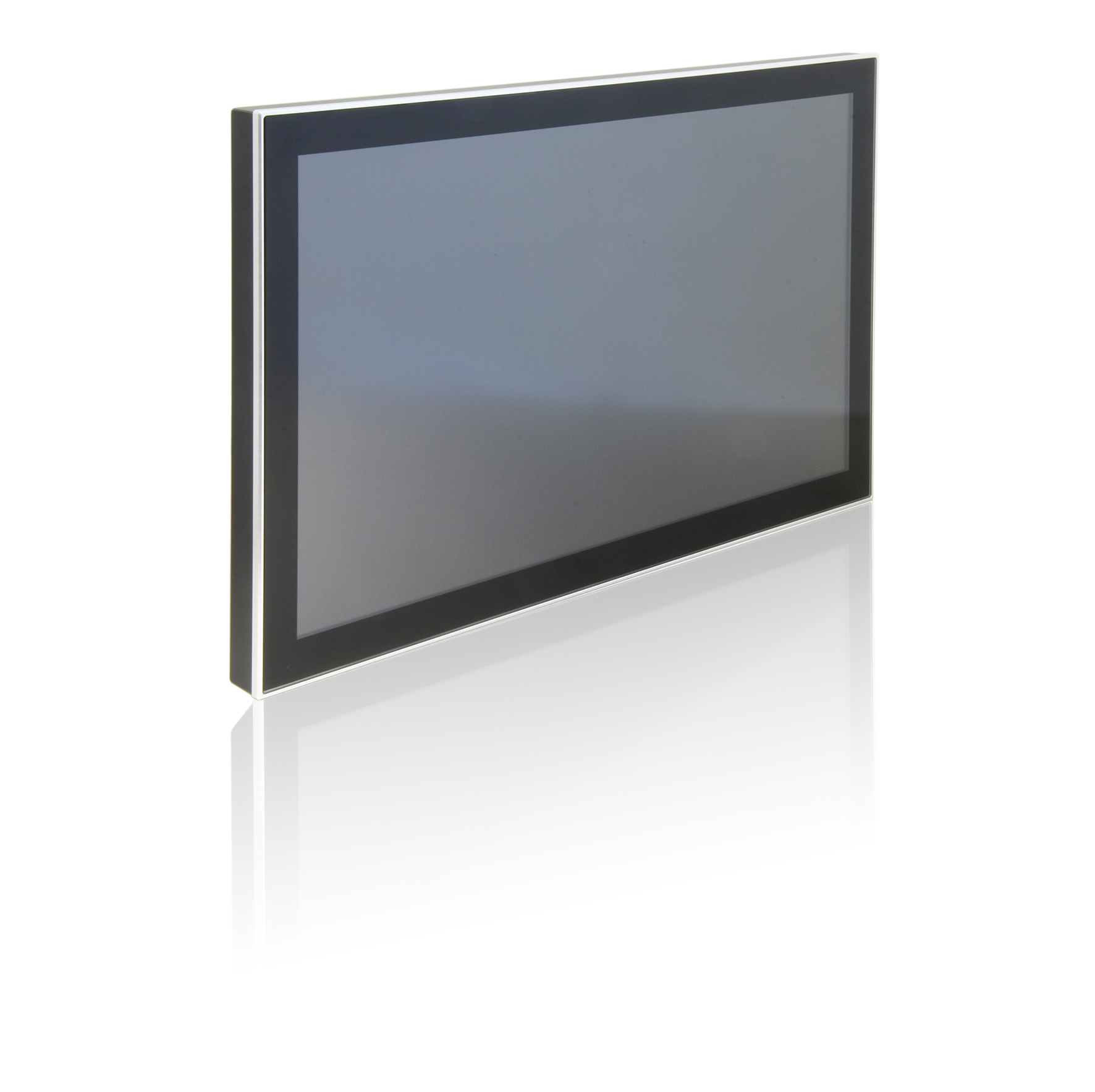

FlatClient CTR This product is legacy
Industrial Grade Panel PC for Control Rooms
Mouseover Zoom loading...
Specifications
- Display sizes 18.5” and 21.5” with ultra narrow frame
- ECO version (Intel Atom® Quad Core™) and PRO version (Intel® Core™ i5) available
- Industrial grade – robust, reliable and light weight metal housing
- Spray water and dust protected (IP54)
- Remote Multi-Display Adjustment (LPC4)
The Kontron FlatClient CTR series for control room applications offers brilliant screens with an anti-glare surface for best readability. Everything is packed in a lightweight metal housing with an ultra thin frame so that installation on a monitor stand is very easy and convenient.
Additionally the FlatClient CTR Control room is protected against spray water and dust. This ensures reliable long term operation even in polluted environments.
The FlatClient CTR comes along with a remote display adjustment interface: The so called LPC4 controller enables remote display adjustments through a standard Ethernet connection. Adjustments like brightness or contrast can be done from a remote PC and of course for single and for multiple FlatClient CTR at the same time. Setups can be created and stored which is very convenient in applications with alternating users in one workplace.
Features
| Display | 18.5”, 21.5” |
| Mounting | VESA with narrow bezel |
| Processor | Intel® Celeron® Quad Core™ J1900 Intel® Pentium® Quad Core™ N4200 Intel® Core™ i5-4300U Intel® Core™ i5-6300U Intel® Core™ i5-7300U |
| RAM | 4 GByte DDR3 SO-DIMM Intel® Core™ i5-4300U: 4 GByte DDR3 SO-DIMM Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: 4 GByte DDR4 SO-DIMM |

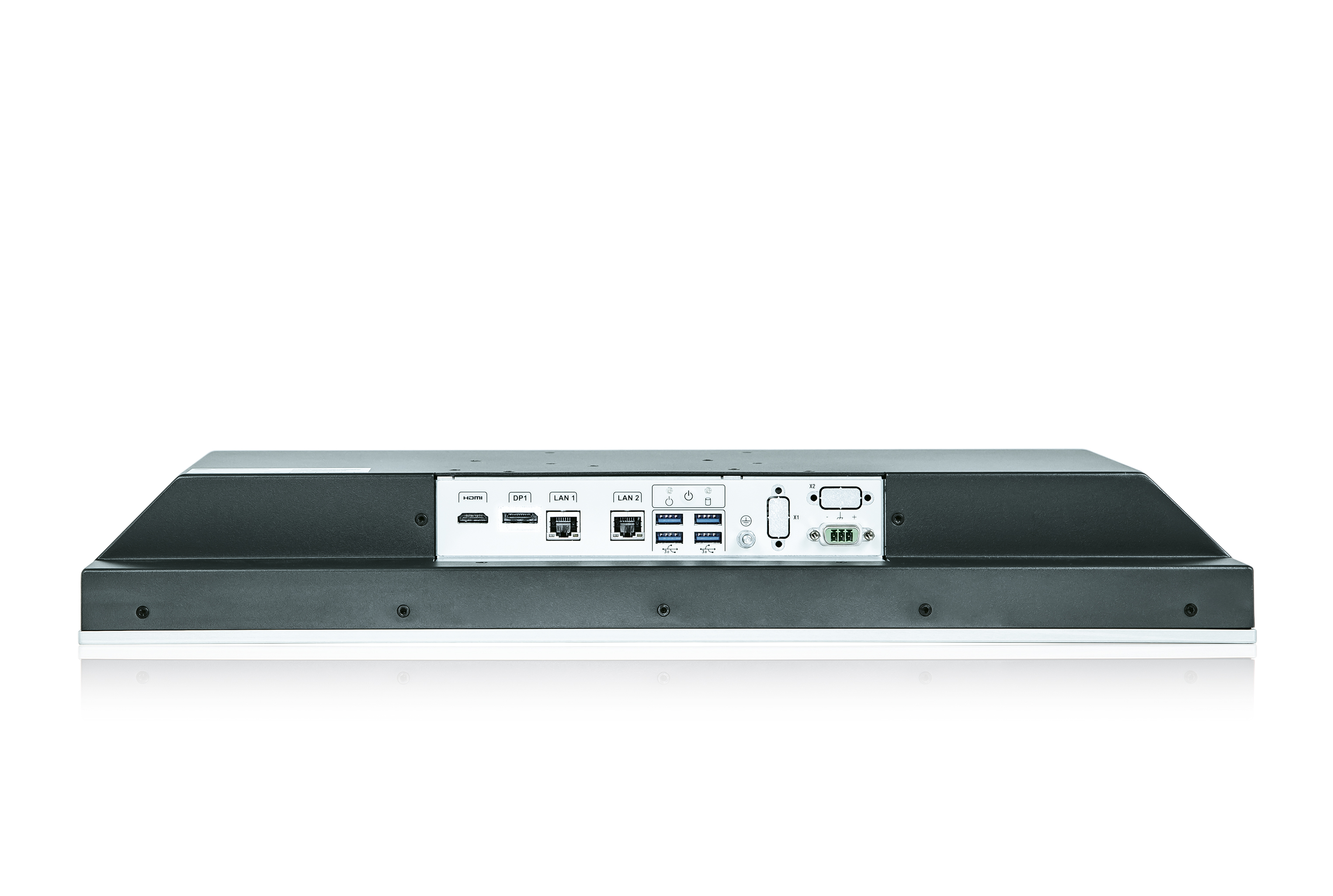

| Interface | Intel® Celeron® Quad Core™ J1900: 2x GbE, 1x HDMI, 1x VGA, 1x USB 3.0, 2x USB 2.0, 1x ETH (LPC4) Intel® Pentium® Quad Core™ N4200: 2x GbE, 1x HDMI, 1x DP, 4x USB 3.0, 1x ETH (LPC4) Intel® Core™ i5-4300U: 3x GbE, 2x Display Port, 4x USB 3.0, 1x ETH (LPC4) Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: 2x GbE, 1x HDMI, 1x Display Port, 4x USB 3.0, 1x ETH (LPC4) |
| Interface | RFID, WIFI |
| Power Supply | 16-30 VDC |
| EMC | EN55022 class B |
| Certifications | CE, cULus |
| Altitude | Up to 10.000 ft (3.000 m) |
| Shock | 15 G 11 ms duration (half sine) |
| Vibration | 10-500 Hz: 1G/3 axis |
| Operation Temperature | 0 °C to +50 °C |
| Protection Class | IP20 (up to IP54 on request) |
| Humidity | 10 %-90 % @ 39 °C, non condensing |
| MTBF | > 50.000 h |
| Cooling | Fanless passive cooling |
| Options | Other Intel® CPUs/Platforms on request 8 GByte RAM CF/SD Card Adapter SD Card Memory 4 GB, 16 GB, 32 GB, 64 GB mSATA SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB 2x COM (RS232, RS422, RS485) Audio with amplifi er (2x 3 W) CF Card MEmory WiFi RFID |
| Options | Other Intel® CPUs/Platforms on request 8 GByte RAM 16 GByte RAM (i5-6300U, i5-7300U) CF/SD Card Adapter SD Card Memory 4 GB, 16 GB, 32 GB, 64 GB mSATA SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB Intel® Core™ i5-6300U / Intel® Core™ i5-7300U: m.2 SSD 32 GB, 64 GB, 128 GB, 256 GB, 512 GB, 1024 GB (1 TB) 2x COM (RS232, RS422, RS485) Audio with amplifi er (2x 3 W) CF Card MEmory WiFi RFID |
