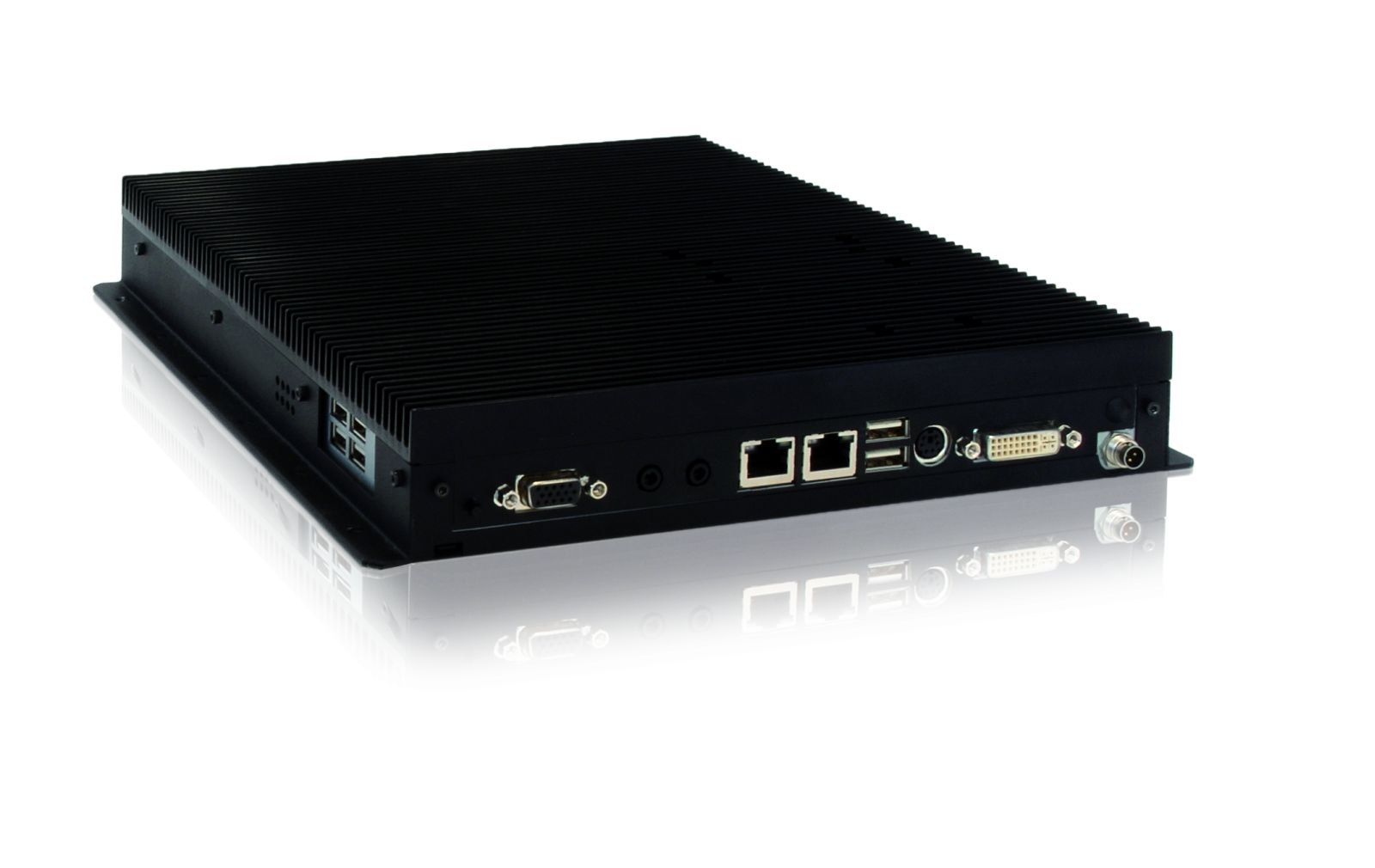

MICROSPACE® MPCF50/A This product is legacy

The fan-free, 42mm thin wall-mountable computer

Specifications

Information terminals
Digital entertainment, multimedia
Two separate video outputs
Advertising in kiosks, warehouses
For maintenance-free, 24 hour, continuous operation applications

Download Datasheet

The MPCF50/A operates on a Intel® Core™ Duo multiprocessor with 2GByte memory. This system includes all the standard interfaces (USB, LAN, DVI, VGA, sound) and is extremely thin (42mm) allowing it to fit behind every monitor. A passively cooled SATARev. 2x hard drive is built-in for mass storage. The housing is made of rugged aluminum with integrated passive, maintenance-free cooling. The MPCF50A version has 4 integrated LAN ports.

Features

CPU	Intel® Core™ Duo L2400 / Intel® Core™ Duo L7400 (2x 1.6 GHz / 2x 1.5 GHz)

SATA

320 GByte

USB

6x 2.0

Ethernet

LAN Port A: 10/100 BASE-T (RJ45 with LAN boot / LAN Port B: 3x 1 Gbit

Weight

3 kg

Dimensions (H x W x D)

42 x 310 x 256 mm

Special Features

3-D Support: DirectX9

Temperature

Temperature: +5 °C to +50°C (with HD) / Extended Temperature: -25°C to +70°C (with SSD)

Downloads

Datasheets

Datasheet MPCF50/A
[ datasheet_mpcf50-a.pdf, 626.21 KB, Aug.31.2017 ]

Manuals

MPCF50_Manual_User_Guide_V200
[ mpcf50_techmanual.pdf, 2.13 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Board Support Packages

MPCF50/A BSP Linux Vx
[ linux-945.zip, 302.69 MB, Nov.27.2013 ]

MPCF50/A BSP WinXPemb V150
[ 945_winxpe_v1-5.zip, 43.48 MB, Apr.20.2023 ]

Drivers

MPCF50/A Driver Win7 AUDIO VX
[ general-audio-driver_win7_945.zip, 17.51 MB, Jul.03.2018 ]

MPCF50/A Driver Win7 CHIPSET RAID Vx
[ general-raid-driver_win7_945.zip, 19.39 MB, Jul.03.2018 ]

MPCF50/A Driver Win7 CHIPSET VX
[ general-chipset-driver_win7_945.zip, 2.08 MB, Jul.03.2018 ]

MPCF50/A Driver Win7 COM DigitalIO V100
[ pciserialinstall1002.exe, 413.87 KB, Jul.03.2018 ]

MPCF50/A Driver Win7 DISPLAY VideoIN VX
[ general-videoin-driver_win7_945.zip, 1.02 MB, Jul.03.2018 ]

MPCF50/A Driver Win7 DISPLAY VX
[ general-vga-driver_win7_945.zip, 17.57 MB, Jul.03.2018 ]

MPCF50/A Driver Win7 NETWORK VX
[ general-lan-driver_win7_945.zip, 11.25 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP AUDIO VX
[ general-audio-driver_xp_945.zip, 25.55 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP Chipset DigitalIO Vx
[ digitalio_xp_945.zip, 659.22 KB, Jul.03.2018 ]

MPCF50/A Driver WinXP Chipset RAID Vx
[ general-raid-driver_xp_945.zip, 7.8 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP CHIPSET VX
[ general-chipset-driver_xp_945.zip, 2.08 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP Display VideoIN Vx
[ general-videoin-driver_xp_945.zip, 1.02 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP DISPLAY VX
[ general-vga-driver_xp_945.zip, 18.1 MB, Jul.03.2018 ]

MPCF50/A Driver WinXP NETWORK VX
[ general-lan-driver_xp_945.zip, 39.44 MB, Jul.03.2018 ]

Tools

MPCF50/A Tool DOS E2prom V846
[ mpcf50_techmanual.pdf-3, 2.13 MB, Nov.27.2013 ]

MPCF50/A Tool WinXP Int15 V041
[ kcc-int15_tool.zip, 1.92 MB, Nov.27.2013 ]

MPCF50/A Tool WinXP Remote V101
[ remote_945.zip, 1.19 MB, Nov.27.2013 ]

MPCF50/A Tool WinXP WOL Vx
[ wakeonlan_945.zip, 530.63 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

Upgrade 3GB with SMX945B 807406			more
Downgrade no HD 807377			more
Upgrade 1GB to 2GB RAM, 2GB RAM installed for MPCF 807364			more
Upgrade 32GB SSD, SATA2 SLC 2.5"-SSD Intel® 807418			more
Downgrade no AC-Supply, 220VAC Supply removed, add 807385			more
Option MPCF50, Mini PCI 815634			more
Option MPCF50A WLAN, Intel® 4965 AGN MiniCard, inc 809517			more
MPCFxx Mounting Kit 814056			more
