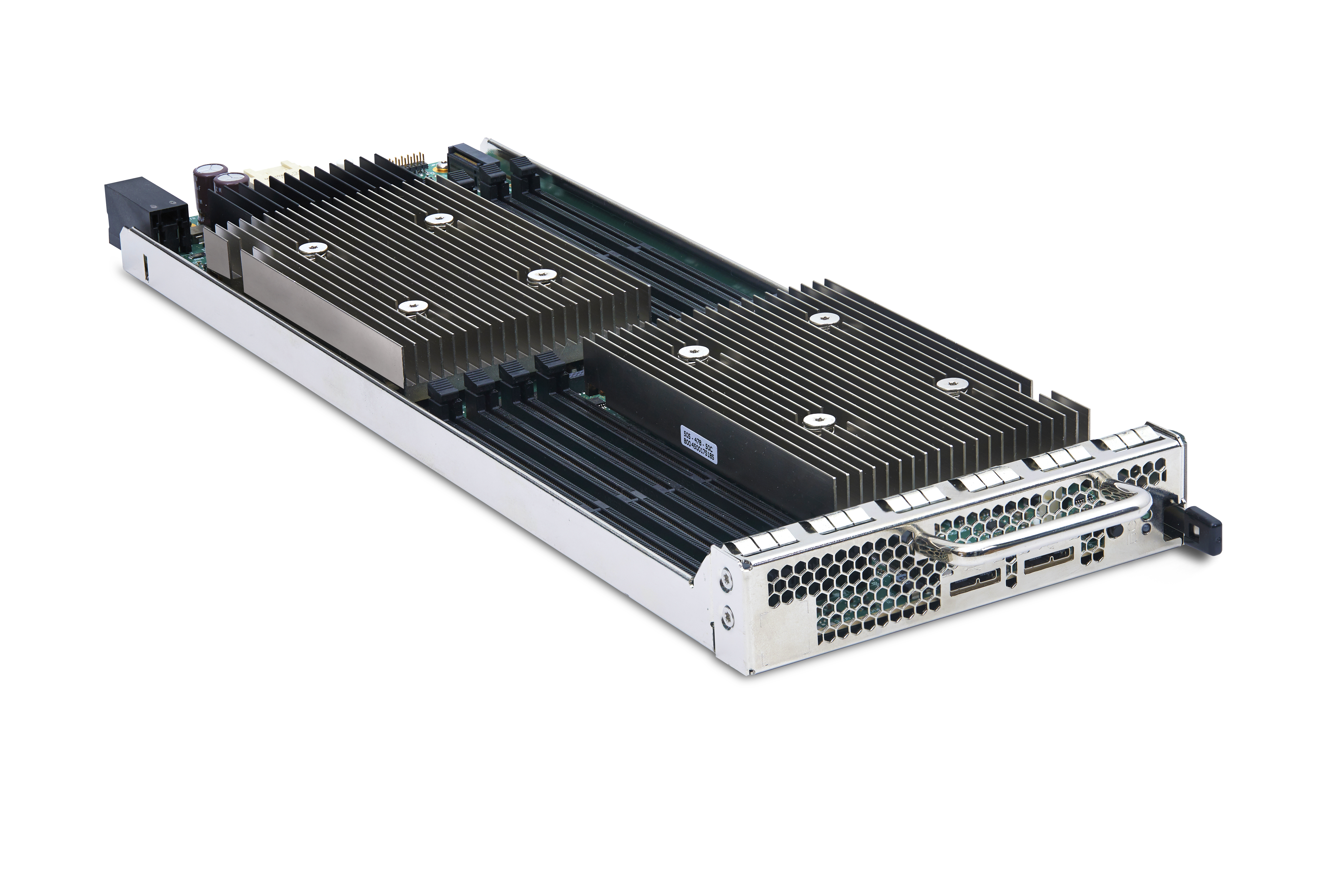

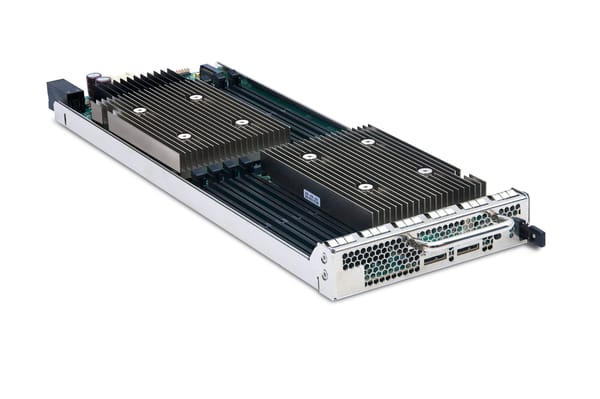

MSP8060 MODULAR SERVER

Intel dual Xeon-D processors enable high density computing with exceptional power efficiency

Specifications

Dual Intel Xeon D
576 vCPU in 2U at 21” depth
Support for SRIOV, DPDK and 6WIND
2x Logical IPMI interface for transparent OpenStack discovery
40Gbps network bandwidth per server, up to 18 servers per 2U
600Gbps full duplex total bandwidth in 2U
On board TPM

Download Datasheet

The MSP8060 Series of modular servers enables high density computing that allows a large amount of VNFs to run simultaneously on a single platform and reduce operating costs. The MSP8060 is a key modular unit that can be supported within any SYMKLOUD MS2900 or MS1300 Series enclosure to give operators the ability to mix and match various hardware technologies. Its main use cases involve intelligent edge computing services which include virtual network functions (VNFs) for vBBUs and vRAN, among others.

Downloads

Datasheets

MSP8060 MODULAR SERVER - Datasheet
[ msp8060-datasheet.pdf, 523.44 KB, Jun.19.2020 ]

Manuals

MS29xx Product Documentation Package

All-in-one platform documentation package, contains the following :

MS2900 First Startup Guide v1.1
The First Startup Guide will assist you with getting up and running on your SYMKLOUD MS2900 Platform.

PLATFORM

MS2900 Platform Quick Start Guide, v1.2
MS2900 Platform User Guide, v1.5
MS1300 Platform User Guide, v1.0 ~NEW~ 01-2019

HUB modules

MSH8900 User Guide, v1.2
MSH8910 Series User_Guide, 1.0
MSH891x CLI Reference Guide, v1.5
MSH8920 Series User Guide, 1.0
MSH8920 PicOS routing and switching configuration guide, v1.0
MSH8920 PicOS routing and switching commands reference guide, v1.0
MSU8700 (Uplink Module) Quick Reference Sheet, v1.1

PROCESSOR nodes

MSP800x Series User Guide, v1.0
MSP802x Series User Guide, v1.1
MSP804x Series User Guide, v1.2
MSP8050 Series User Guide, v1.1
MSP8060 Series User Guide, v1.0

SYSTEM MANAGER

System Monitor User Guide, v3Rev1
System Monitor API Programmer's Guide, v3Rev2

APPLICATION NOTES

MSP802x KVM Configuration, v2.0. (AN14006)
MSH8900 SFP modules, v1.0. (AN14005)
MSH8910 compatibility guide, v1.0
MS2910-Startup_use-case_VLAN-segregated_Mgmt+payload_networks (AN17002)
MS2910-Startup_use-case_physically_isolated_Mgmt+payload_networks (AN17003)
MS2910-Startup_use-case_common Mgmt+payload_network (AN17004)
MS2900-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18001)
MS2900-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18002)
MS2900-Startup_use-case_VLAN-segregated_Mgmt+payload_networks, v1.0 (AN18003)
MS2920-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18004)
MS2920-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18005)

[ symkloud_product_documentation_package-2019_01.zip, 60.15 MB, Jan.28.2019 ]
