pITX-IMX8M Quad (Industry) Not recommended for new designs

pITX-imx8m with NXP Arm Cortex-A53 Quad Core Industrial, 1300Mhz, 4GB LPDDR4, 8GB eMMC (pSLC), Ind. Temp

Specifications

Video quality with full 4K UltraHD resolution and HDR (Dolby Vision, HDR10, and HLG)
TPM2.0 and built in Hardware Security Device
M.2 Key-B (2242),
uSD/uSIM Card Combo
4GB LPDDR4 Memmory down
mini DP + HDMI as Front Connector
Linux Yocto is available
Win10 IOT Core (only on NXP Homepage)

Download Datasheet

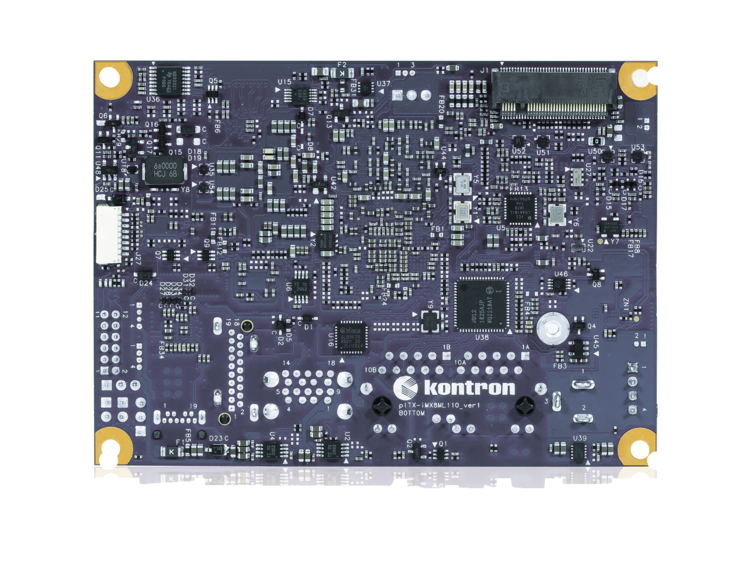

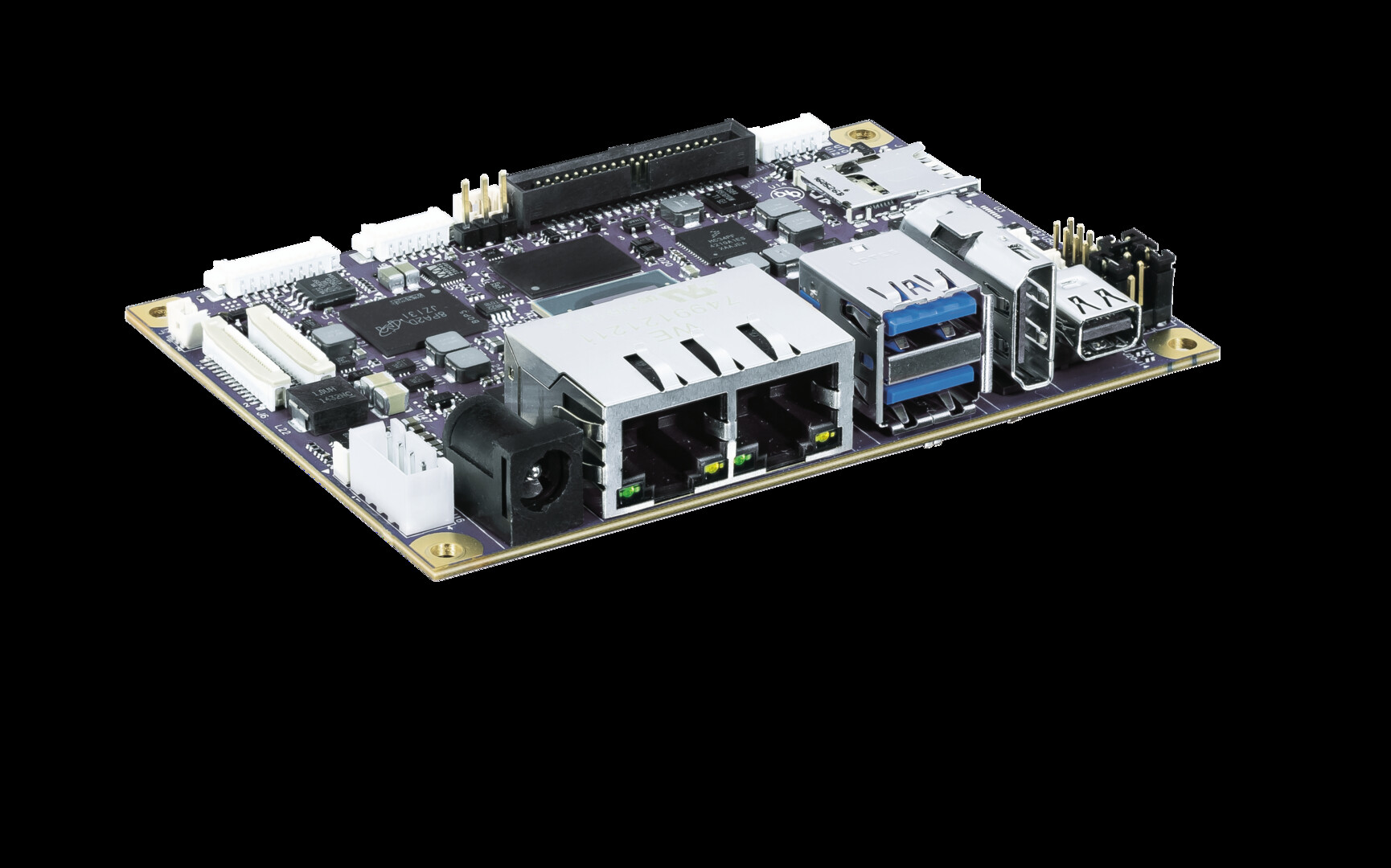

Kontron’s pITX-iMX8M motherboard features NXP’s dual or quad core CPUs based on the Arm Cortex-A53 architecture with up to 1.5 GHz. The Cortex M4 coprocessor and full 4K UltraHD resolution make the board the perfect foundation for sophisticated applications. It offers enhanced connectivity through two Gigabit Ethernet interfaces as well as superior graphics performance. Thanks to its small form factor and M.2 half-size connector, offering PCIe, USB 3.0 and a Micro SIM interface, Kontron’s pITX-iMX8M is a cost-optimized ARM SBC solution, specifically for embedded applications in the manufacturing industry, and a cross-market IoT gateway for small server solutions.

The pITX-iMX8M enables processor configurations on 8M QuadLite or 8M Dual in either industry or consumer versions. It has 32 KB L1 instruction cache and L1 data cache per core. The Cortex M4 coprocessor supports 16 KB L1 instruction cache and L1 data cache per core with 256 KB Tightly Coupled Memory (TCM). The SBC pITX-iMX8M features 4 GB LPDDR4 3200 MTps memory down storage and 64 GB eMMC Memory v5.1 Nand Flash. The soldered RAM and flash memory make the pITX8M perfectly suited even for extremely rugged applications. There are extensive display connection options like a LVDS dual channel, a mini display port and a HDMI port. Further interfaces are two USB 3.0 ports at the back, two USB 2.0 ports via the internal header, 8 GPIOs and one S/PDIF internal header, audio line-in, line-out and microphone input. Kontron offers both a Yocto Linux BSP and an Android BSP (Board Support Package) for getting the pITX-iMX8M started fast.

The pITX-iMX8M supports Kontron’s security solution APPROTECT powered by Wibu-Systems. Based on an integrated Wibu-Systems security chip (CodeMeter) combined with a specifically developed software framework, it provides IP and copy/reverse engineering protection. Kontron APPROTECT Licensing also enables new business models such as “pay per use”, demo versions for limited time periods, or activation/deactivation functions via a predetermined set of variables.

As for all embedded products, Kontron offers long-term availability of all components for the new pITX-iMX8M.

Downloads

Datasheets

Datasheet pITX-imx8m
This is the Datasheet for our upcoming new Single Board Computer with ARM Cortex A53 CPU from NXP
[ pitx-imx8m_datasheet.pdf, 1.91 MB, Jul.07.2021 ]

Manuals

pITX-iMX8M User Guide
Rev. 1.5, 10. November 2021
[ pitx-imx8m_user-guide_rev-1-5_2021-10-11_w2016.pdf, 4.68 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

pITX-IMX8M Quad (Industry) 44011-0408-13-4		pITX-imx8m with NXP Arm Cortex-A53 Quad Core Industrial, 1300Mhz, 4GB LPDDR4, 8GB eMMC (pSLC), Ind. Temp
pITX-IMX8M Quad (Commercial) 44011-0416-15-4		pITX-imx8m with NXP Arm Cortex-A53 Quad Core Commercial, 1500Mhz, 4GB LPDDR4, 16GB eMMC (MLC), Com. Temp
pITX-IMX8M Dual (Industry) 44011-0208-13-2		pITX-imx8m with NXP Arm Cortex-A53 Dual Core Industrial, 1300Mhz, 2GB LPDDR4, 8GB eMMC (pSLC), Ind. Temp
pITX-IMX8M Dual (Commercial) 44011-0216-15-2		pITX-imx8m with NXP Arm Cortex-A53 Dual Core Commercial, 1500Mhz, 2GB LPDDR4, 16GB eMMC (MLC), Com. Temp

Accessories

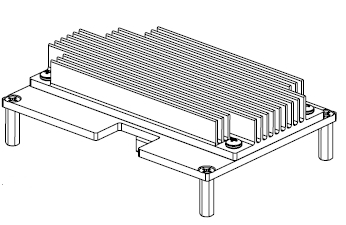

passive Cooling Solution 1064-7069		passiv Cooling Solution
Power Supply - 12V 1067-1755		lockable 12V, 60W Power Supply for pITX-APL V2.0 and pITX-imx8m
Serial Data Cable 1062-2414		Serial Data Cable
