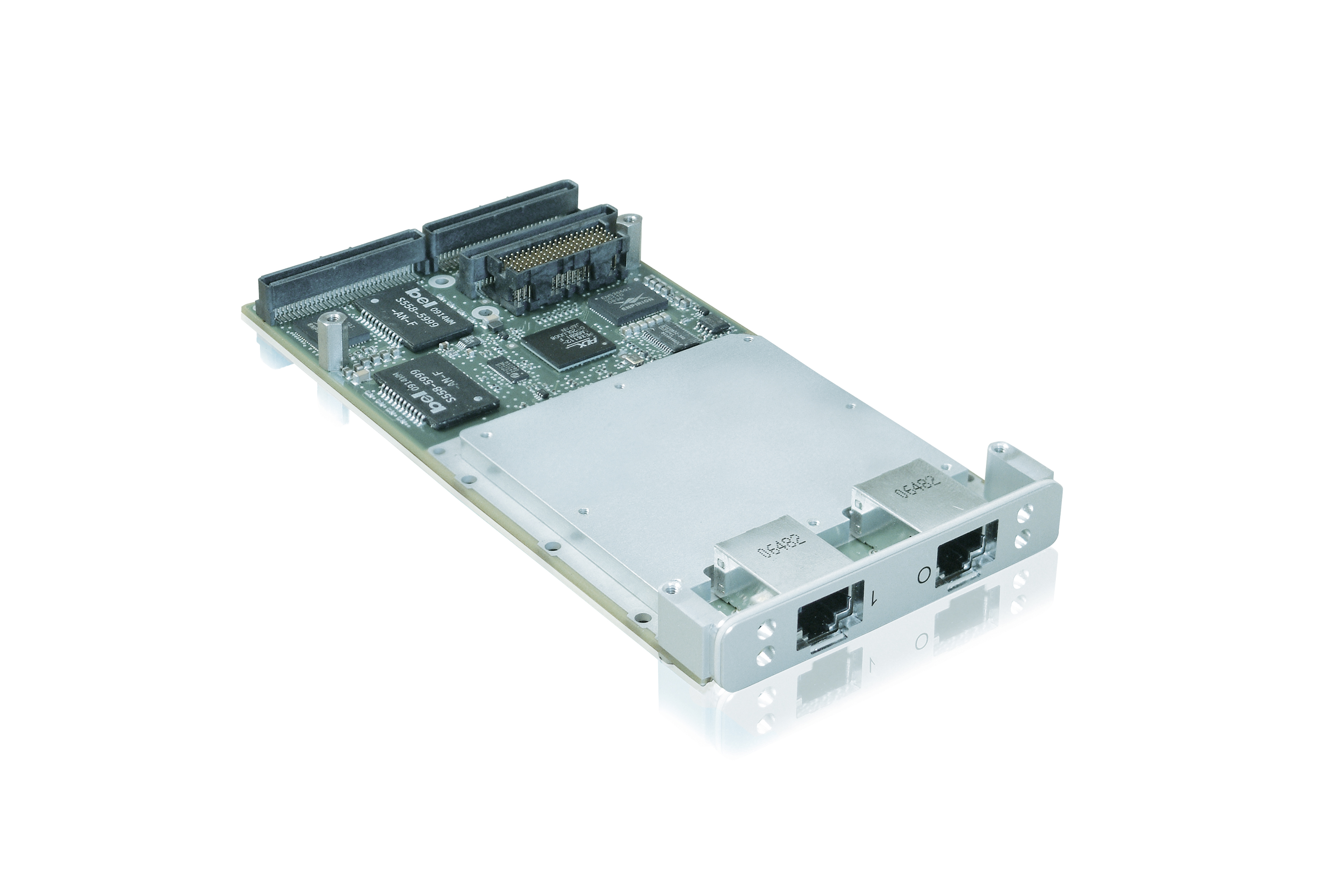

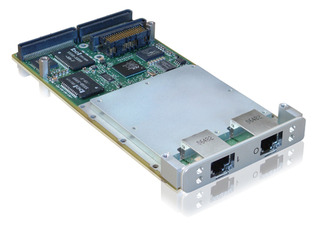

PMC-ETH2

PMC Gigabit Ethernet Mezzanine Card

This product is not recommended for new designs.

Replacement Product:
XMC401

Mouseover Zoom loading...

Specifications

PCI PMC interface to Host
Standard Air Cooled version (0 to 55°C)
Rugged Air Cooled version (-40 to 70°C)
Rugged Conduction Cooled version (-40 to 85°C)

General Purpose Long Life Ethernet PMC Mezzanine

PMC-ETH2 Ethernet Mezzanine is designed to fit any VME,
VPX or CompactPCI Single-Board Computer in the market.

PMC-ETH2 provides two 10 Base-T, 100Base-Tx, 1000Base-T Ethernet links either configurable on front RJ45 (with LED signaling) or to the rear P4.
The PMC PCI interface is compatible with 5V and 3.3V V(I/O) voltages.

Features

Bus type

32 bit/33MHz or 66MHz PCI on P1/P2

Controller

Intel® 82571

Data Rate

10 Base-T, 100Base-Tx, 1000Base-T

Frontpanel

2x RJ45

Function

1 or 2 independent Gigabit, Ethernet channels

PMC	Compatible with 5V and 3.3V I/O voltages

Rear I/O

1 or 2 channels can be routed to the back, via P4
