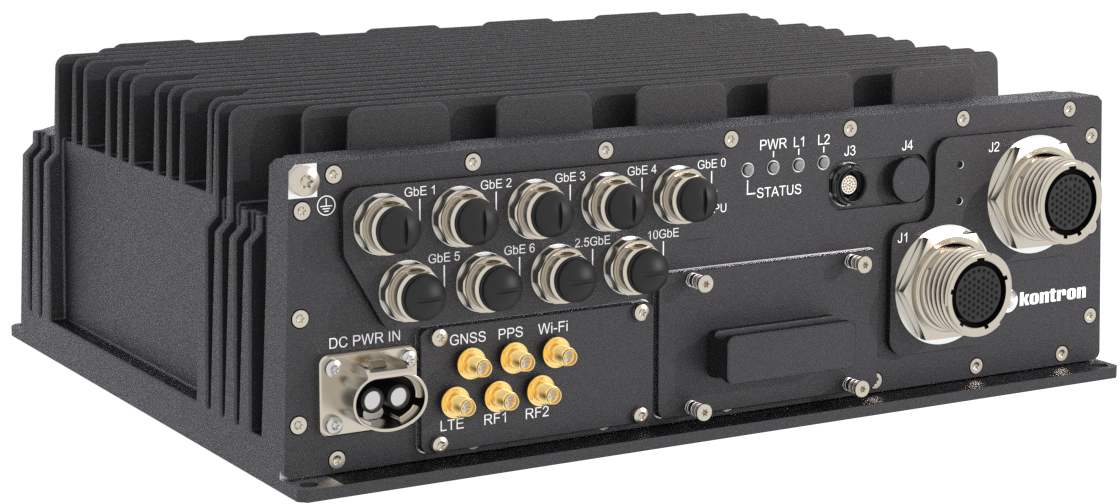

S1901 EvoTRAC

Intelligent High-Performance Platform for Heavy-Duty Machinery

Specifications

ComExpress Intel® High Performance Processor
expansion slots for multiple GPU, FPGA accelerators, or video modules
multiple I/O high speed interfaces and high capacity storage options
wireless connectivity options for cellular and wifi
ruggedized & modular platform for in-vehicle deployment

Download Datasheet

The S1901 EvoTRAC System Platform features the latest in Intel high performance processor and is designed to meet the future needs of in-vehicle for Artificial Intelligence, Deep Leaning and HPEC by providing multiple GPU or Accelerator card options. Built to accelerate the deployment of demanding applications for heavy-duty mobile machinery in construction, agriculture, trucking and mining industries, the compact platform’s flexibility is unmatched. In a single IP67 enclosure, it includes high speed I/O options such as 10GbE (cooper or fiber), USB 3.0, FAKRA connectors for RF and rich camera Interfaces. Storage capacities are met using M.2 NVME slots or high capacity 2.5" SSD slots (fixed or removable). Stay connected with the platform's optional WiFi and/or LTE cellular modem features.

Features

Dimensions (H x W x D)

4.0” x 13.0” x 10.75”

Processor

COMe-bBD7R E2 D-1539
Optional: COMe-bBD7R E2 D-1559
Others on project base

Ports

7x 1GbE | 1x 2.5GbE | 1x 10GbE with PTP
4x POE available on project base

PCI Express

2x mPCIe internal expansion ports

USB	3x USB 2.0 external ports 1x USB 3.0 internal port for data retrival Optional: 2x USB 3.0 external ports

Wireless connectivity

Optional LTE Cellular (M.2) connectivity | WiFi (mPCIe) connectivity

Serial

4x RS232, 2x RS232 or RS485/422, 2x RS485/422

Power Consumption

Input Voltage: 9 – 36VDC (24VDC nominal on 500W PSU)
Power Consumption: up to 500W (configuration dependent)

Cooling

Passive Conduction, Fan Assisted or Liquid Cooled (configuration dependent)

Operating System

Linux Ubuntu 20.04, LTS, 64-Bit (installed)

Downloads

Datasheets

EvoTRAC-S1901
[ evotrac-s1901_datasheet-25082021.pdf, 689.91 KB, Aug.27.2021 ]

Manuals

S1901 EvoTRAC User Guide [restrictions apply]
[ s1901-evotrac_user_guide_v4-0.pdf, 14.77 MB, Jun.26.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

Autonomous Systems Safety and Efficiency: Resilience in Extreme Environments [restrictions apply]

Firmware

S1901 EvoTRAC BIOS
S1901R127
[ s1901_evotrac_r127.zip, 9.78 MB, Jun.13.2024 ]

S1901 EvoTRAC FPGA
1.5.08006F26
[ s1901_fpga-1-5.zip, 2.97 MB, Jun.13.2024 ]

S1901 EvoTRAC NOS
NOS-1.35.01821ba5
[ s1901-nos-1-35-01821ba5.zip, 32.64 MB, Jun.13.2024 ]
