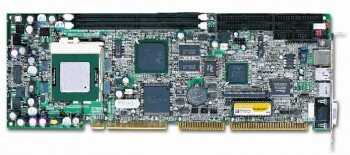

SBC-815ET-VER This product is legacy
Intel 815E Based PICMG SBC with VGA and Fast Ethernet
Specifications
- Socket 370 Celeron® or Pentium® III processor up to 1.26GHz
- 133/100/66MHz FSB
- Intel 815E chipset w/ integrated 3D video
- On-board 10/100Base-T Ethernet
- Up to 512MB PC100/133 SDRAM memory
- Supports Four Ultra DMA/33/66/100 IDE
- Compliant with PCI Bus spec V2.1
- Full support of ATX functionality with WOL, Modem-Ring-On, K/B & Mouse wake-up
- ISA64 driving capability
- DiskOnChip Flash Disk support
The SBC-815ET-VER is a full-size PICMG SBC card that supports Intel® Pentium® III or Celeron processors (up to 1.26GHz) with on-die 512k L2 pipelined burst cache. It also supports up to 512MB memory and high performance PCI Ultra DMA33/66/100 IDE.
Onboard support for three Universal Serial Bus (USB 1.1) ports, serial/parallel ports and a floppy interface are standard. This full-sized SBC also provides access to ISA bus peripheral modules such as LAN and VGA controllers, etc.
A built-in Intel Fast Ethernet controller provides fully compatible 10/100Mbps network capability.
Onboard support for three Universal Serial Bus (USB 1.1) ports, serial/parallel ports and a floppy interface are standard. This full-sized SBC also provides access to ISA bus peripheral modules such as LAN and VGA controllers, etc.
A built-in Intel Fast Ethernet controller provides fully compatible 10/100Mbps network capability.
Downloads
Datasheets
SBC-815ET-VER Datasheet
[ sbc-815et-ver_datasheet.pdf, 167.68 KB, Aug.31.2017 ]
Manuals
SBC-815ET-VER User's Guide
[ sbc-815et-ver_ug.pdf, 621.82 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Quick Reference Guide
SBC-815ET-VE Family Quick Reference
[ sbc-815et-ve_quickref.pdf, 149.55 KB, Nov.27.2013 ]
