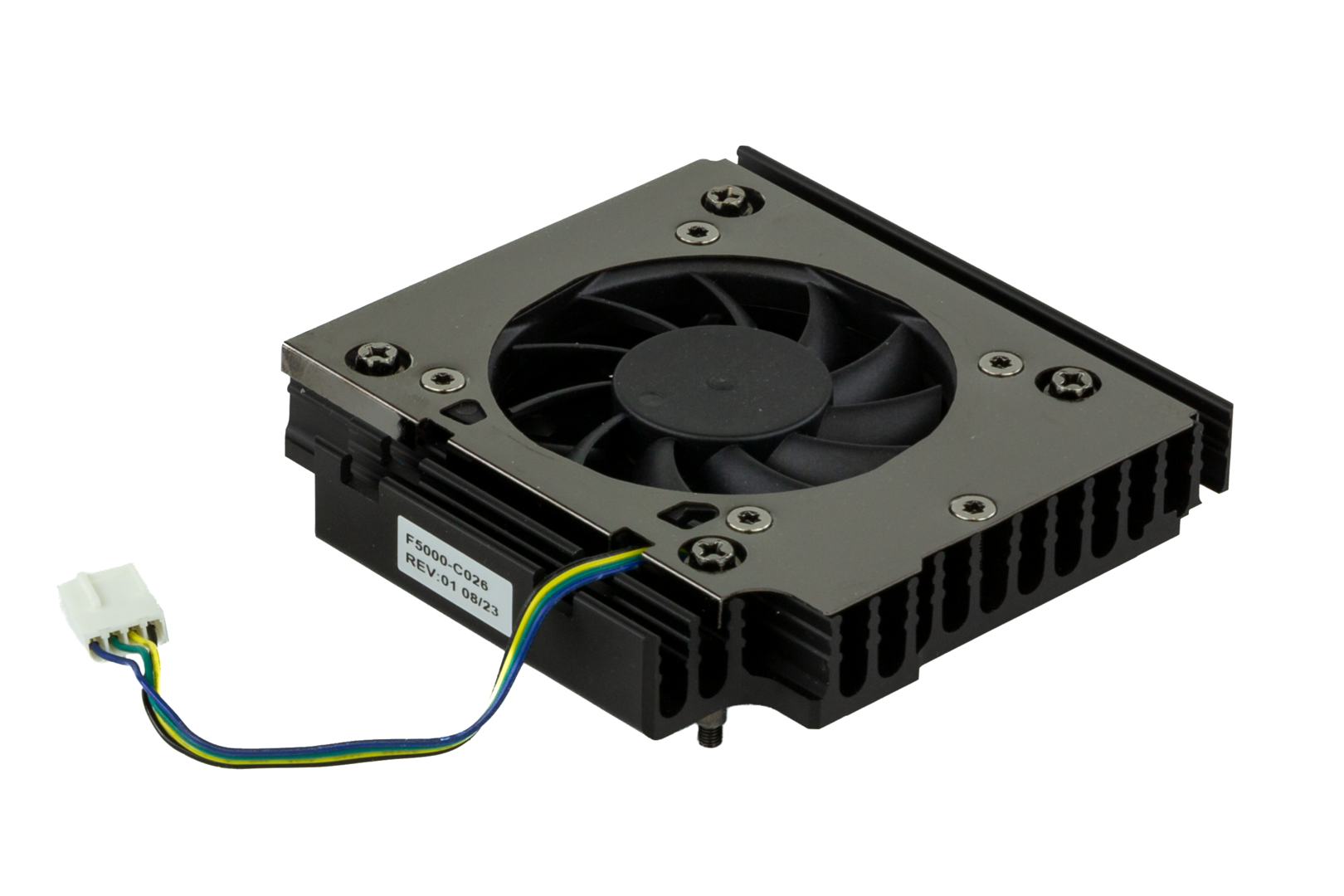

Slim Active Heatsink mSTX/mITX ADL-N 15W New

Slim Active Heatsink mSTX/mITX ADL-N 15W
Specifications
  • Latest DDR5 memory technology for best-in-class system performance
  • Intel® UHD Gen12 Graphics - driven by Intel® Xe architecture (within SoC)
  • Up to 2x DisplayPort 1.4 and 1x DisplayPort via USB Type-C
  • Dual Channel LVDS (24 Bit) and eDP V1.4b (4 K) onboard
  • Designed for fanless operation
Download Datasheet Buy now

The Industrial Motherboard K3921-N mSTX is based on the latest Intel® Core™ i3 and Intel® Processors series (Alder Lake N) with powerful UHD Gen12 graphics using Intel® Xe architecture. There are two DisplayPorts 1.4, one DisplayPort via front USB-Type-C plus onboard connectors for Embedded DisplayPort and Dual-Channel 24bit LVDS panels. Three independent displays with up to 4K display resolution (2x 4K + 1x FHD) are supported. The K3921-N is equipped with two M.2 (Storage and Wifi) connectors and in addition to this offers many other connectivity options like GPIO, two COM ports and USB 3.2 Gen2. Designed and approved for 24/7 continuous operation and an enhanced temperature range up to 60 °C the K3921-N is applicable in many vertical markets.



Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership



Downloads

Datasheets

Datasheet K3921-N mSTX
[ k3921-n_mstx.pdf, 1.19 MB, Jul.11.2024 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

SMARTCASE™ S501
SMARTCASE™ S501 Chassis Kit Solution for K3921-N & K3921-H mSTX more
AC Adapter
S26361-F5000-P006
AC Adapter 19V / 3.42A, 65W - w/o power cord
COM Cable short w/o bracket
S26361-F5000-K007
COM Cable short w/o bracket w/o slot bracket, length = 120mm; new 2mm pitch internal connector
WLAN Kit for SMARTCASE™ S511
S26361-F5000-W005
WLAN Kit for SMARTCASE™  S511 left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis
Wall Mount Bracket for SMARTCASE™ S511
S26361-F5000-X001
Wall Mount Bracket for SMARTCASE™ S511 2x Bracket per chassis incl. screws
VESA mount SMARTCASE™ S5xx
S26361-F5000-X002
VESA mount SMARTCASE™ S5xx "E-Line bracket"
DC-In Holder for SMARTCASE™ S511
S26361-F5000-X003
DC-In Holder for SMARTCASE™ S511 Holder incl. screws
DP 20P M to HDMI Adapter
F5000-A007
DP 20P M to HDMI Adapter DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
Slim Active Heatsink mSTX/mITX ADL-N 15W
F5000-C026
Slim Active Heatsink mSTX/mITX ADL-N 15W Slim Active Heatsink mSTX/mITX ADL-N 15W
Slim passive cooler mSTX ADL-N 10W
F5000-C024
Slim passive cooler mSTX ADL-N 10W Slim passive cooler mSTX ADL-N 10W
M.2 Dual SATA Module
F5000-M004
M.2 Dual SATA Module M.2 Dual SATA Module
