SMARC Evaluation Carrier
SMARC Evaluation Carrier
This product is not recommended for new designs.
Mouseover Zoom loading...
Specifications
- Evaluation Carrier Board for ultra-low power ARM and SoC-based Computer-on-modules
- Broad range of interface options for design development flexibility
- Dual power options for mobile and fixed base applications
- Compliant with SMARC (Smart Mobile Architecture) specification by SGET

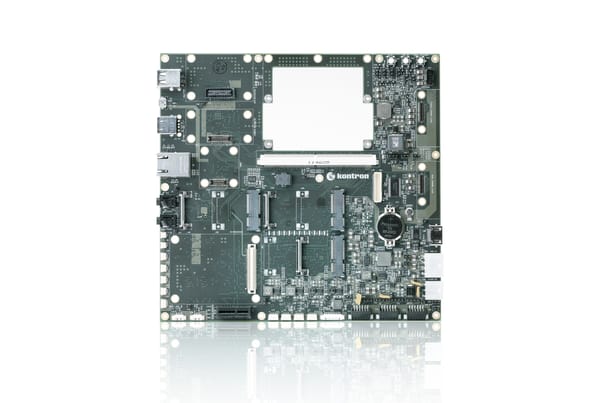

SMARC Evaluation Carrier
The SMARC Evaluation carrier board is designed to allow embedded application developers to get up and running quickly on the SMARC modular platform, giving them a head start on the total system design. Simply select the SMARC module best suited for your application needs, install the module and you are ready to get started. The
SMARC Evaluation Carrier is compliant with the SMARC specification and supports a broad range of interface options dedicated for low power applications including Gigabit Ethernet support, SIM card socket, Kontron LVDS adapter, and multiple mini-PCI Express interface options.
Features
| Supported Modules | Accepts SMARC™ Modules 82mm x 50mm and 82mm x 80mm |
| Dimensions (H x W x D) | 210mm x 200mm |
| Graphics | HDMI Parallel LCD port LVDS KLAS Adapter – 24 bit color packing, single and dual channel LVDS |
| Ethernet | GbE port with integrated magnetics |
| Audio Controller | On-board I2S Audio Codec |
| Hard Disk | SATA MO-300 site Micro SD Card slot eMMC Mezzanine site |
| Humidity | 93% relative Humidity at 40°C, non-condensing |
| PCI Express / PCI support | PCIe slot Mini-PCIe sites (2) with shared SIM slot |
| Power Supply | Lab bench power input option – 3.0V to 5.25V input voltage range Support for Li-Ion batteries and on-board charging circuit |
| Serial | RS232 support for all 4 SMARC serial ports 2x CAN |
| USB | 7x USB USB OTG micro AB connector USB R/A Type A connector |
| Additional | RTC backup power sources – Lithium coin cell socket and SuperCap option On-board accelerometer SIM card support |
Downloads
Datasheets
SMARC Evaluation Carrier
(Release Candidate)
[ datasheet_smarc-eval-carrier.pdf, 856.8 KB, Aug.31.2017 ]
