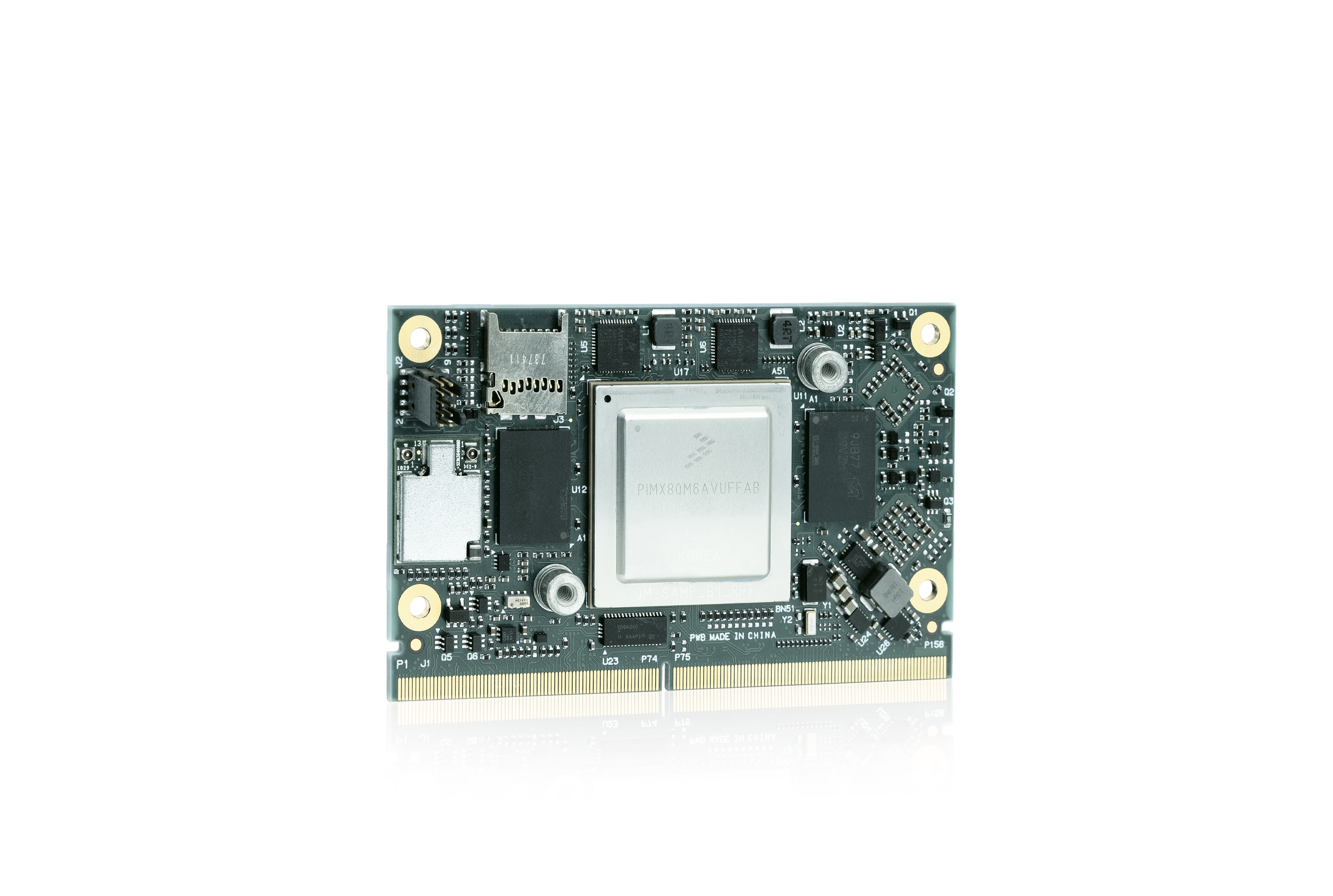

SMARC-sAMX8
SMARC 2.0 with NXPs i.MX8 Processor
Mouseover Zoom loading...
Specifications
- Supports Quad-Core Cortex A-53 with additional M4 and A72 Core
- Up to 8 GB LPDDR4 memory down
- Hardware virtualization
- 3 x 1080p displays or single 4K screen
- Option of extended temperature -40°C to +85°C
The SMARC module SMARC-sAMX8 based NXP i.MX8 processors extends Kontron’s portfolio of modules. The SMARC-sAMX8 is a high performance compute module designed for applications requiring extensive graphics processing. The Freescale / NXP Multi-core 32 and 64 bit ARM processors have the embedded hardware IP blocks for vision systems, as well as the processing power and interfaces needed. Offered in four quad core options: Three pin compatible, scalable SKUs and one custom SMARC pinout SKU (-1 LVDS interface, + 3 SPI interface + 1 CAN interface).
The SMARC-sAMX8 is a great fit for a wide range of low power embedded applications such as:
- Robotics and Motion Control
- Warehouse Inventory Management
- Anamoly Detection
- Automotive Infotainment
- Smart Home
- Agriculture
- Parcel Delivery Systems
- UAV
Features
| Form Factor | Smart Mobility ARChitecture (SMARC) Module 82 mm x 50 mm |
| Processor | NXP i.MX8 |
| Main Memory | LPDDR4 @ 1600 MHz (no ECC) |
| Flash | 512 MB SPI NOR flash |
| BIOS | U-Boot Bootloader, Flash for Bootloader |
| EEPROM | 24C32, 4k x 8 (32 kbit) |
| Display | DISPLAY LVDS 18/24-bit LVDS RGB, Resolution: up to 1920x1080/60Hz, Single/Dual Channel DISPLAY DP/HDMI HDMI/DisplayPort from SoC |
| PCI Express | 3x PCIe lanes / 1 SATA (Shared with 1x PCIe) |
| Ethernet Controller | 2x GBE PHY AR8031 |
| Wireless connectivity | Optional Wifi/Bluetooth module M.2 1216 |
| Watchdog | CPU internal watchdog, configurable timeout counter |
| USB | USB HUB USB4604 for 4x USB 2.0 ports on SMARC Connector |
| Real Time Clock | High accuracy (+/-3 ppm), low power, RV-8803 |
| Storage | 8 to 64 GB eMMC 5.1 Flash (option) |
| H/W STATUS MONITOR | Voltage, Temperature monitoring |
| Security | iMX8 features |
| Operating System | Linux Yocto |
| Power Consumption | Maximum Power consumption of the board is measured to 10.5W (Quad Core) |
| Input Voltage | Wide range VCC 3.0 V to 5.25 V |
Downloads
Use Cases
The tough choice of Processors
Solving challenges in selecting computer boards & modules for IIoT projects. In this article we support you to make the right choice for your application: To find the best balance of processing power, graphics capabilities and connectivity on the one hand and size, power consumption, and cost on the other.
[ artikel_processor-choice_eu-1-.pdf, 4.42 MB, Apr.20.2023 ]
A SMARC Approach to Medical Device Life Extension
A medical manufacturer maximizes investment in essential system with retrofit Kontron Computer on Module solution upgrade.
[ uc_medical-smarc_final.pdf, 8.69 MB, Apr.20.2023 ]
Datasheets
SMARC-sAMX8X datasheet
[ smarc-samx8_us_datasheet.pdf, 2.21 MB, Aug.08.2024 ]
Manuals
SMARC-sAMX8 User Manual
[ smarc-samx8_userguide_rev1-2_2022-04-22.pdf, 2.91 MB, Jun.16.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
SMARC™ module 2.1
[restrictions apply]
This paper discusses how SMARC™ module is continuing to evolve to ensure system designers, SIs and OEMs can meet the ongoing challenges of cost-effectively deve-loping next generation small form factor IoT- andAI-enabled embedded systems.
Modules and Motherboards WP [restrictions apply]
Robotic-Assisted Surgery White Paper [restrictions apply]
Tech Spec Sheet
Tech Specs SMARC
[ tech-spec_smarc.pdf, 5.3 MB, Apr.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
SMARC sAMX8 HEATSPREADER 5160685-1 |
SMARC sAMX8 HEATSPREADER |
