SMARTCASE™ S730 New

Chassis Kit Solution for D3713-V/R, D3723-R & K3931-N mITX

Specifications

Compact Design with Dual Front USB 3.2 Gen1
250 x 52 x 191 mm
Low Profile Extension Slot
Option for Internal 65W PSU Module
Horizontal and Vertical Stand plus Wall Mount Bracket

Download Datasheet

The SMARTCASE™ S730 is designed for the D3713-V/R & D3723-R mITX motherboard family, which support the AMD Ryzen™ Embedded V/R1000 & R2000 processors series as well as the new K3931-N based on Intel Alder Lake N processors. Like the whole SMARTCASE™ family, the S730 appears in a classy and clear design and now even includes a dual front USB 3.2 Gen 1 connector for easier handling. In addition, it can be cooled actively or passively. With a wide range DC-in from 8 to 34V, this kit solution meets requirements of many different applications. The SMARTCASE™ S730 can be used in horizontal or vertical mode.

Downloads

Datasheets

Datasheet Smartcase™ S730
[ ds_smartcase_s730.pdf, 350.39 KB, Nov.07.2023 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

DP 20P M to HDMI Adapter F5000-A007		DP 20P M to HDMI Adapter, up to 4k @ 60 Hz
Passive Cooler AMD FP5 15W S26361-F5000-C019		Passive cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5
Active Cooler AMD FP5 54W S26361-F5000-C020		Active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5
Active Cooler AMD FP5 35W S26361-F5000-C021		Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5, suitable for SMARTCASE™ S711 chassis!

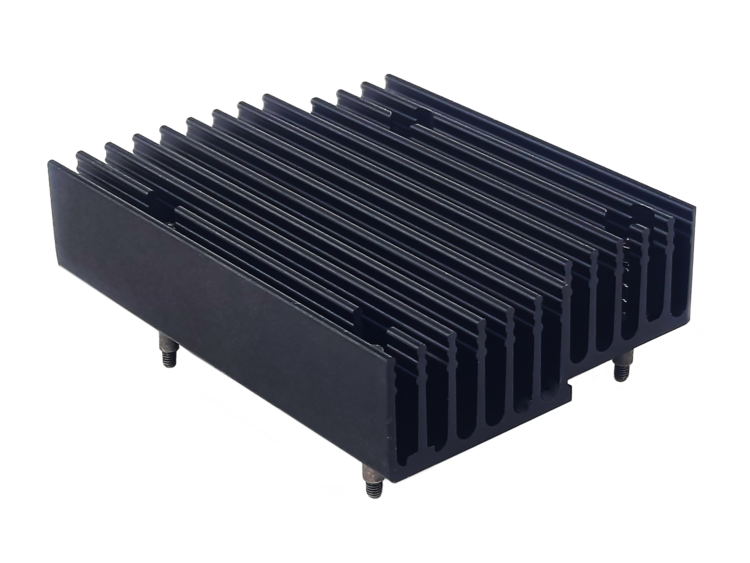

Passive Cooler mITX ADL-N 15W F5000-C025		Passive Cooler mITX ADL-N 15W
Slim Active Heatsink mSTX/mITX ADL-N 15W F5000-C026		Slim Active Heatsink mSTX/mITX ADL-N 15W
COM Cable short w/o bracket S26361-F5000-K007		w/o slot bracket, length = 120mm; new 2mm pitch internal connector
COM Cable "long" S26361-F5000-K010	$COM Cable \$	with fullsize slot bracket

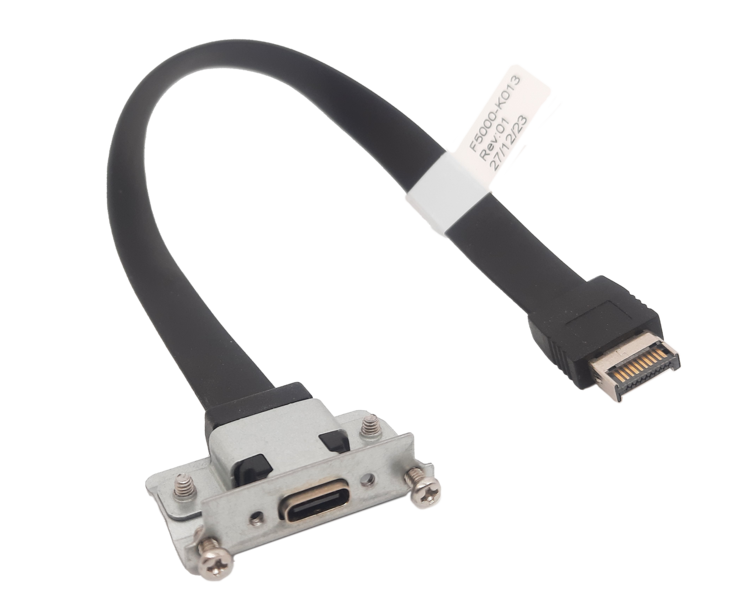

USB Type-C Extension (Key-A) S26361-F5000-K013		USB3.2 Gen2, length = xx mm, max. load 5V/xxx mA designed for K393x-N and related SMARTCASE™ S730
Mini-PCIe to M.2 2230 Converter for WLAN/BT S26361-F5000-M003		all Boards with fullsize Mini-PCIe socket
Internal PSU for chassis Kit S26361-F5000-P004		AC Adapter, 12V / 5.4A, 65W, low profile extension card format
AC Adapter S26361-F5000-P006		19V / 3.42A, 65W - w/o power cord
Risercard S26361-F5000-R006		1 x PCIe x4
TPM Upgrade Module S26361-F5000-R012		TPM V2.0 (for CoffeeLake; SPI Interface)
M.2 2230 WLAN Module S26361-F5000-W003		WLAN Module Intel 9260 NON VPRO only
