ThinkIO-P This product is legacy

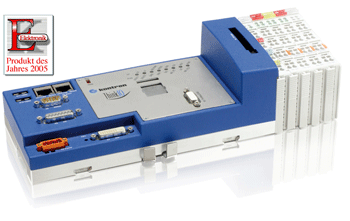

ThinkIO-Premium DIN Rail PC, up to 1.4 GHz Intel® Pentium® M
Specifications
  • up to 1.4GHz passive cooling, 1GB SDRAM, 2 GB Flash internal, external CF socket
  • EMC class B design
  • extended temperature option: 1.0 GHz max. range: -40°C...+70°C
  • retain memory and RTC, watchdog, 2xdigital In, 2xdigital out, RUN/STOP switch, reset, LEDs
  • 2x10/100 Base-TX, 2xUSB 2.0, 1xRS232 and 1xDVI-I
  • Modular-I/O Option
  • Profibus-DP, CANopen or DeviceNet Option
  • Dimensions / mm (w x h x d): 224 mm x 100 mm x 70 mm
  • Embedded realtime Linux, Windows XP embedded
  • IEC 61131-3, visualization, webserver

Rugged design even for harsh environments

The ThinkIO-P is a powerful, flexible and scalable DIN Rail mount Industrial PC (IPC) or SoftPLC in a very compact and robust design for industrial applications, even in harsh environments. The extended temperature version is a suitable platform for train, ship or industrial applications where 0°C...+55°C standard temperature range is insufficient.

Features

Mounting DIN Rail
Weight ~ 1.100 g
CPU Intel® Celeron® M 600 MHz to Intel® Pentium® M 1.4 GHz
DRAM 256 MByte standard, up to 1 GByte max.
Flash 128/512 MByte/2 GByte onboard standard, external CF socket
NVRAM 1 MByte standard, battery backed
I/O Standard 2x LAN 10/100, 2x USB 2.0, RS232, DIV-I, 2x digital in, 2x digital out, watchdog relay out, RUN/STOP switch, reset, RTC
Dimensions (H x W x D) 100 mm x 236 mm x 65* mm (* from upper edge of DIN 35 rail)
Power Supply 24 V DC(-25%/+30%) / typ. 600 MHz: 17 W, 1.4 GHz: 24 W, 1 GHz: 16 W
Options WAGO-I/O System, Profibus-DP Master/Slave, CANopen Master/ Slave, DeviceNet Master/Slave (DeviceNet only with BSPs)
Cooling passive, no fan
Protection Class IP 20
Humidity rel. 93% RH at 40°C, non-condensing
Operating System Embedded real-time Linux 2.4/RTAI distribution independent (preinstalled), Embedded Linux 2.6 distribution independent, Windows XP embedded, IEC 61131-3 SoftPLC CoDeSys on Linux 2.4/RTAI
Standard Emission: EN55022/B, EN61000-6-3, DNV SfC/B, FCC part 15/B, / Immission: EN55024, EN61000-6-2 / Electrical Safety: EN60950-1 / Temperature Cold: IEC60068-2-1 / Temperature Dry Heat: IEC60068-2-2 / DIN 35 Rail: EN50022
Operation Temperature 0°C to +55°C, extended temperature (Intel® Celeron® M 1 GHz): -40°C to +70°C max.

Downloads

Datasheets

ThinkIO-P Datasheet
ThinkIO-P Datasheet
[ thinkio-p_datasheet.pdf, 220.94 KB, Aug.31.2017 ]

Manuals

ThinkIO-P Manual - Quick Start Guide
[ thinkio-p_quick_start_guide.pdf, 396.76 KB, Sep.11.2017 ]

ThinkIO-P Manual - Installation Guide
[ thinkio-p_installation_guide.pdf, 605.57 KB, Sep.11.2017 ]

ThinkIO-P Manual - Hardware Reference Guide
[ thinkio-p_hardware_referenceguide.pdf, 5.42 MB, Sep.11.2017 ]

ThinkIO-P Manual - Programming Assistance Guide Fieldbusses
[ thinkio-p_programming_assistance_guide_fieldbusses.pdf, 212.39 KB, Sep.11.2017 ]

ThinkIO-P Manual - Programming Assistance Guide Codesys
[ thinkio-p_programming_assistance_guide_codesys.pdf, 1.29 MB, Sep.11.2017 ]

ThinkIO-P Manual - Programming Assistance Guide Windows XP Embedded
[ thinkio-p_programming_assistance_guide_win_xpe.pdf, 857.19 KB, Jun.26.2020 ]

ThinkIO Surge Filter Holdup Module
24V surge filter and holdup module for all ThinkIOs. >10ms hold up time acc. IEC61131-2/severity level PS2and EN50155/S2.
[ 1036-0458_10_sk-man-tio-surge-holdup-ug.pdf, 193.72 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

BIOS

BIOS [restrictions apply]
[ thinkio-p_ix0108.zip, 3.04 MB, Nov.27.2013 ]

Drivers

Windows XP Embedded Board Support Package [restrictions apply]
[ thinkiop_r12_wxpe.zip, 10.2 MB, Jul.03.2018 ]

Windows XP Embedded Readme [restrictions apply]
[ readme_thinkio-p_r12_wxpe.txt, 6.58 KB, Jul.03.2018 ]

Windows XP Embedded Errata [restrictions apply]
[ errata_thinkio-p_r12_wxpe.rtf, 1.84 MB, Jul.03.2018 ]

Technical Info

ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]

Application Notes

Howto compile Qtopia 4.4 for the Linux BSP
[ readme_qtopia_core_appnote.pdf-3, 71.11 KB, Nov.27.2013 ]

Linux

Linux BSP for ThinkIO-Duo and ThinkIO-P with Realtime Kernel (R12) [restrictions apply]
This Kontron BSP is designed to get customers started immediately with application development instead of first getting involved with BSP integration or hardware bring-up issues. Support of board specific devices and interfaces has been added to the BSP to achieve the full benefit of the functions provided by the hardware. Supports booting from local devices as well as network booting and provides convenient remote update mechanisms. MD5SUM: 2ab6fa136d60af4129506deb40a43398
[ lin26-bsp-osadl-r12-tar.bz2, 732.46 MB, Apr.20.2023 ]

Windows CE

Readme Windows CE 6.0 Board Support Package (Release Candidate)
[ readme_wce60-bsp-thinkio-p_r10.txt, 6.92 KB, Nov.27.2013 ]

Windows CE 6.0 Board Support Package (Release Candidate)  [restrictions apply]
[ wce60-bsp-thinkio-p_r10.zip, 4.13 MB, Nov.27.2013 ]

Windows CE 5.0 Board Support Package [restrictions apply]
[ thinkiop_bsp_i0200_wce50.zip-2, 3.98 MB, Nov.27.2013 ]

Readme Windows CE 5.0 Board Support Package
[ readme_thinkiop_bsp_i0200_wce50.txt-2, 6.93 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
