VX3035

3U VPX Intel® Core™ i7 Single Board Computer

This product is not recommended for new designs.

Mouseover Zoom loading...

Specifications

Intel® Core™ i7-2655LE 2.2GHz, four Threads, Intel® HD Graphics
VXFabric™ Option for Computing Nodes
Supporting Safety Critical Applications
Long Term Supply Program
Turnkey Development Platforms
Windows ES 7, Linux, VxWorks, PikeOS

3U VPX 2nd Generation Intel® Core™ i7 Single Board Computer

VX3035 is based on the second generation of the Intel® Core™ i7 processor. Integrating the Intel® Core™ i7 2655LE processor, Intel® HD graphics and features such as Intel® Turbo Boost technology and Intel® Advanced Vector Extensions (Intel® AVX), the new 3U VPX CPU board defines a new performance class for SWaP (size, weight and power) optimized high-performance embedded computing applications.

Features

CPU	Intel® Core™ i7 2655LE

Controller

Intel® QM67 controller hub

Cooling

Standard Air-, Rugged Air- or Rugged Conduction-cooled versions

CPU Clock

2.20 GHz

CPU L2 Cache

4M Cache

Operating System

Windows Embedded Standard 7, Linux, VxWorks, PikeOS

Standard

VPX VITA 46, OpenVPX VITA65, VPX REDI VITA 48.

Graphics

High performance 3D graphics controller integrated in the processor

Ethernet

3 x GbE, 2 1000BASE-BX with Intel i82580 Ethernet controller (rear), One 1000BASE-T with i82579 (front or rear, BIOS option)

Watchdog

FPGA-based, timeout ranging from 1s to 510s, IRQ, Reset, dual-stage

DRAM	Up to 8 GB dual Channel 1333 SDRAM with ECC

Fabric Interface Support

Support of Kontron VXFabric™

Downloads

Datasheets

VX3035 Datasheet
[ datasheet_vx3035.pdf, 1.21 MB, Aug.31.2017 ]

VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

Manuals

VX3035 User's Guide [restrictions apply]
[ cadta95-4e-vx3035-ug.pdf, 3.61 MB, Sep.11.2017 ]

VX3035-PBIT User's Guide [restrictions apply]
[ sddtg08-2e-vx3035-pbit.pdf, 420.96 KB, Sep.11.2017 ]

VX3035 - AMI BIOS User Reference Manual [restrictions apply]
[ sddtf97-9e-vx3035-bios.pdf, 6.18 MB, Sep.11.2017 ]

EZ3-VX3035 Quick Start [restrictions apply]
[ sddtf95-ez3-vx3035.pdf, 155.31 KB, Sep.11.2017 ]

EZ3-VX3035 Getting Started [restrictions apply]
[ sddtg05-ez3-vx3035.pdf, 626.95 KB, Sep.11.2017 ]

VX3035 Hardware API Manual [restrictions apply]
Certification artifact for VX3035. This document lists the VX3035 chipset registers settings and meaning, post BIOS initialization. Can also be used for PBIT and prelaunch tests in safety critical hypervisors and OSes.
[ vx3035-hwapi-ft-dt-942-4e.pdf, 1.61 MB, Apr.20.2023 ]

PB-VX3-4xx -3U-VPX Rear Transition Module User's Guide [restrictions apply]
[ cadtb03-0e-pb-vx3-4xx.pdf, 1.12 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

VXFabric White Paper
[ whitepaper_en_vxfabric-v2-final.pdf, 5.87 MB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Accessories

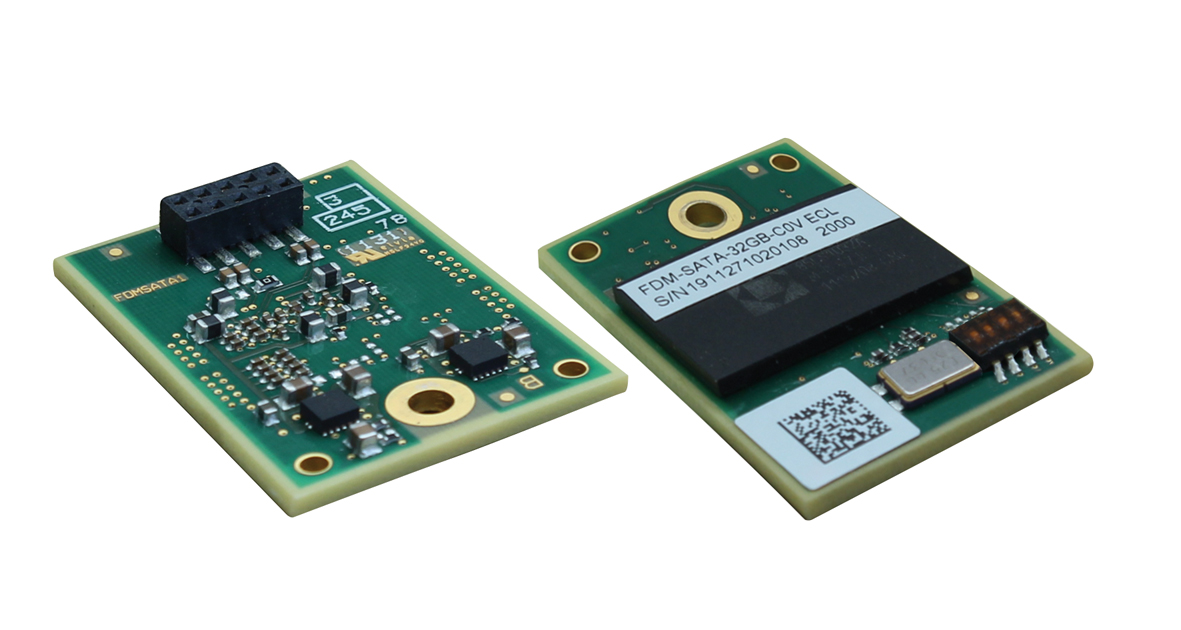

Nand Flash Modules
