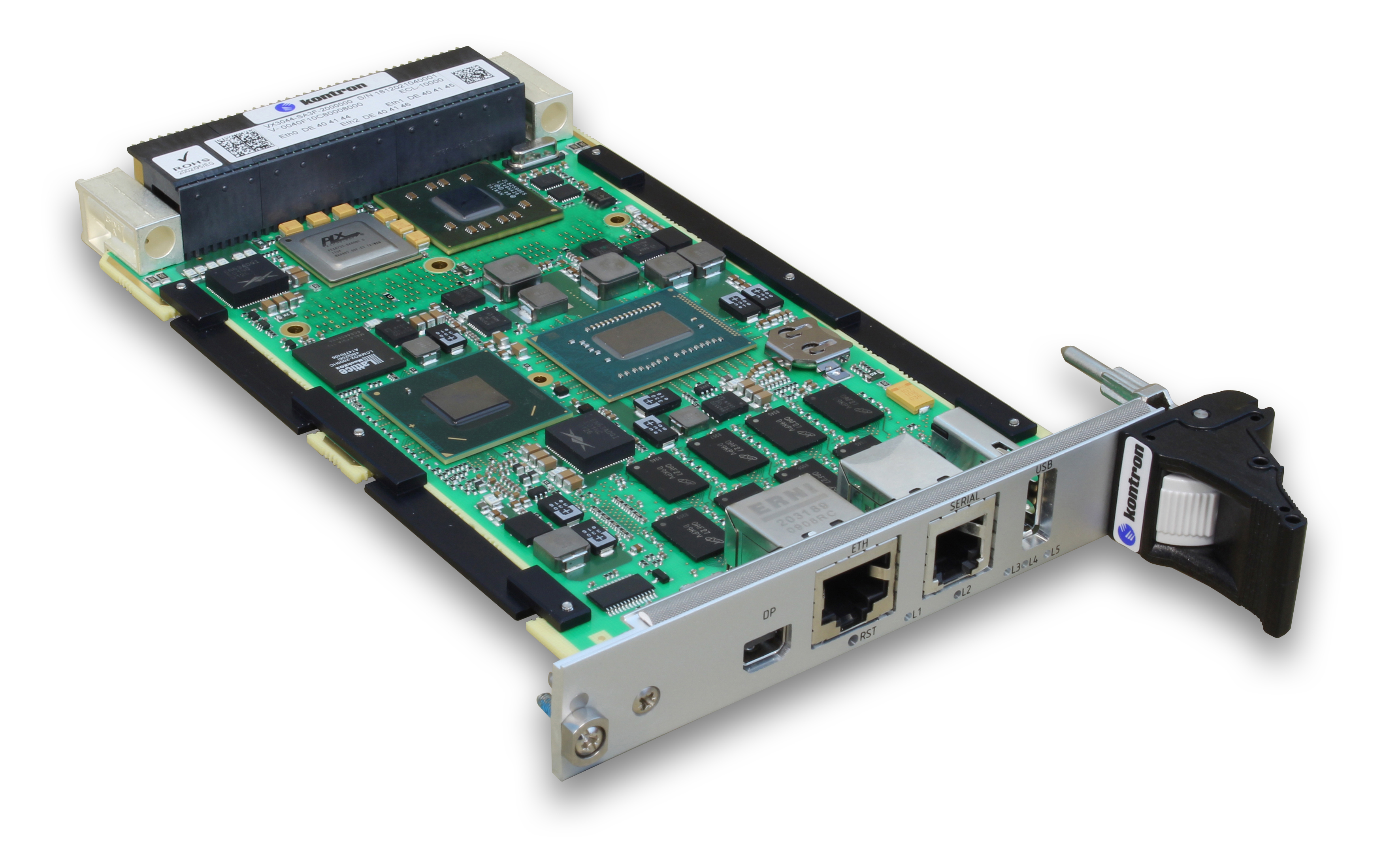

VX3044

3U VPX Intel® Core™ i7 Single Board Computer

This product is not recommended for new designs.

Mouseover Zoom loading...

Specifications

Quad-Core 2.1GHz/35W
Rugged SBC with dual 10G Ethernet, Intel® HD Graphics 4000
The blade for HPEC applications
PCI Express Gen 3.0, with Kontron VXFabric™
Extended Life Cycle, Air-Cooled and Conduction-Cooled Versions
Turnkey Evaluation/Development Platforms
XMC with front and rear I/O Support
Up to 16 GB SDRAM with ECC

Rugged SBC with multiple 10G Ethernet and Intel® HD Graphics 4000

VX3044 is the Kontron 3U VPX rugged Single Board Computer with Intel® HD Graphics 4000 and multiple 10G Ethernet. It implements a new architecture poised to address specific applications and offer the ultimate performance for the Military, Aerospace and Transportation markets.
Based on Intel®’s 3rd Generation Core™ i7 high performance computing architecture, and supported by Kontron Long Term Supply (LTS) services, VX3044 offers the best feature set.

The perfect blade for High Performance Embedded Computing (HPEC)

Used in clusters, VX3044 provides the highest computing density in 3U VPX form factor. Backed up by a powerful I/O backbone (gen3 PCIe and Ethernet 10G), switch boards for PCIe (VX3905) and ETHERNET (VX3910, VX3920)
plus turnkey pre-installed OS . VX3044 solutions complete the quickest route from the lab to the field for HPEC applications. VX3044 is equipped with Kontron VXFabric™ technology which implements the TCP/IP protocol over
the PCI Express infrastructure.

SWaP-C
The design is tailored to support systems with high size, weight and power and cooling demands.

Connectivity
Designed for PCIe Gen3 8GB/s. I/O extensions at peak bandwidth. 4 SATA ports to the backplane: for secure RAID storage applications

Compatibility
VX3044 is compatible with all Kontron VPX building blocks (Payload boards, carriers, switches, backplanes, OS and drivers) and offers backward compatibility with the previous product generations (VX303x SBCs).
Write the code once, run on all the product line.

Long Term Supply (LTS)
Kontron Extended Life Cycle offers a 15-year life cycle organization on top of Intel® embedded product line silicon life cycle. VX3044 is the ideal candidate for long term programs in compact high performance parallel computing solutions.

Features

CPU	Intel® Core™ i7-3612QE Processor (4M cache, 4 execution cores, 8 threads)

Controller

Mobile Intel® QM77 Express Chipset

Graphics

Integrated Graphics Core, Intel® HD graphics 4000

Downloads

Datasheets

VX3044 Datasheet
Quad Core 3U VPX Computing Board
[ vx3044-datasheet-09-2015.pdf, 1.6 MB, Aug.31.2017 ]

VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

EZ Platforms
[ ez-platforms-20-02-15-datasheet.pdf, 1.02 MB, Aug.31.2017 ]

Manuals

VX3042 and VX3044 - AMI BIOS User Reference Manual [restrictions apply]
[ sddtf96-10e-vx304x-bios.pdf, 6.09 MB, Sep.11.2017 ]

VX3042 and VX3044 - PBIT User's Guide [restrictions apply]
[ sddtg14-3e-vx3040-pbit-ug.pdf, 414.84 KB, Sep.11.2017 ]

EZ3-VX3044-A0-L Quick Start [restrictions apply]
[ sddtg13-1e-ez3-vx3044-a0l-qs.pdf, 169.84 KB, Sep.11.2017 ]

EZ3-VX304x-00-L Quick Start [restrictions apply]
[ sddtg12-0e-vx304x-ez3.pdf, 192.17 KB, Sep.11.2017 ]

EZ3-VX304x Getting Started [restrictions apply]
[ sddtg09-1e-ez3-vx304x-gs.pdf, 1 MB, Sep.11.2017 ]

PB-VX3-4xx -3U-VPX Rear Transition Module User's Guide [restrictions apply]
[ cadtb03-0e-pb-vx3-4xx.pdf, 1.12 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

VXFabric White Paper
[ whitepaper_en_vxfabric-v2-final.pdf, 5.87 MB, Nov.27.2013 ]

Managing 3rd gen High Data Rates on VPX Backplanes
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G/40G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.49 MB, Apr.21.2017 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
