VX3800 Not recommended for new designs

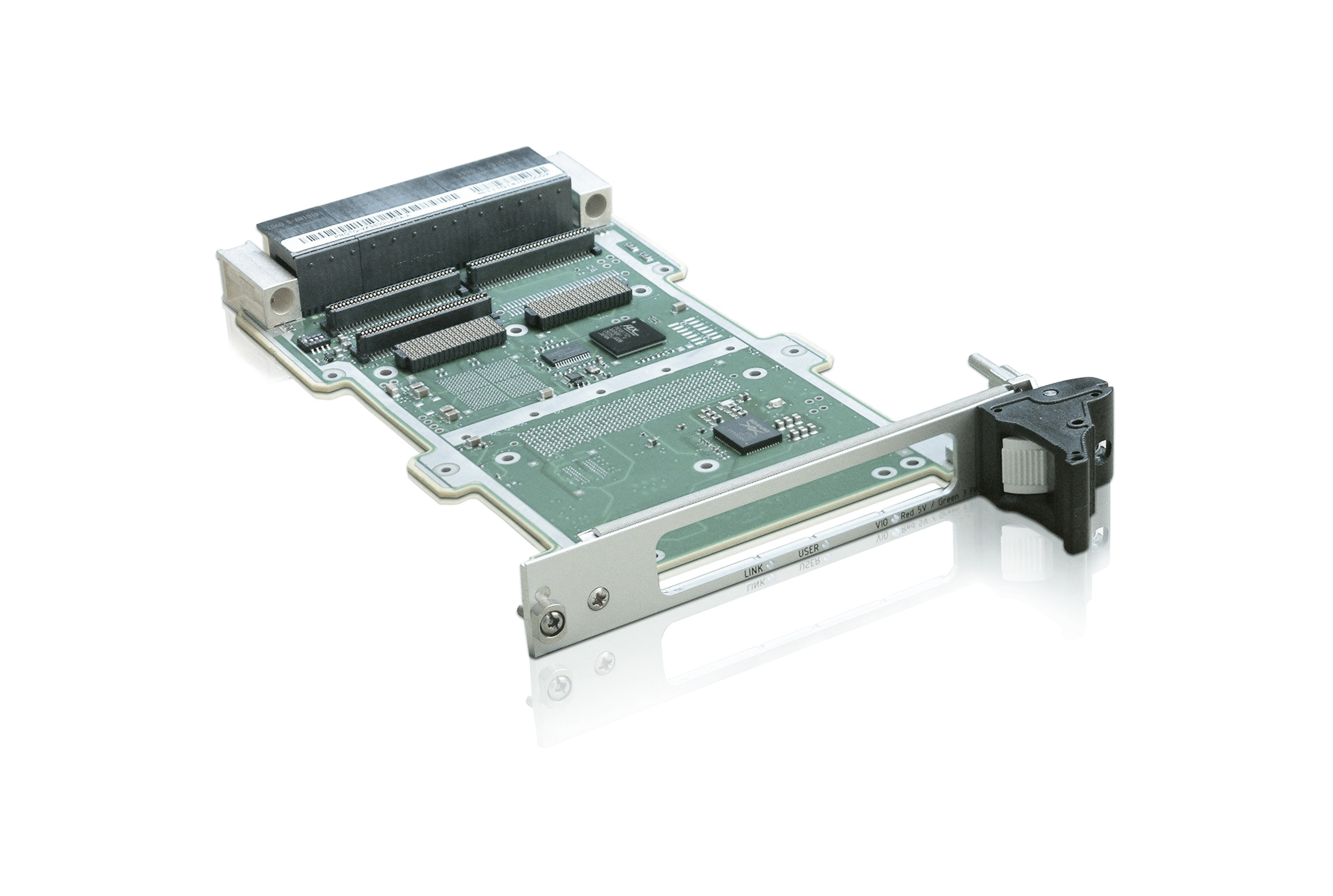

3U VPX/VPX-REDI PMC/XMC Carrier Card
Mouseover Zoom loading...
Specifications
- x4 or x1 PCI-Express XMC Interface
- 32-bit 66 MHz PCI PMC Interface
- Standard Air- and Rugged Conduction-Cooled Versions
VX3800 is a 3U VPX carrier designed to support any standard XMC/PMC mezzanine and expand I/O flexibility to VPX systems. It provides one XMC/PMC site, alternately used as a PCIbus 32-bit/66 MHz or as an XMC site with either a x4 or a x1 PCI-Express link to the VPX backplane.
VX3800 is a member of Kontron's VITA 46 VPX Ecosystem which facilitates the implementation of VPX through an integrated offering.
VX3800 is a member of Kontron's VITA 46 VPX Ecosystem which facilitates the implementation of VPX through an integrated offering.
Features
| Dimensions (H x W x D) | 99.85 mm x 162.54 mm. 0.8 inch face plate. (1 inch is a built option) |
| Input Voltage | 5V payload power by default on the VPX backplane for 3U/6U compatibility |
| Interface | PMC: PMC rear I/Os on mezzanine J4 are connected to the VPX P2 connector |
| Temperature | VITA 47-Class AC1 and VITA 47-Class CC4 |
| Operation Temperature | Standard Commercial: 0° to +55°C; Rugged Conduction-Cooled: -40° to +85°C |
| Cooling | Convection or Conduction |
| Supply Voltage | V(I/O) signaling is +3.3V by default. V(I/O) signaling at 5V is a build option |
| Shock | Standard Commercial: 20g/11 ms Half Sine; Rugged Conduction-Cooled: 40g/11 ms Half Sine |
| Humidity | Standard Commercial: 90% without condensation; Rugged Conduction-Cooled: 95% without condensation |
| Vibration | Standard Commercial: 20/500 Hz: 2g; Rugged Conduction-Cooled: 22/2,000 Hz: 2g |
