VX3920 Not recommended for new designs

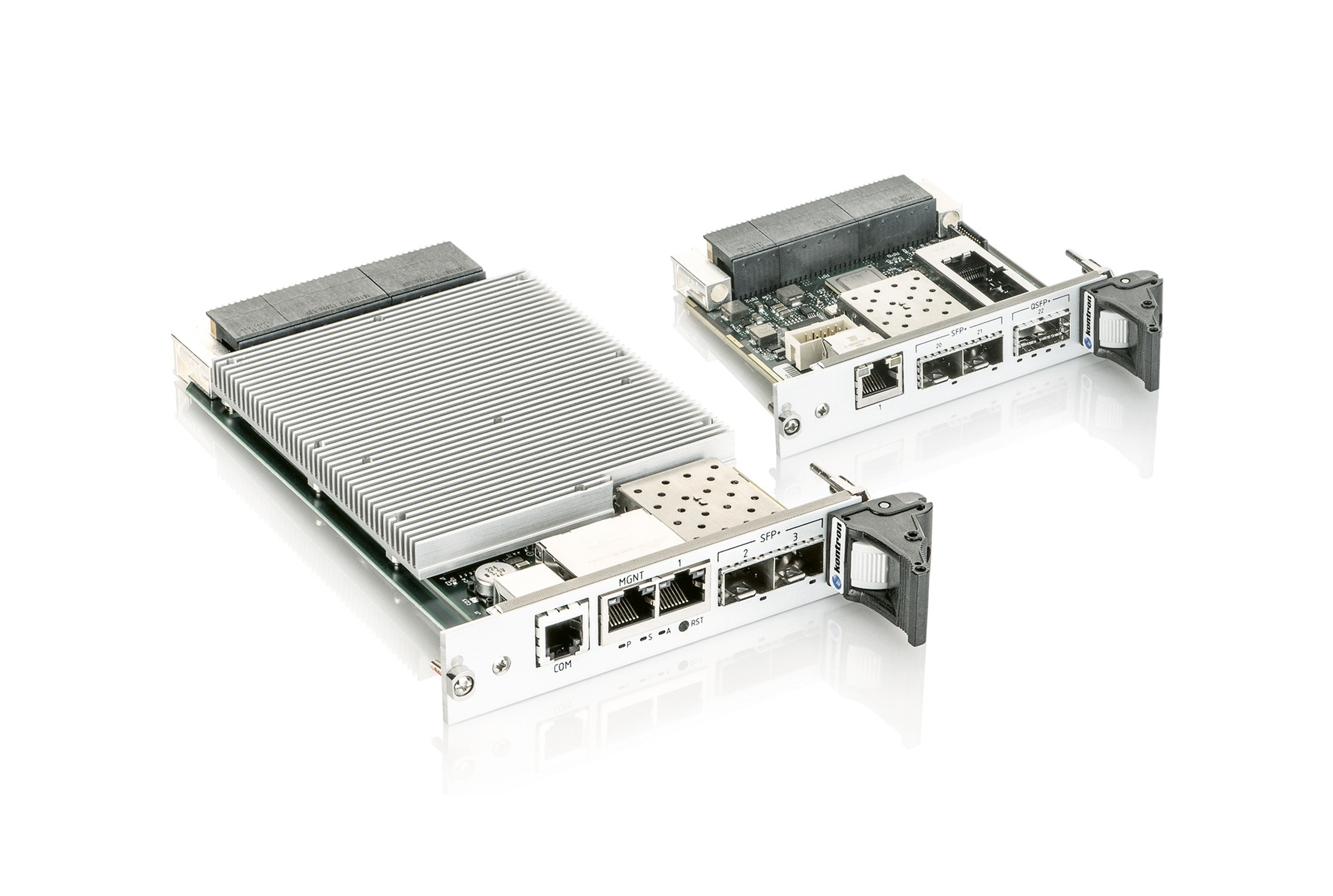

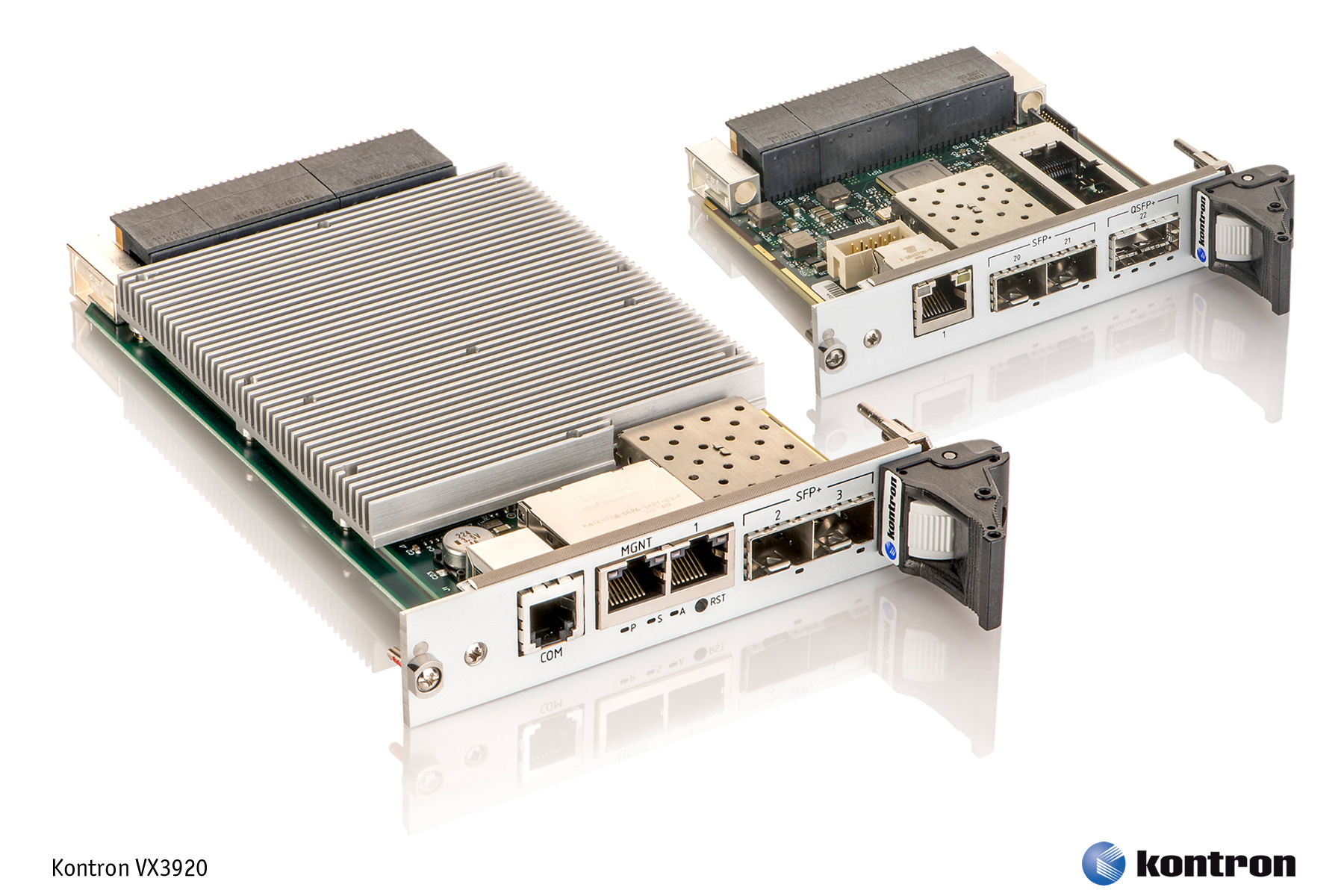

High End L2/L3 OpenVPX 10G/40G Ethernet Switch

Mouseover Zoom loading...

Specifications

L2/L3 non blocking 10G/40G switch
3U Open VPX, MOD3-SWH-2F24U module
Air-cooled - Backplane: 22x 10GBase-KR, 1x 10/100/1000Base-T user configurable front panel or backplane. Front Panel: 2x 10G SFP+
Conduction-cooled - Backplane: 24x 10GBase-KR or 6x 40GBase-KR4 or, 22x 10GBase-KR + 1x 10/100/1000Base-T
Front Panel (air-cooled only): 2x SFP+, 2x RJ45, 1x RJ11 (serial)
Supports: VLAN, Link Aggregation, Spanning Tree
QoS, Flow Control
GRVP, GMRP Function managed, Port Mirroring
Out of Band Management
5V only design, 45W maximum

VX3920 provides up-to 24 10 Gigabit Ethernet ports and comprehensive management features for extremely rugged 3U system designs. It implements Kontron Embedded Network Technology (same advanced feature set and operational interfaces across multiple form factors) which simplifies IPv4/v6 inter-and intra-platform networking.

Offering a switching capacity of 320Gb/s the non-blocking fully managed L2/L3 Gigabit Switch provides 24 x 10 G BaseKR ports to the backplane. Two 10 Gigabit ports are also available on the front panel through SFP+ ports, two RJ45 GETH and one RJ11 serial line ports. One GETH and the serial line port can be used for out-of-band management.

VX3920 is currenly available in an air-cooled version (0°C to +55°C) and conduction-cooled version (-40°C to + 85°C).

Features

Ports

OpenVPX 3U Switch slot profile: SLT3-SWH-2F24U-14.4.3
Up to 24x 10 GETH backplane ports, or 6x 40 GETH ports.

Ports

Port ordering option:
X x22 10GBASE-KR ports on rear, x1 10/100/1000BASE-T port rear or front, x2 SFP+ on front
X x24 10GBASE-KR ports on rear, x1 10/100/1000BASE-T to backplane, no SFP+ on front
X RTM (Rear Transition Module) SFP+ port operates in 10GBASE-SR/LR/CR
X QSFP+ port operates in 4x 10GBASE-SR/LR/CR or 40GBASE-SR4/LR4/CR4
X RTM RJ-45 10/100/1000BASE-T port is shared with the Front RJ-45
One 10/100/1000BASE-T out-of-band management port on front panel (RJ-45)
1 RJ-12 serial link

Power Consumption

50 Watts

Operation Temperature

0°C to +55°C Air-Cooled; -40° to +85°C Conduction-Cooled

Downloads

Datasheets

VX3920 3U VPX 10G ETH L2/L3 Switch Data Sheet
[ vx3920-datasheet-06-2017.pdf, 1.01 MB, Aug.31.2017 ]

VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]

Manuals

VX3920 User Manual [restrictions apply]
User Guide to VX3920 High End L2/L3 OpenVPX 10G Switch, including supported MIBs and RFCs.
[ vx3920-user-guide-v1-04.pdf, 1.74 MB, Jul.03.2018 ]

VX3920 CLI Reference Manual [restrictions apply]
VX3920 Command line interface (CLI) to the FASTPATH software
[ vx3920-cli-reference-manual-v1-6.pdf, 5.59 MB, Apr.20.2023 ]

VX3920 Errata Sheet [restrictions apply]
Errata for Kontron VX3920 Ethernet Switch For SW BETA Release 1.00 and for all SW GA releases
[ vx3920-errata-v1-01.pdf, 91.58 KB, Apr.20.2023 ]
