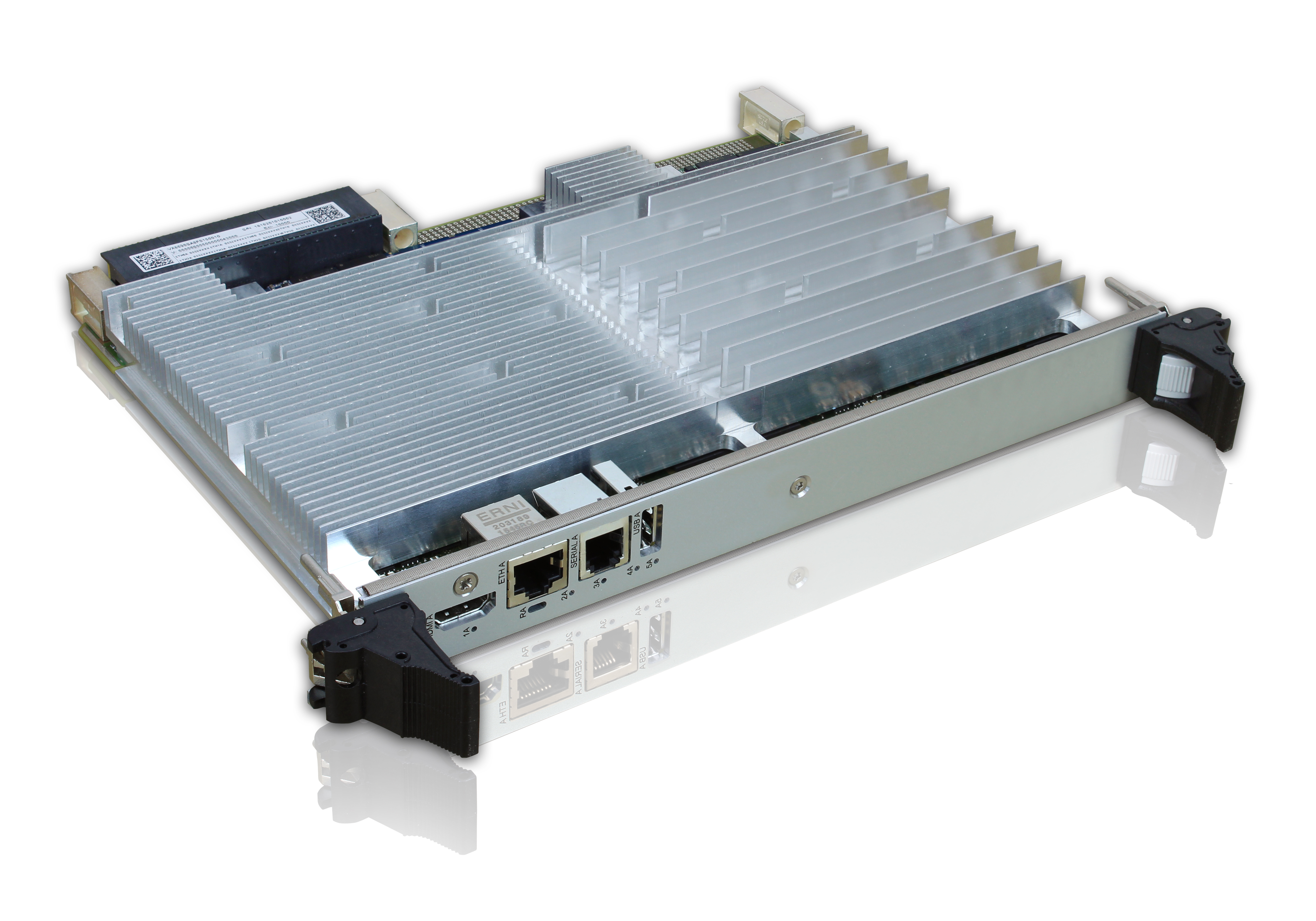

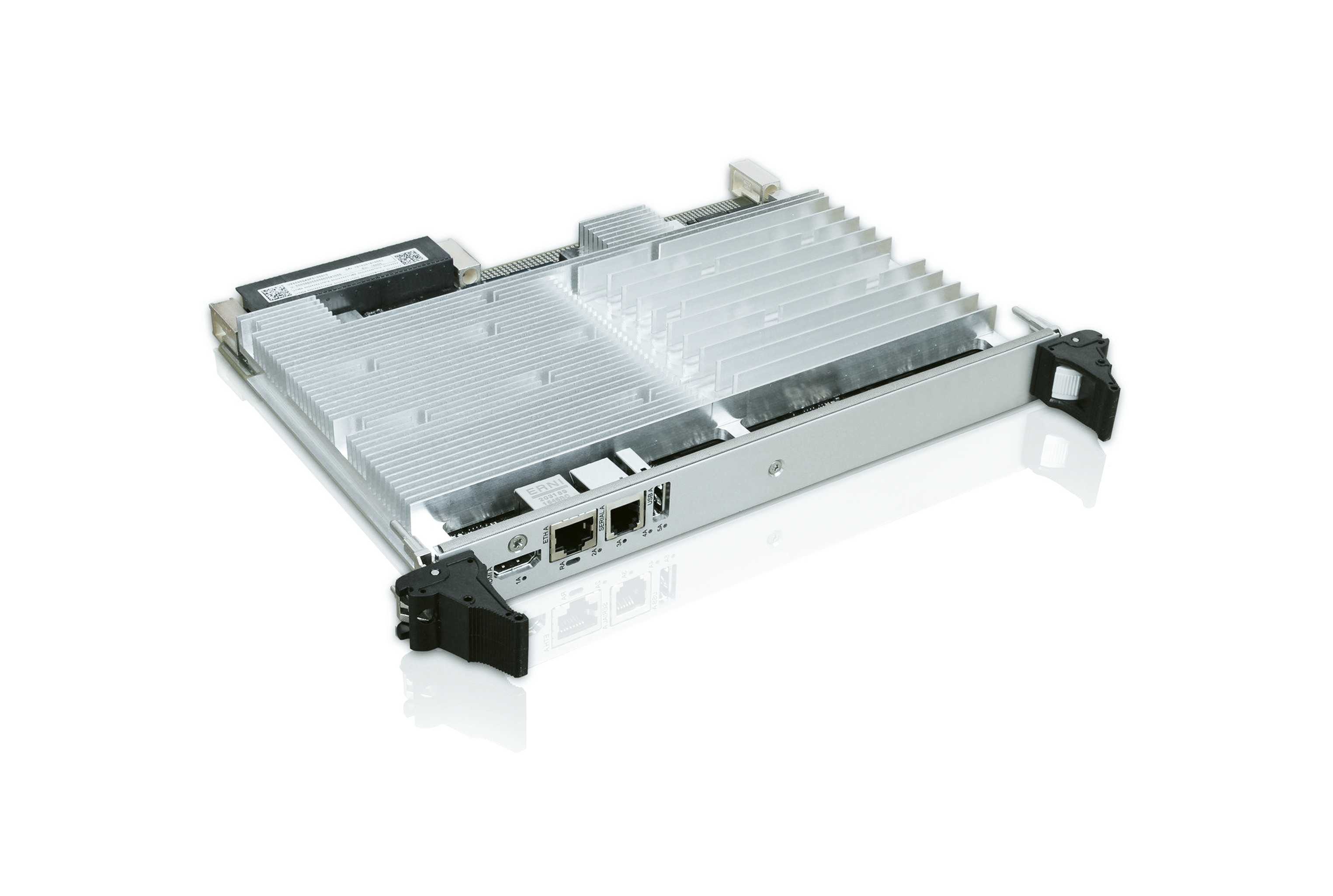

VX6058 Not recommended for new designs

Value line 6U VPX Intel® Xeon® D Single Board Computer

Mouseover Zoom loading...

Specifications

8-Core Xeon® D 64-bit SoC at 2.0 GHz
2D SXGA Graphics Controller
Connectivity: Multiple 10G & 1G Ethernet Ports
M.2 SATA III SSD Sockets
Low Speed 17CFM Air Cooling capability
Components from countries which accept use in Defense applications
Extended Life Cycle and 10-year Silicon Reliability

Designed for Streaming Signal processing applications

The VX6058 is ideal for use in Size Weight, Power and Cost (SWaP-C)-constrained systems and general-purpose missions, ranging from industrial to extreme rugged defense applications. VX6058 features an 8-core 2.0 GHz Intel® Xeon-D® processor, on-board soldered DDR4 (with ECC), up to 12 MB of high speed cache memory and an embedded 2-D SXGA graphics controller. VX6058 provides dual 10 Gigabit Ethernet, two 1 Gbe Ethernet controllers and M.2 slots for data storage on COTS SSD devices. In addition, SATA, USB 3.0, USB 2.0, HDMI, serials and GPIOs are available on the front panel and to the rear backplane, as well as an optional XMC site for further I/O expansion.

Features

Processor

Intel® Xeon® D Octo Core™, 45W, 2.0 GHz (8 execution cores, 16 threads, 12 MB)

Frontpanel

1000BaSe-T Ethernet, USB2.0, Serial, HDMI

Backplanes

Dual 10G Ethernet, Multiple 1G Ethernet Ports, SATA III, USB 3.0, Serial, GPIOs
