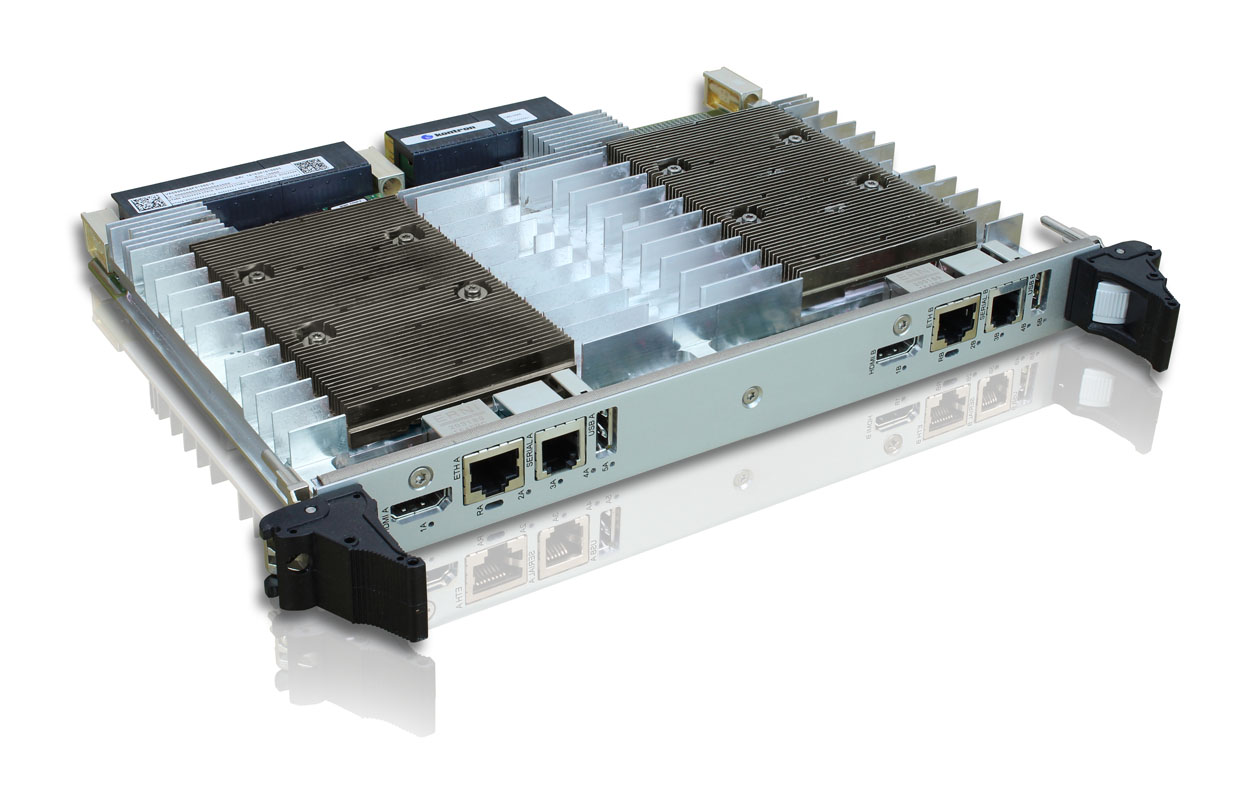

VX6090

6U VPX Intel® Xeon® D Multi-Processing Board

Mouseover Zoom loading...

Specifications

Dual 12-core Xeon® D 64-bit SoC at 2.1 GHz
16 GB DDR4 memory with ECC per SoC soldered on PCB
Connectivity: 4x 10 G & multiple 1 G Ethernet Ports
M.2 SATA III SSD Sockets
2-D graphics interface
Extended Life Cycle and Silicon Reliability

Designed for imaging, radar and embedded server applications

Kontron’s VX6090 is a high-performance, multi-purpose Single Board Computer (SBC) suitable for a wide range of demanding embedded deployments. Based in Intel’s® Xeon-D® 8 or 12 Core™ server class processors, the VX6090 combines dense processing with rich standard-based communication fabrics and I/O connectivity to form an ideal, flexible platform for SWaP-constrained missions, equally suitable for streaming radar signal or image-processing and embedded server-type applications.

Features

CPU	Fifth Generation Intel® Xeon® D Octo Core, 45W, 2.0 GHz (8 execution cores, 16 threads, 12 MB)

Graphics Controller

2-D SM750 graphics controllers

Backplanes

VITA65 payload slot profile SLT6-PAY-2F2U2T-10.2.5

Form Factor

Vita 48.1 type 2

Downloads

Datasheets

VX6090 Datasheet
Dual processor (12 or 8 Core each) 6U VPX Multi-Processing board
[ vx6090_190827_datasheet.pdf, 909.75 KB, Jul.07.2021 ]

VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

Manuals

VX6090 user's guide [restrictions apply]
[ cadtb20-5e-vx6090-ug.pdf, 3.33 MB, Sep.11.2017 ]

AMI BIOS User Reference Manual [restrictions apply]
[ sddtg66-4e-vx6090-bios.pdf, 3.47 MB, Sep.19.2017 ]

VX6090 PBIT User' Guide [restrictions apply]
[ sddtg65-0e-vx6090-pbit-ug.pdf, 1.41 MB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
