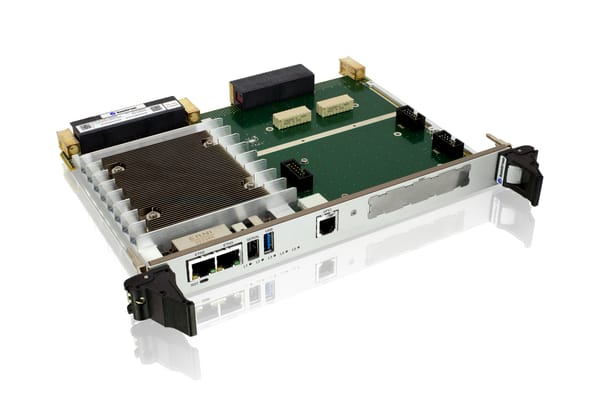

VX6124 New

6U OpenVPX ARM A72 Computing Node

Mouseover Zoom loading...

Specifications

High End, Low power: 200k+ DMIPS, 30W SBC
16 ARM A72 cores @ 2.0GHz NXP LX2160A SOC
16 128-bit NEON™ SIMD engines
40G BaseKR4 data plane, 10G BaseKR control plane port
Arm TrustZone, Kontron AppProtect support
40G Data Plane ready, SOSA compatible test vehicle

Download Datasheet

VX6124, a 6U VPX 200k+ DMIPS processing blade features 40G Ethernet connectivity, enabling powerful HPEC architectures for the next decade. VX6124 is the 6U version of an architecture designed for long term programs and harsh environments, ideal for applications requiring outstanding bandwidth and digital security. This architecture can be used as a vehicle for 40G data plane system experiments (with Kontron VX6940 40G/100G switch for example)

The VX6124 NXP QorIQ Layerscape LX2160A processor is coupled with up to 32GB DDR4 memory. The air cooled version is thermally and mechanically designed to optimize the use of Kontron XMC-GPU91 Radeon™ E9171, which adds to the massive computing power offered by the main CPU, another 1.2 TFlops of computing power via its eight compute units.

Downloads

Datasheets

VX6124 datasheet
[ vx6124_datasheet.pdf, 3.38 MB, Oct.19.2023 ]

Manuals

VX6124 User's Guide [restrictions apply]
[ d245260-1-0-vx6124_ug_v1-1.pdf, 6.59 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
