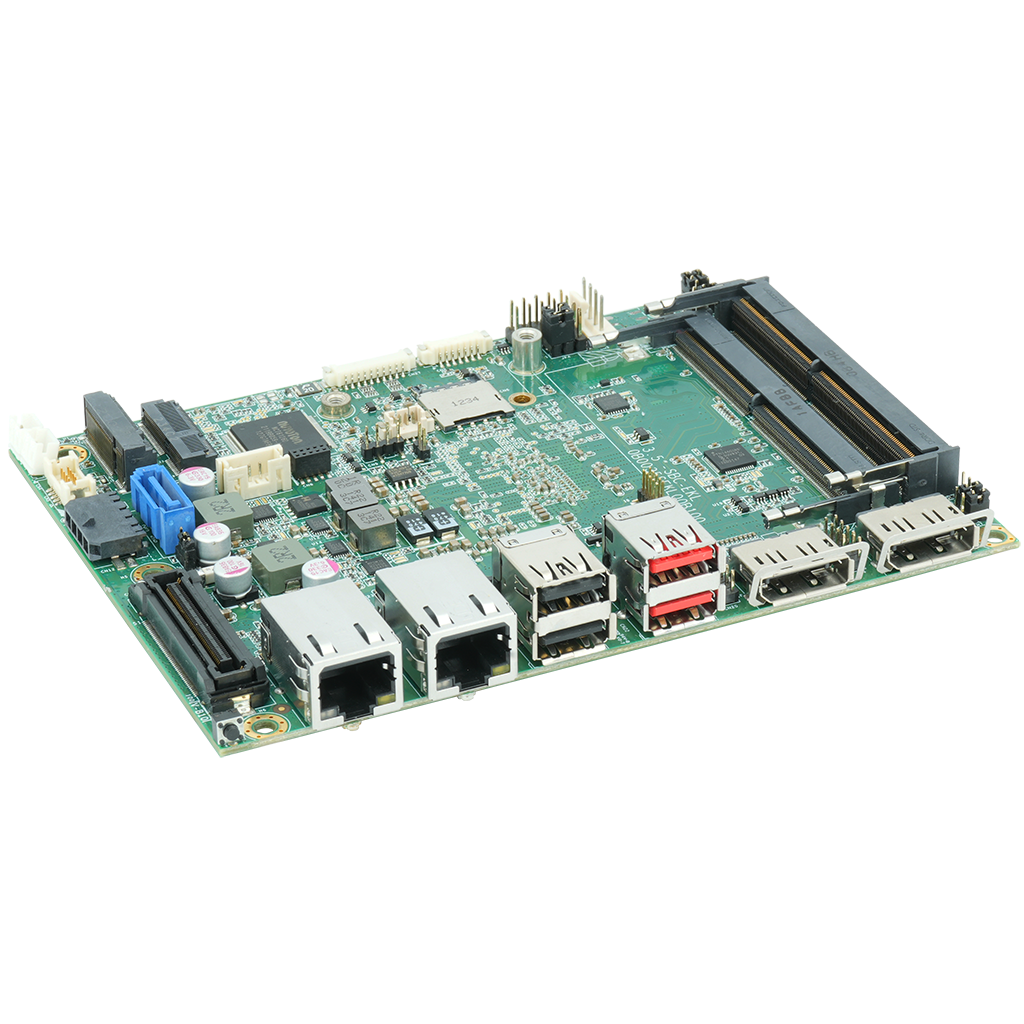

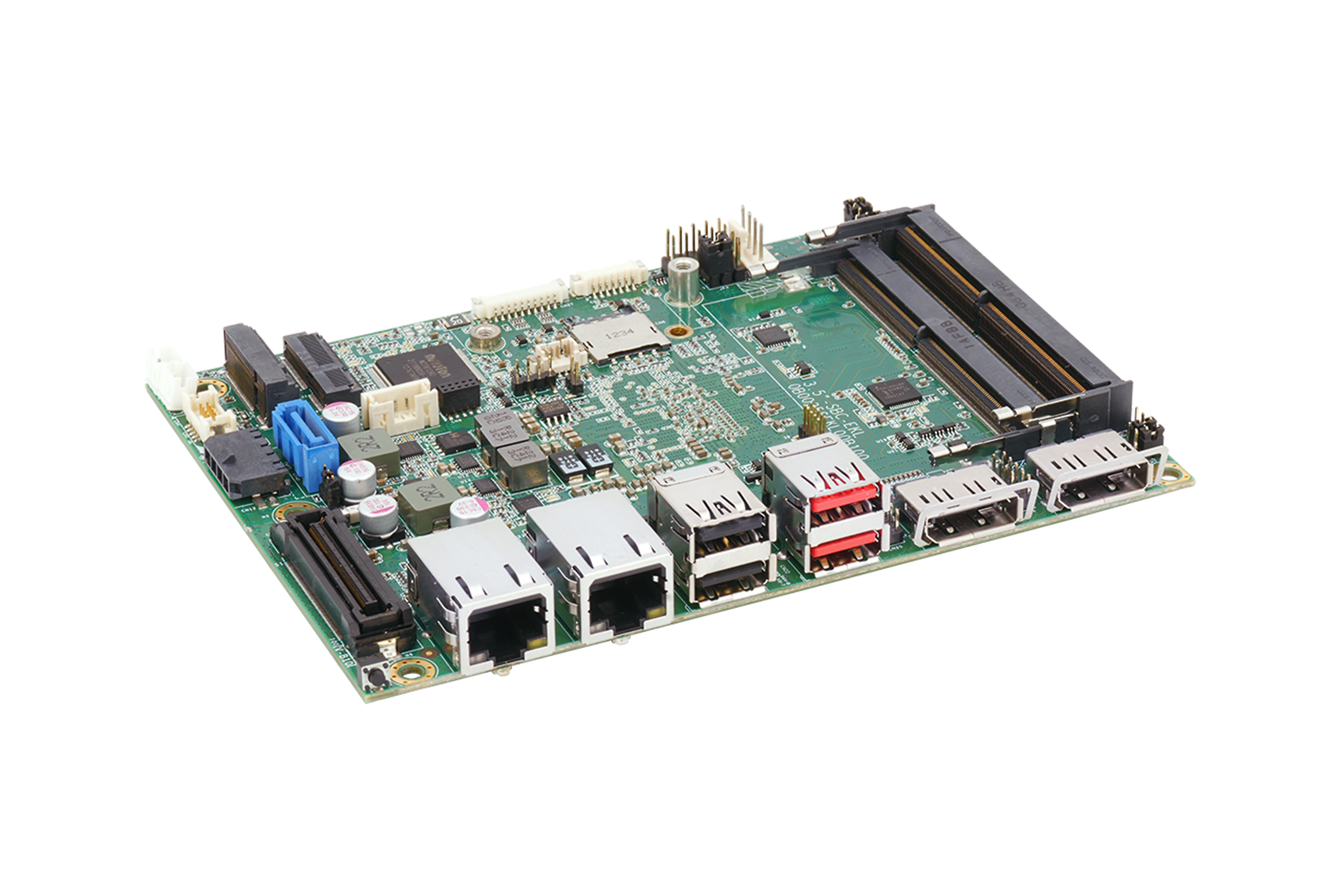

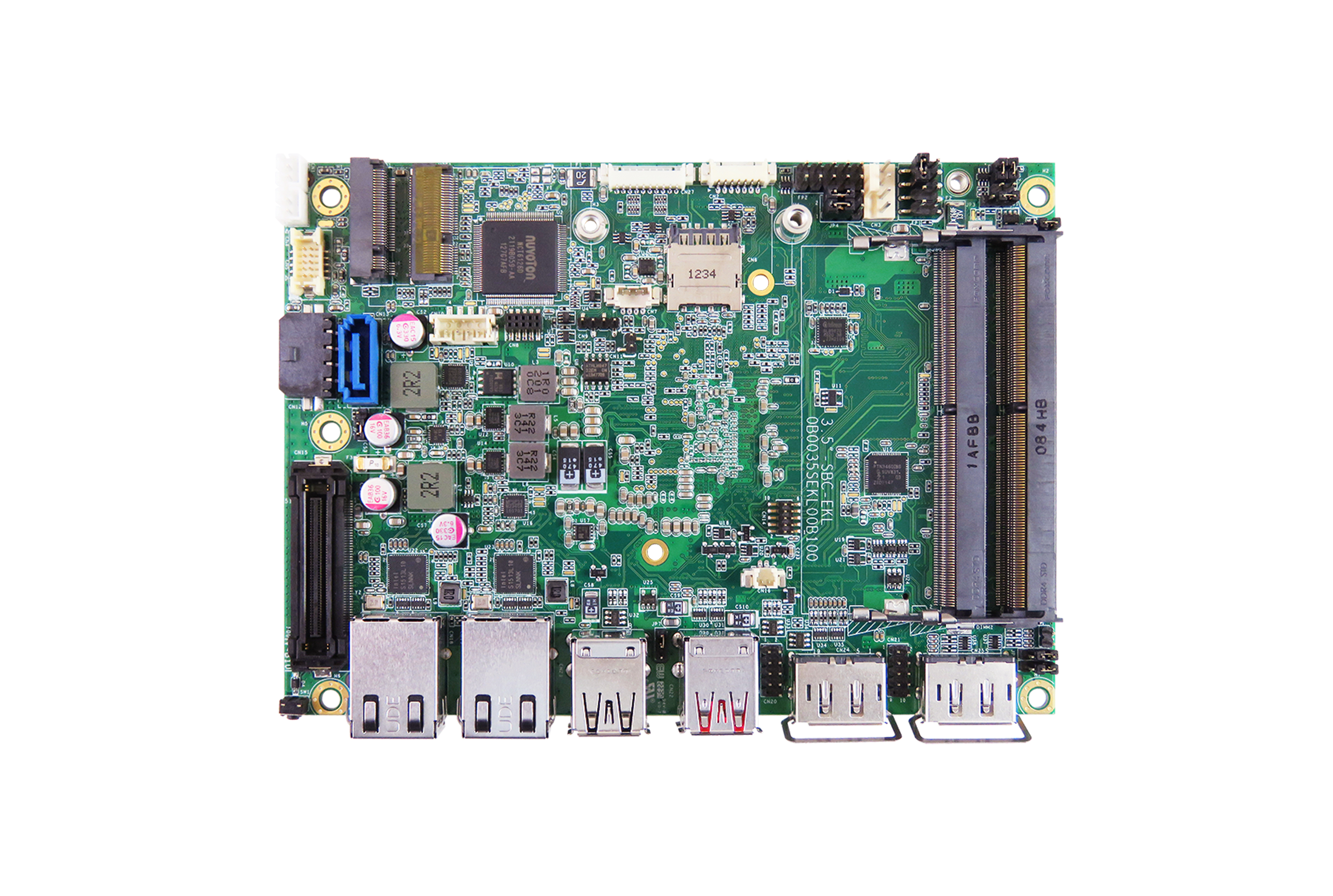

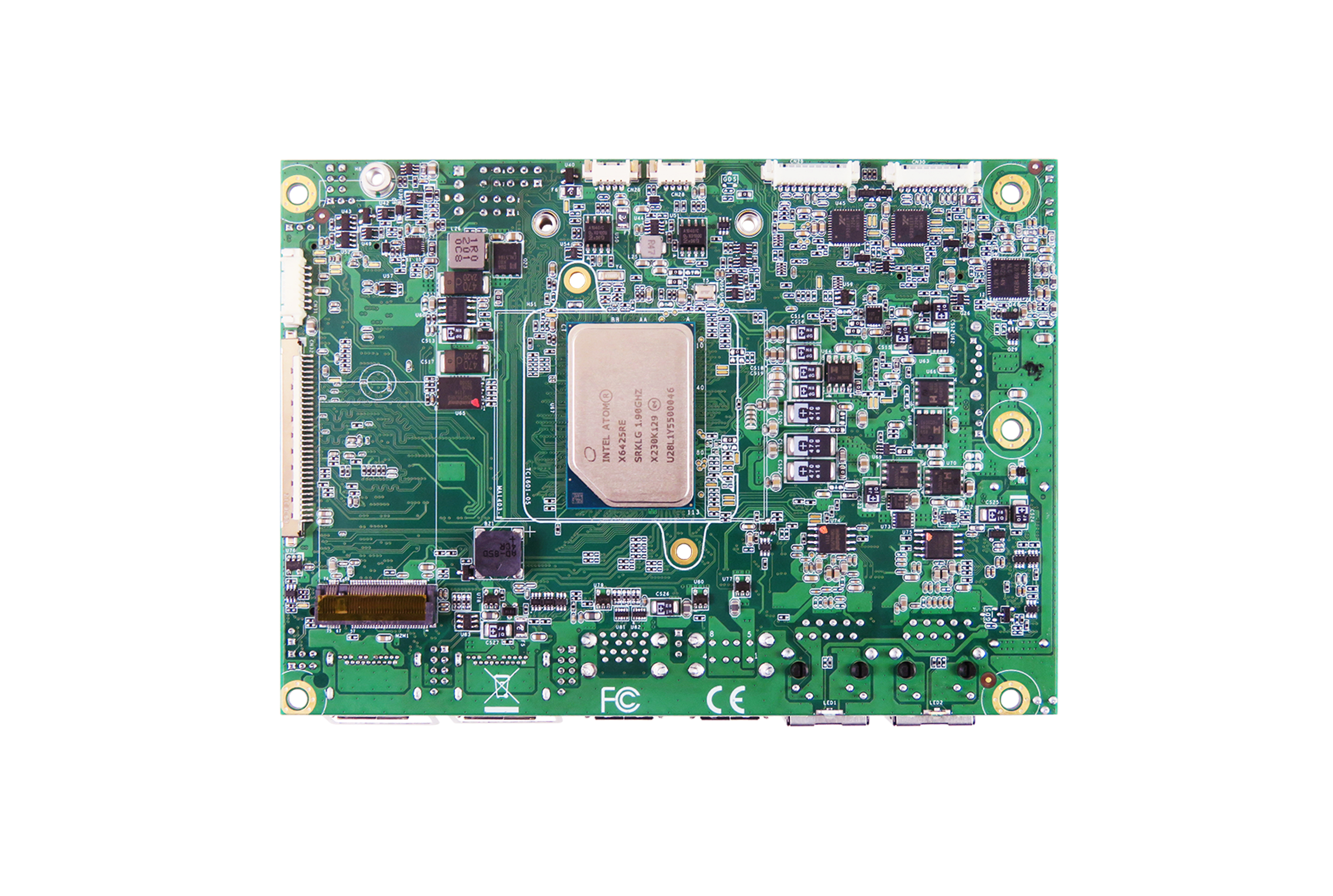

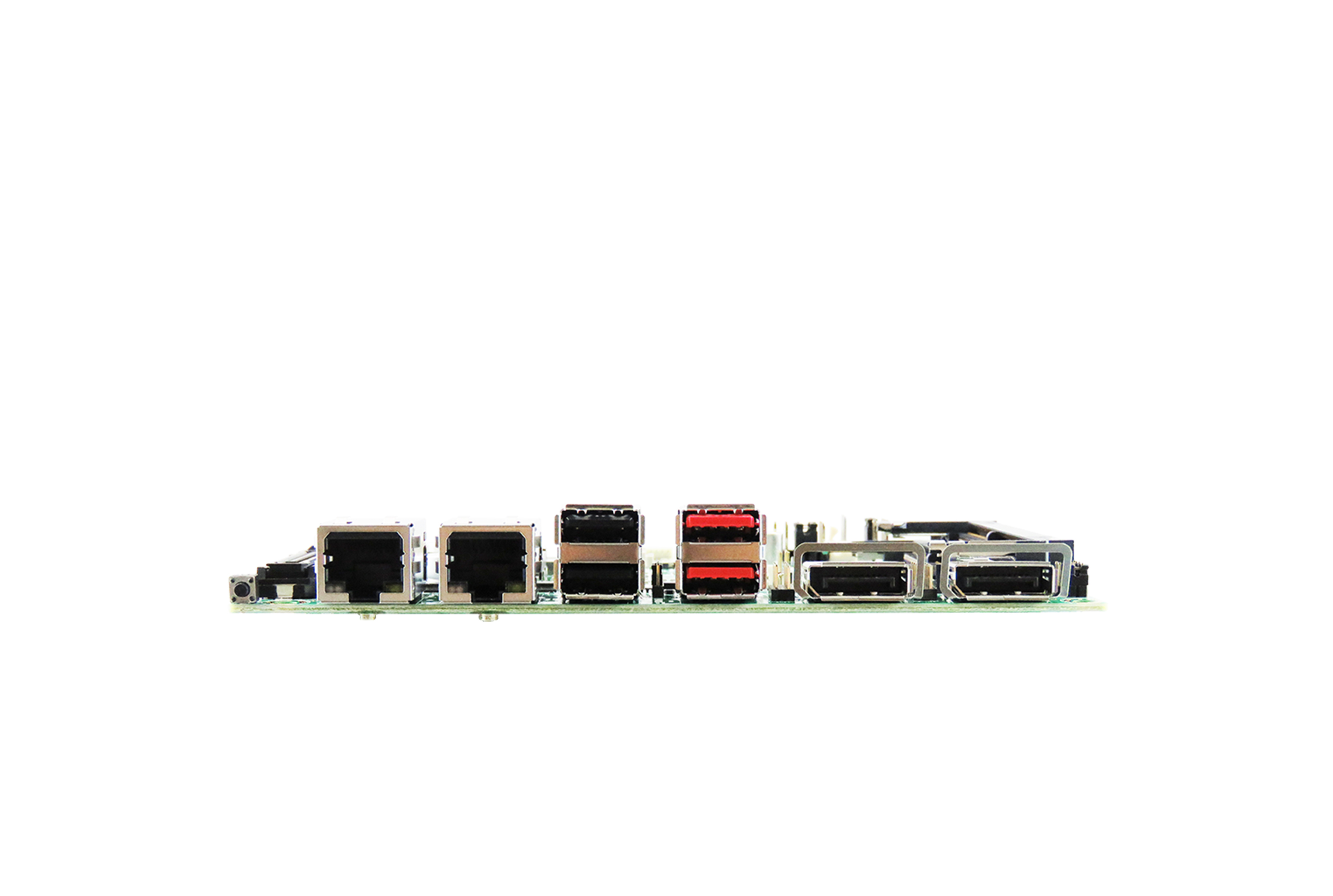

3.5"-SBC-EKL Neu

3.5″ Single Board Computer with Intel® Atom® x6000E Series, Celeron® J6000 / N6000 Series & Pentium® J6000 / N6000 Series Processors

Spezifikationen

2x DP, 1x LVDS for video output
2x 2.5 GbE LAN for Ethernet
2x USB 3.2 Gen 2, 6x USB 2.0, 2x RS232/422/485, 2x CAN Bus, 8x DIO for peripherals
1x SATA 3.0, 1x M.2 Key B, 1x M.2 Key E, 1x M.2 Key M for storage & expansion
1x B2B Connector for extended I/Os: 2x PCIe x2, SM Bus, I2C, UART, GSPI & DDI (optional)

Datenblatt herunterladen Jetzt kaufen

Extendable For More I/O Interfaces

3.5"-SBC-EKL is a 3.5" single board computer powered by Intel® Atom® x6000E Series, Celeron® J6000 / N6000 Series and Pentium® J6000 / N6000 Series processors. Besides great performance improvement in graphics, it features 2.5 GbE with TSN (Time Sensitive Networking) capability and enhanced TPM 2.0 security / encryption support, ideal for a variety of IoT applications, such as industrial automation, retail, smart city and healthcare.

The board supports an extended B2B connector, providing additional I/O port expansion to fulfill possible application requirements.

Eigenschaften

Processor

Intel® Atom® x6211E
(Dual Core, 1.5M Cache, 1.3 / 3.0 GHz, FCBGA1493, 6 W TDP)
Intel® Atom® x6212RE
(Dual Core, 1.5M Cache, 1.2 GHz, FCBGA1493, 6 W TDP)
Intel® Atom® x6425RE
(Quad Core, 1.5M Cache, 1.9 GHz, FCBGA1493, 12 W TDP)
Intel® Celeron® J6413
(Quad Core, 1.5M Cache, 1.8 / 3.0 GHz, FCBGA1493, 10 W TDP)

Main Memory

2x DDR4 3200 SO-DIMM up to 32 GByte

Graphics Controller

Intel® UHD Graphics for 10th Gen Intel® Processors

Display

1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz)
2x DP (4096 x 2160 @ 60 Hz, on rear, DDI2 can support on B2B optionally)
Triple Display

Audio Controller

TSI 92HD73C

Audio

1x Speaker-out (Stereo, 3 W)
1x Line-in (by header)
1x Line-out (by header)
1x Mic-in (by header)

Ethernet

2x 2.5 GbE LAN (RJ45 on rear, Intel® I226-LM/IT)

USB	2x USB 3.2 Gen 2 (Type A on rear) 6x USB 2.0 (2x Type A on rear, 4x by header)

Serial

2x RS232/422/485 (by header)

I/Os	8x DIO (by header) 2x CAN bus (by header, workable only under Linux OS) 1x GP-SPI (by header) 1x I2C (by header)

SATA	1x SATA 3.0

Expansion

1x M.2 Key B (Type 2242 / 3042 / 2280, w/ PCIe x1 / USB 2.0 / UIM)
1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / SDIO / UART / I2C)
1x M.2 Key M (Type 2280, w/ SATA 3.0)
1x SIM Card Holder (Micro type)
1x B2B Connector (2x PCIe x2, 1x SM Bus, 1x I2C, 1x UART, 1x GSPI, 1x optional DDI)

Input Voltage

DC 12 V

Power connector

1x4-pin pitch 3.0 mm Wafer

BIOS	AMI uEFI BIOS w/ 256 Mb SPI Flash

Watchdog

Programmable WDT to generate system reset event

System Monitoring

Voltages, Temperatures

Real Time Clock

SoC integrated RTC

Security

TPM 2.0 Support (Infineon SLB 9670)

Cooling

Passive

Operating System

Windows 10, Linux

Form Factor

ECX (146 mm x 105 mm / 5.75" x 4.13")

Operating Temperature

0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard)
-40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme)

Humidity

0 % ~ 95 %

Compliance

CE Class B
FCC Class B
ICES Class B
UKCA
UR (UL Recognized)
CSA

Downloads

Datasheets

3d5"-SBC-EKL Datasheet
Revision 20240709, July 9, 2024
[ kontron-3d5-sbc-ekl-datasheet-20240709.pdf, 2.11 MB, Jul.09.2024 ]

Manuals

3.5"-SBC-EKL User Guide
Revision 2.4, July 29, 2024
[ kontron-3d5-sbc-ekl-user-guide-rev-2d4-2024-07-29.pdf, 2.33 MB, Jul.29.2024 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Quick Reference Guide

3.5"-SBC-EKL Quick Installation Guide
Revision 1, July 9, 2024
[ kontron-3d5-sbc-ekl-qig-20240709.pdf, 573.5 KB, Jul.09.2024 ]

Tech Spec Sheet

Tech Specs SBC (Release Candidate)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Varianten

3.5"-SBC-EKL-0-J6413 43018-0000-18-4	$3.5\$	Intel® Celeron® J6413, Operating Temperature: 0 °C ~ 60 °C
3.5"-SBC-EKL-1-x6211E-XT 43018-0000-13-2	$3.5\$	Intel® Atom® x6211E, Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-EKL-2-x6212RE-XT 43018-0000-12-2	$3.5\$	Intel® Atom® x6212RE, Operating Temperature: -40 °C ~ 85 °C
3.5"-SBC-EKL-3-x6425RE-XT 43018-0000-19-4	$3.5\$	Intel® Atom® x6425RE, Operating Temperature: -40 °C ~ 85 °C

Zubehör

3.5" Extended I/O Board (3.5"-eIO-GPA-0) 1069-6159	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C	more
3.5" Extended I/O Board (3.5"-eIO-GPA-1) 1069-6922	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C	more
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT) 1073-9682	$3.5\$	2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C	more
DC Jack Cable 1064-2433		2,5-Gleichstrombuchse mit 2-mm-Mutter und 0,5-mm-Unterlegscheibe im Raster 1 x 4P 3,0
SATA Cable with Lock 1064-2431		SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm
SATA Power Cable 1064-2430		SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm
COM_Port Cable 1064-2427		D-SUB 9P (männlich) bis 1x10P 1,25
DIO Cable 1065-3137		D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm
2-Port USB 2.0 Cable 1069-7893		2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm
Audio Cable w/ 3x Phone Jack 1070-1245		HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm
AC to DC Power Adapter (12 V) 1069-3055		Input: AC 90 V ~ 264 V, output: DC 12 V @ 5 A Max. 60 W
3.5"-SBC-EKL(N/J Series)/AML/ADN Starter Kits 1070-4932	$3.5\$	1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Heatsink, 1x Screw Copper Pillar Kit

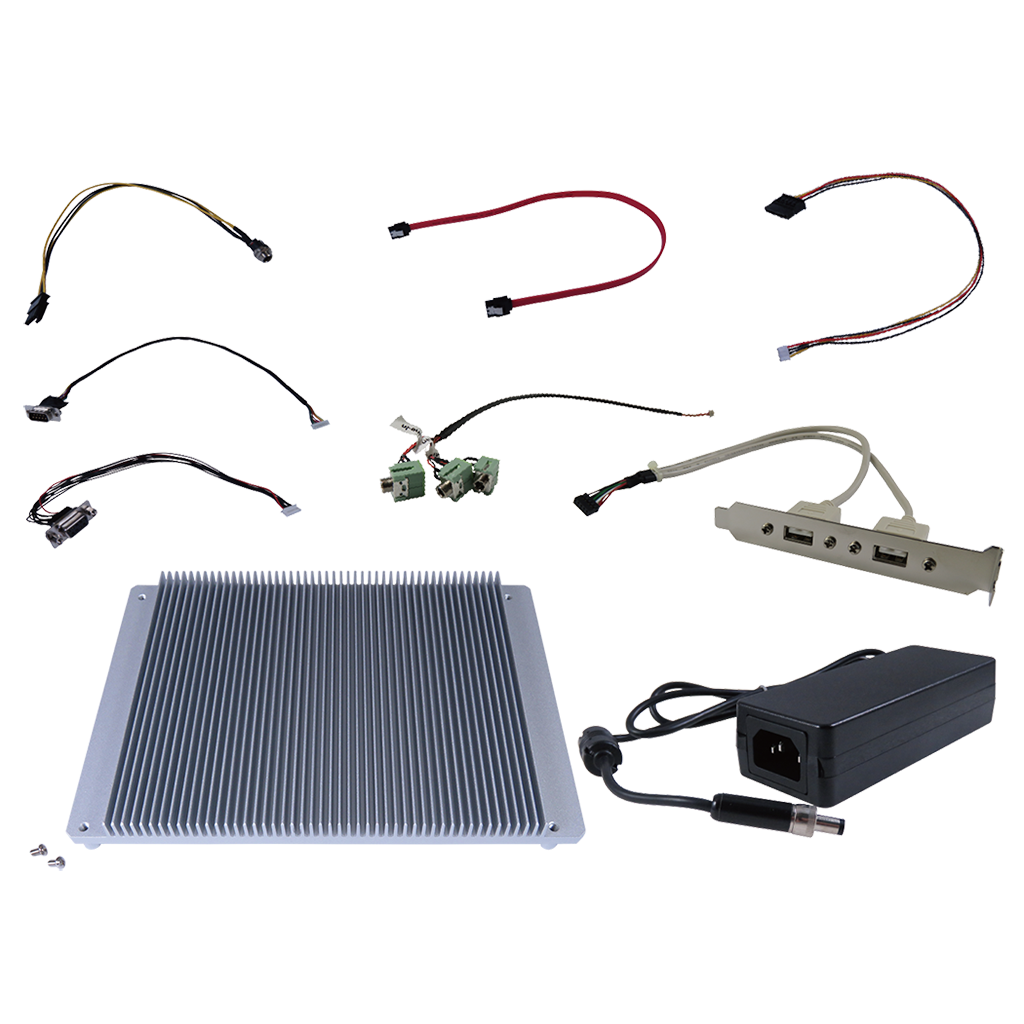

3.5"-SBC-EKL X Series Starter Kits 1070-2327	$3.5\$	1x DC In Cable, 1x SATA Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Heatsink
