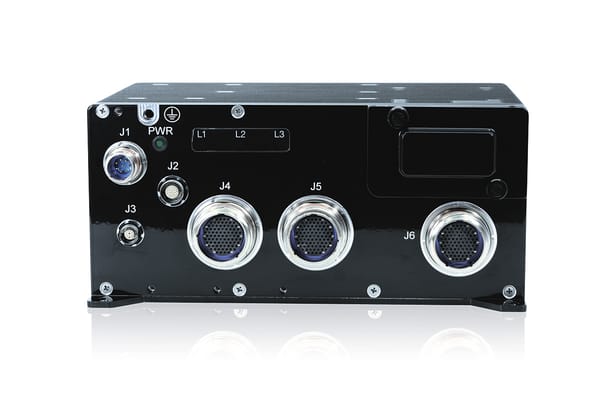

Ace Flight™ 905
Compact Airborne Cabin Server
Spezifikationen
- Cabin Server System with fixed and removable storage devices
- Intel 6-Core E-2276ML and Integrated UHD Graphics, 32GB ECC RAM
- Six Direct Ethernet Ports or L2 Managed Ethernet Switch (Ordering option)
- HDMI 2.0 (4K), USB 3.0/2.0, Audio, Serial Interfaces, ARINC 429
- Qualified to DO-160G
Kontron’s ACE Flight 905 Cabin Server has been designed and rigorously qualified to DO-160G environmental conditions for airborne applications used in space constrained installations within the aircraft cabin. The highly reliable server provides the aircraft cabin enhanced performance with the 9th Generation Intel® 6-core processor and integrated graphics and can securely communicate with other elements of the aircraft data distribution systems over its six direct Ethernet ports, ARINC 429 interfaces, and USB 3.0/2.0 ports. The Open Platform Server is application ready and can be used as a head end component of an In-flight Entertainment System, data distribution system or other in-flight communication server application. The integrated graphics supports HDMI 2.0a 4K resolution video display output along with separate audio input/output channels and is the ideal cabin server for server regional, business jet and VIP aircraft.
Eigenschaften
| Form Factor | Small form factor, sealed unit |
| Processor | Intel® 6-Core™ E-2276ML (2.0 GHz), 12MB Cache, Graphics: Intel® UHD Graphics P630 |
| DRAM | 32GB DDR4, ECC |
| Storage | 128GB fixed storage (OS & application) Optional Storage: Removable 2x SSDs (separate ordering options) |
| Operating System | Linux Ubuntu 20.04 LTS; Support for Windows 10 Open Platform (application ready) with integrated driver support and APIs Power Built-In Test (PBIT) |
| Ethernet | 6x 10/100/1000BT Direct Ethernet Ports |
| Bus type | ARINC 429: Four (4) Rx Channels (fixed), Two (2) Tx/Rx (configurable) Channels |
| Video Output | HDMI 2.0a (4K) or DVI (external cable termination dependent) |
| USB | 3x USB 2.0, 1x USB 3.0 |
| Serial | 8x GPI (In), 4x GPO (Out) and 12x GPIO, (SE) LVTTL 4x Serial Ports configurable for RS422 and/or RS485 (user configurable) |
| Audio | 2x Differential Out; 1x Single End (SE) Out 4x Single End (SE) In |
| Weight | 7.4 lbs (3.4 kg) |
| Dimensions (H x W x D) | 3.9” (99 mm) H x 8.5” (216 mm) W x 5.6” (142 mm) D |
| Temperature | -40°C to +70°C |
Downloads
Datasheets
AF905 datasheet
[ ace_flight_905_datasheet.pdf, 1.18 MB, May.24.2023 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
