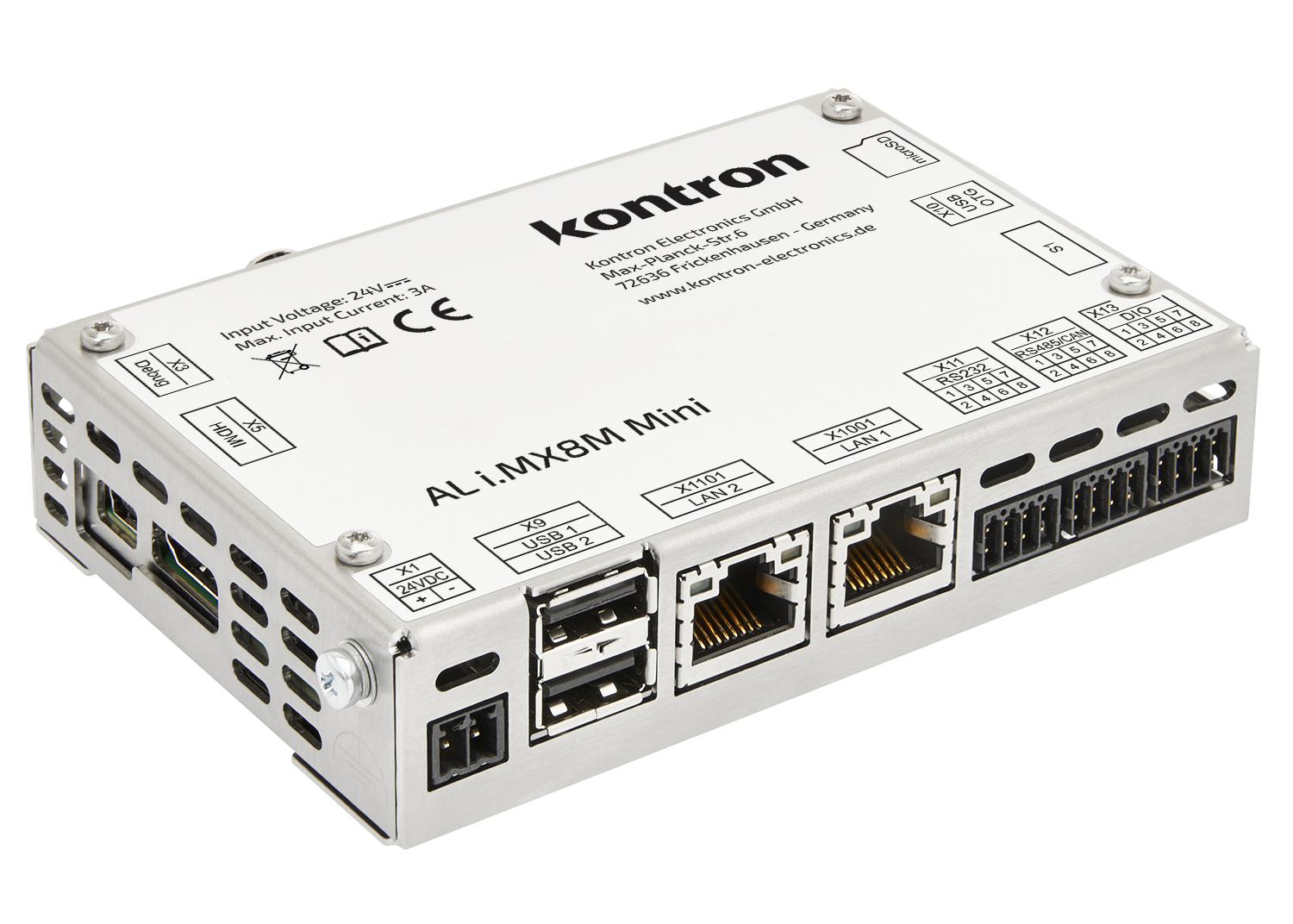

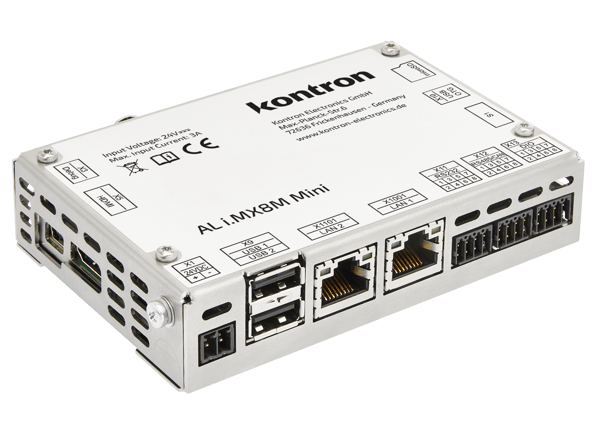

AL i.MX8M Mini
Kompakter, lüfterloser Box-PC
Spezifikationen
- Speicher: LPDDR4-RAM, NOR-Flash, eMMC, 1x microSD-Karten-Slot, nv Memory
- Kommunikation: Ethernet, USB, RS232, RS485, CAN, DIO
- Betriebssystem: Embedded Linux
Eigenschaften
| CPU | i.MX8M Mini 4x Arm® Cortex®-A53 @1.6 GHz, 1x Arm® Cortex®-M4 @400 MHz, 2D GPU and 3D GPU |
| LPDDR4-RAM | 4 GByte (optional 1 GByte, 2 GByte) |
| NOR-FLASH | 2 MByte |
| eMMC | 32 GByte (optional 4 GByte up to 64 GByte) |
| SD CARD | 1x microSD Card Slot |
| NV MEMORY | 8 kB (64 kb) EERAM |
| Ethernet | 1x 1 Gbit/s, 1x 10/100 Mbit/s |
| USB | 2x 2.0 Host, 1x 2.0 OTG |
| Serial | 1x RS232, 1x RS485 |
| CAN | 1x CAN 2.0 B |
| DIO | 4x DIO (24 V up to 800 mA) |
| Power Supply | 24 V DC ±20 % |
| Power Consumption | Linux running <3 W |
| Form Factor | Stainless steel 111 x 25 x 76 mm for mounting on 35mm DIN rail acc. EN 60715 |
| Cooling | fanless, passive |
| Temperature | Range: 0 °C ... +55 °C, ambient, non condensing |
| Protection Class | IP20 |
| Approvals | CE |
| Bootloader | U-Boot |
| Operating System | Embedded Linux (Yocto Distribution) |
| RTC | 5 ppm accuracy |
| RTC BUFFERING | CR1220 |
| Audio | 1x Buzzer |
| Security | HAB Secure Boot, TrustZone, True RNG, RSA up to 4096, AES-128/192/256, 3DES, ARC4, MD-5, SHA up to 256, ECC, Secure JTAG |
