CP-RIO6-B / CP-RIO6-B216
4TE Rear I/O Interface für eine 6HE CompactPCI Karte (CP6001, CP6002, CP6003 & CP6004)
Spezifikationen
- Einfache Slotbreite (4TE) #Onboard-Steckverbinder für 4x SATA, 2x USB 2.0 Flash Disk, 1x RS232 #USB Flash Support #Rear-Panel Konnektoren für 2x Ethernet (not B216), DVI, HDMI, 2x USB, HD Audio, RS232 #Software Support Pakete für Windows & Linux

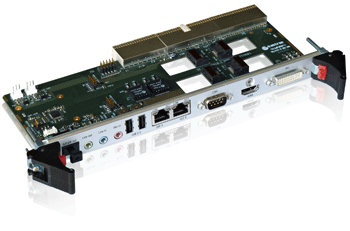

Das CP-RIO6-B ist ein 4TE Rear I/O Modul für die CompactPCI Prozessorboards CP6001, CP6002, CP6003 & CP6004 und entspricht Kontrons RTM Pinout Spezifikation. Das Rear I/O Modul bietet USB, Ethernet, eine serielle Schnittstelle, DVI, HDMI, USB Flash und SATA Anschluss. Die CP-RIO6-B216 Variante ist PICMG2.16 konform mit zwei Rear IO Gigabit Ethernet Kanälen zur Backplane ausgelegt.
Eigenschaften
| Additional | Headers for FAN control, High Definition Audio |
| Ethernet | 2x GbE (RJ45) at rear panel, CP-RIO6-B216 ETH to backplane |
| Flash Disk | 2x USB Flash headers |
| Hard Disk | No local hard disk |
| Keyboard | n/a |
| Mouse | n/a |
| SATA | 4x SATA cable connectors |
| Serial | 1x RS232 at rear panel; 1x headers for RS422 |
| Temperature/Humidity | 0-60°C, 93% rel. humidity |
| USB | 2x type A connector at rear panel, 2x USB flash disk connector |
| Video Output | DVI-D and HDMI connector at rear panel |
