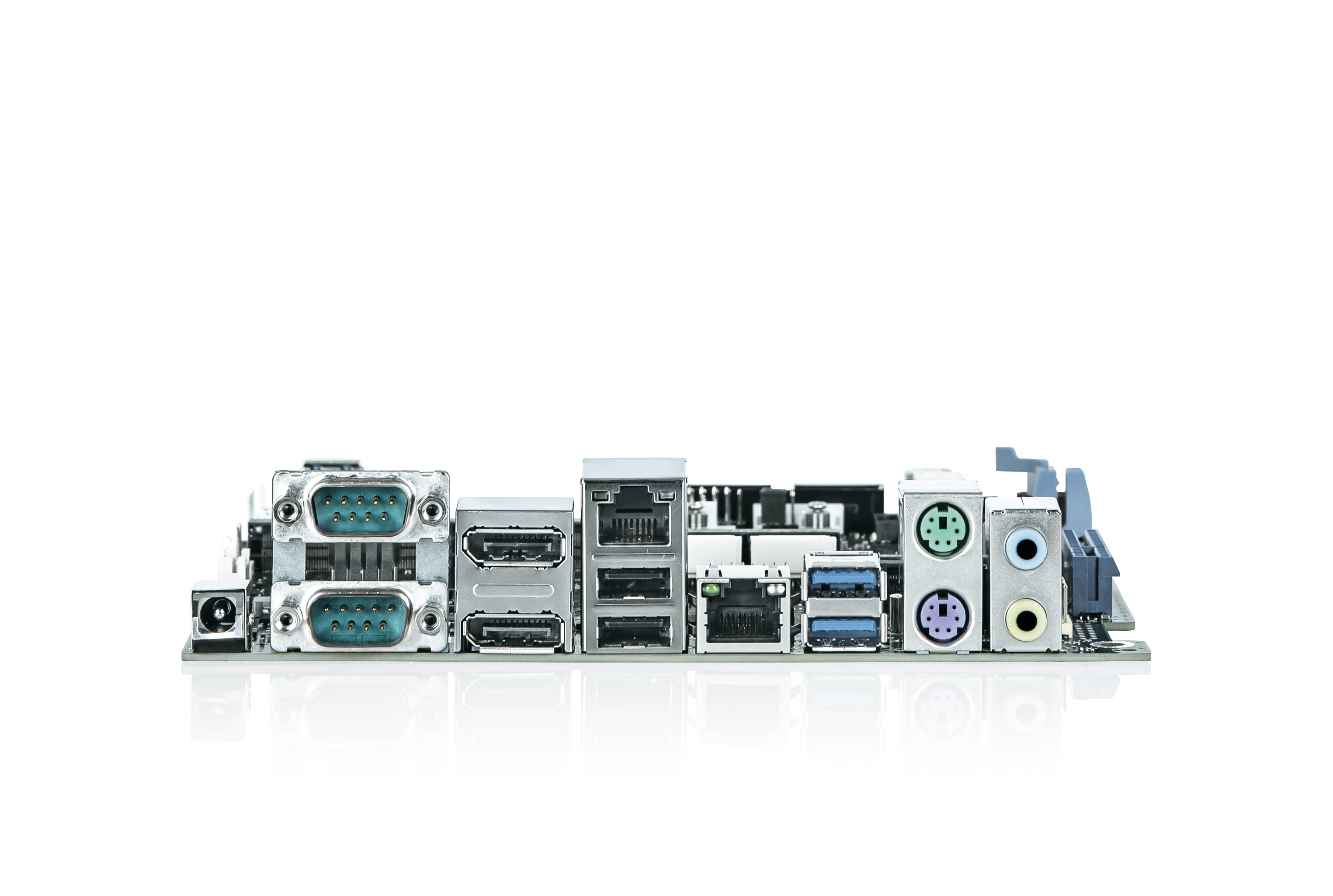

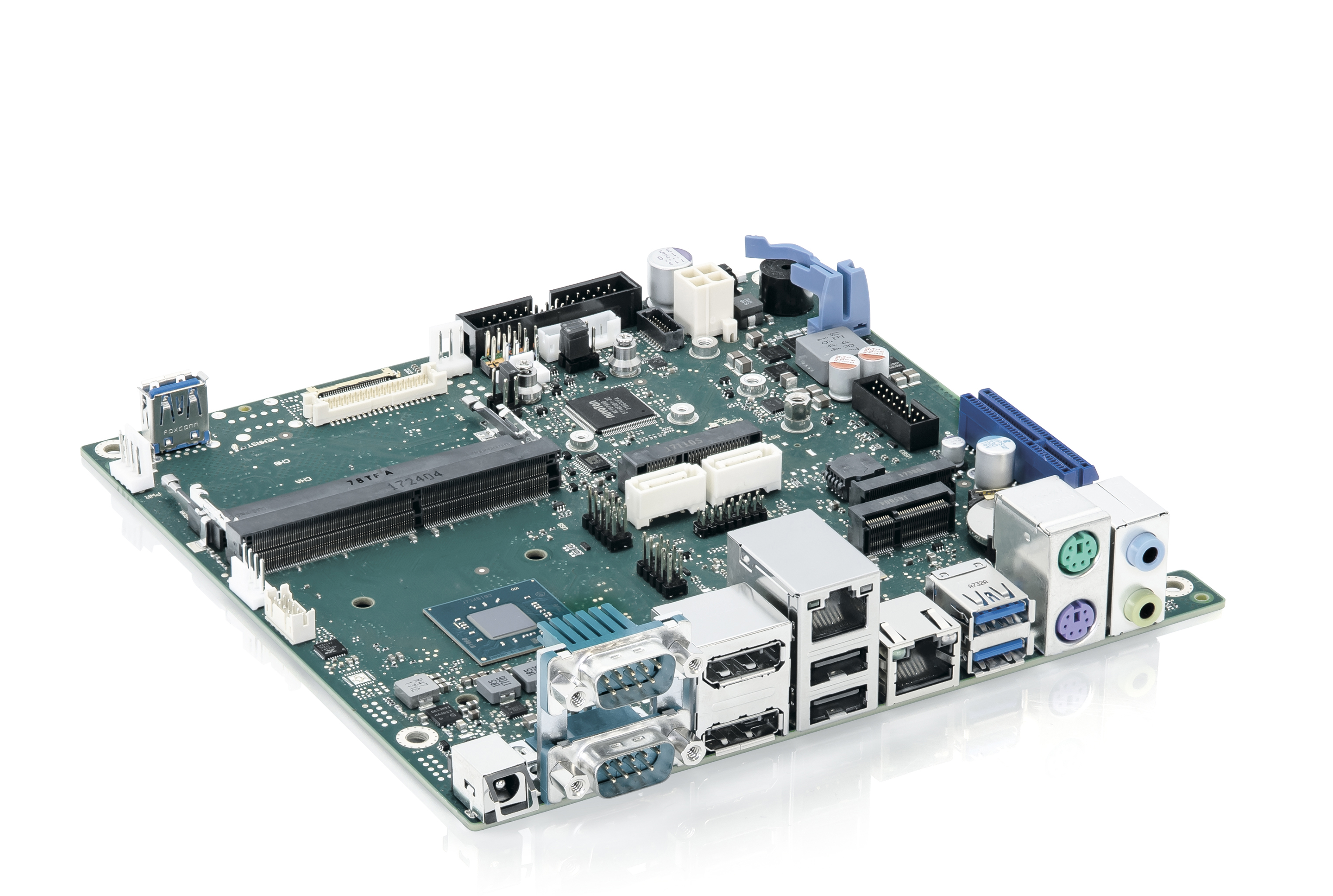

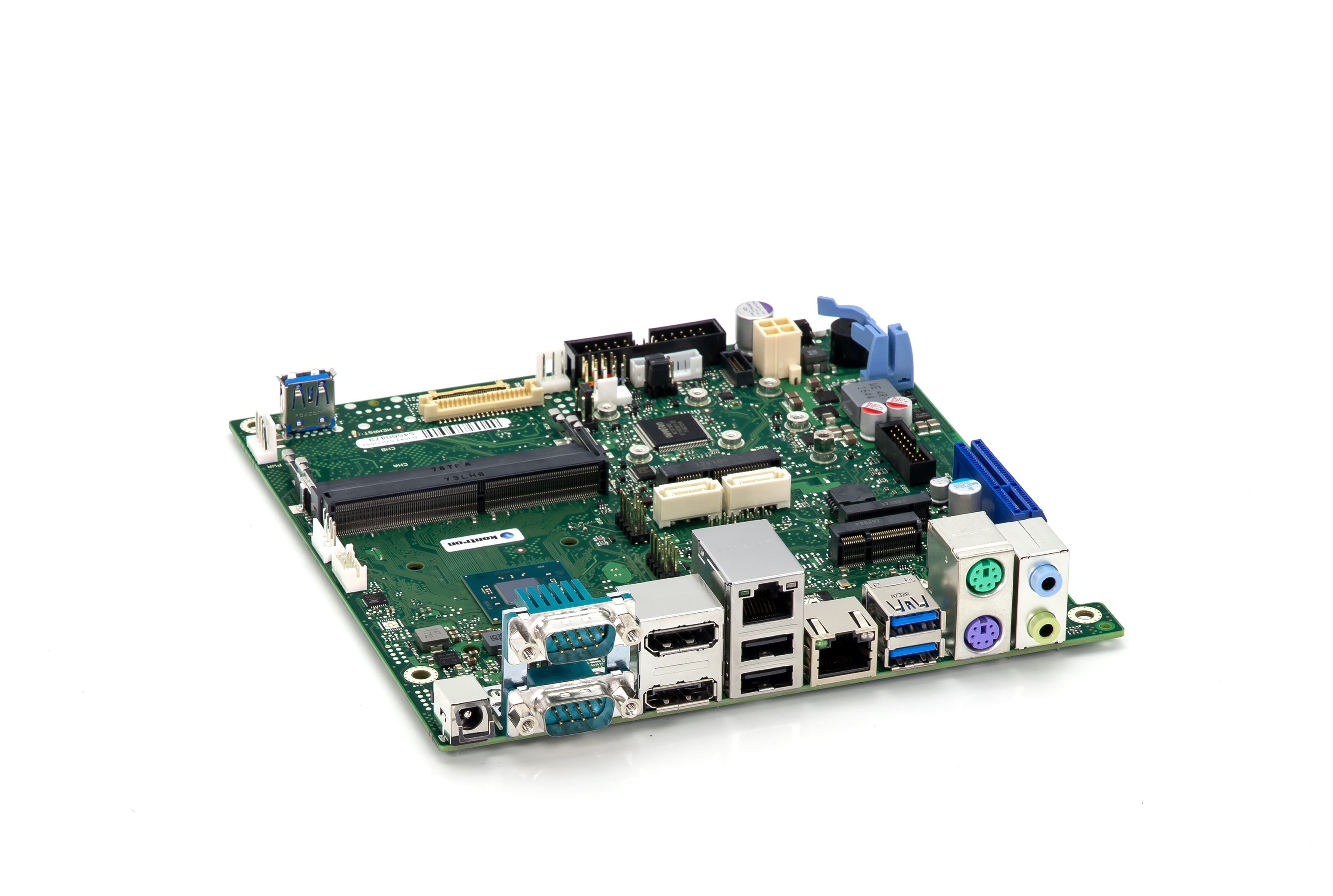

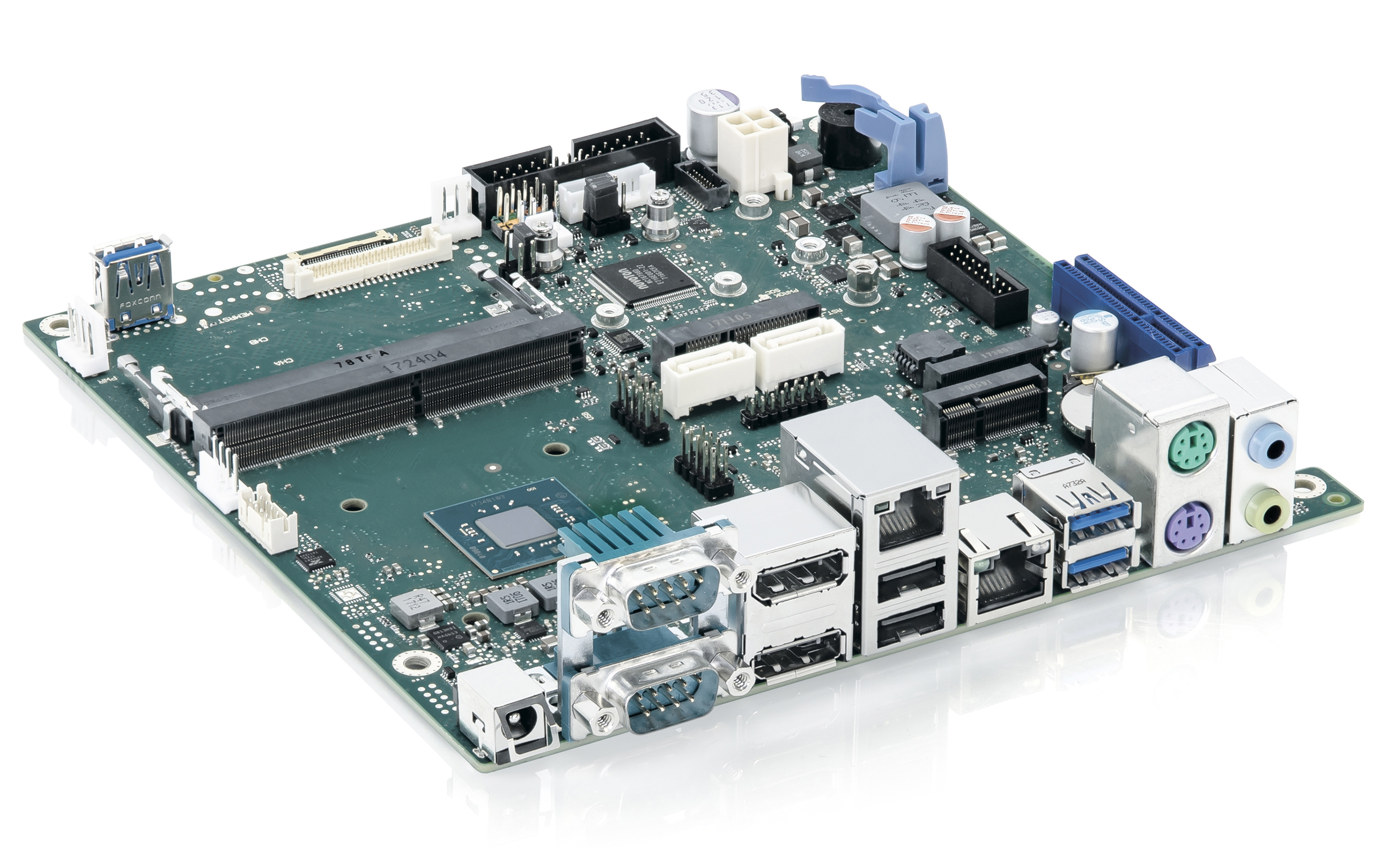

D3543-S mITX
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005
Mouseover Zoom loading...
Spezifikationen
- Dual DP V1.2a, LVDS & eDP V1.4
- M.2 SSD & M.2 WLAN-Steckplätze integriert
- HW-Watchdog, GPIO & PCIe-Steckplätze
- WideRange DC-Stromversorgung (8V-36V)
- Konzipiert für lüfterlosen Betrieb
Das Industrie-Motherboard D3543-S mITX unterstützt die Intel® Celeron®-Prozessoren J4005, J4105 sowie den Intel® Pentium®-Prozessor J5005. Außerdem ist es mit Erweiterungssteckplätzen für PCIe, M.2 und Anschlüssen wie USB 3.1 Gen1, 2x DP V1.2 und 4x COM ausgestattet. Das D3543-S mITX bietet höchste Funktionalität bei einem 24/7-Betrieb und einen erweiterten Betriebstemperaturbereich von 0°C bis 60°C.
Sie suchen ein Mini-STX-Motherboard, das die gleichen Intel® Prozessoren unterstützt? Entdecken Sie jetzt das Geschwistermodell D3544-S mSTX!
Vorzüge von Kontron Motherboards:
- Höchste Qualität dank deutscher Entwicklung und Produktion
- Striktes Lifecycle Management und zuverlässige Produktpflege
- Umfangreiches Feature- und Tool-Set
- Exzellenter technischer Support
- Geringe Gesamtkosten-Betrachtung
Eigenschaften
| Processor | Intel® Celeron® Processor J4005 (DC @2.0 GHz / 2.7 GHz) Intel® Celeron® Processor J4105 (QC @1.5 GHz / 2.5 GHz) Intel® Pentium® Silver Processor J5005 (QC @1.5 GHz / 2.8 GHz) |
| Chipset | SoC |
| Main Memory | 2x DDR4 2400 SO DIMM up to 24GByte |
| Graphics Controller | Integrated Intel® UHD Graphics 600/605 |
| Display | 2x DP V1.2a |
| Audio Controller | Realtek ALC671 |
| Audio | 5.1-channel, High Definition Audio Codec |
| Ethernet | 1x Intel® i210 with 10/100/1000 MBit/s, 1x Realtek RTL8111G with 10/100/1000 Mbit/s |
| USB | 2x USB 2.0, 4x USB 2.0 (by header) 2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header) 1x USB 3.1 Gen1 stick socket |
| Serial | 2x RS-232; 1x RS-232 (limited feature set, by header); 1x RS-232/RS-422/RS-485 (limited feature set, by header) |
| Available I/Os | 1x 8Bit GPIO (by header) 1x LPT (by header) |
| SATA | 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 Key B socket (2242/2260/2280); PCIe/SATA, 1 lane 1x M.2 Key-E (2230) 1 x Mini-PCIe (halfsize/fullsize) 1 x PCIe x4 |
| Power connector | External / Internal DC-In |
| Input Voltage | 8V-36V |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 2Level HW Watchdog (BIOS BOOT / OS) |
| Real Time Clock | integrated; CMOS Battery buffered |
| Cooling | 2x PWM-Fan (CPU/System) Passive Cooling supported |
| Operating System | Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-ITX (170 x 170 mm / 6.7" x 6.7") |
| Operation Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1 (upon request), CE Class B, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Solution Brief
UPF Offload with Truminds and Kontron
Enterprises with a need for highly-reliable, business-critical mobile communications are increasingly adopting private cellular networks in preference to public cellular or WiFi alternatives. In order for these networks to be cost-effective, it’s important for them to maximize the number of client devices that can be supported in a small-footprint server.
Thus, by leveraging Napatech’s SmartNIC-based UPF offload solution running on an edge server from Kontron, Truminds has op- timized the cost-performance of their private cellular network infrastructure for markets like healthcare, government offices, utilities, universities and airports.
[ solutionbrief_upf_offload_with_truminds_and_kontron.pdf, 571.05 KB, Jan.26.2024 ]
Datasheets
Datasheet D3543-S mITX
[ d3543-s-mitx_20191120_datasheet.pdf, 978.8 KB, Jun.01.2021 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [eingeschränkter Download]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
D3543-S1 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 | |
|
D3543-S2 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 | |
|
D3543-S3 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 |
Zubehör
|

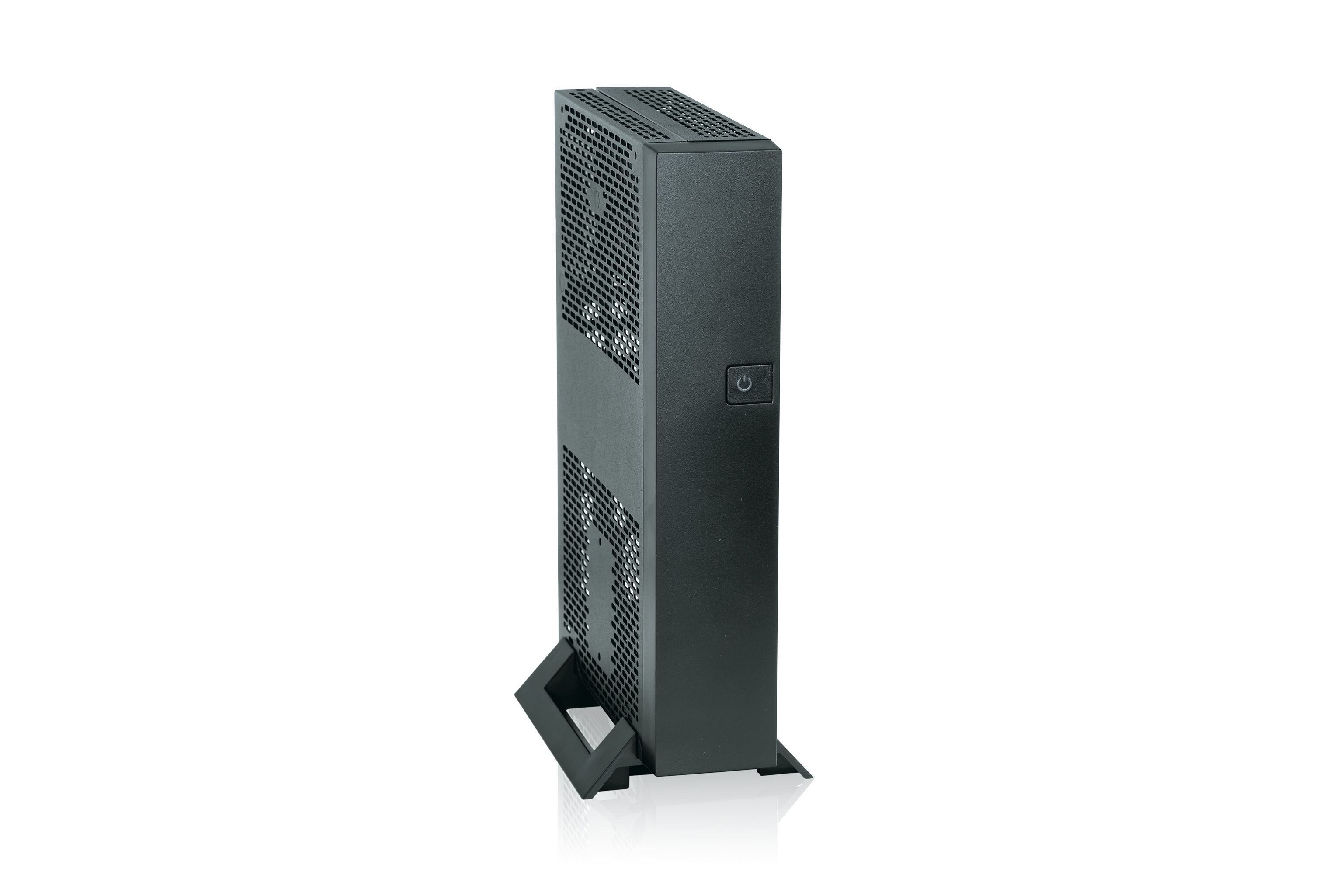

SMARTCASE™ S700 S26361-F5000-J005 |
|
IPC mini-ITX Chassis incl. illuminated power button, HDD cage with 4-pin system fan, SATA and drive power cable, wallmount, stands for vertical/horizontal position, DC-In connector lock, non branded! | |
|

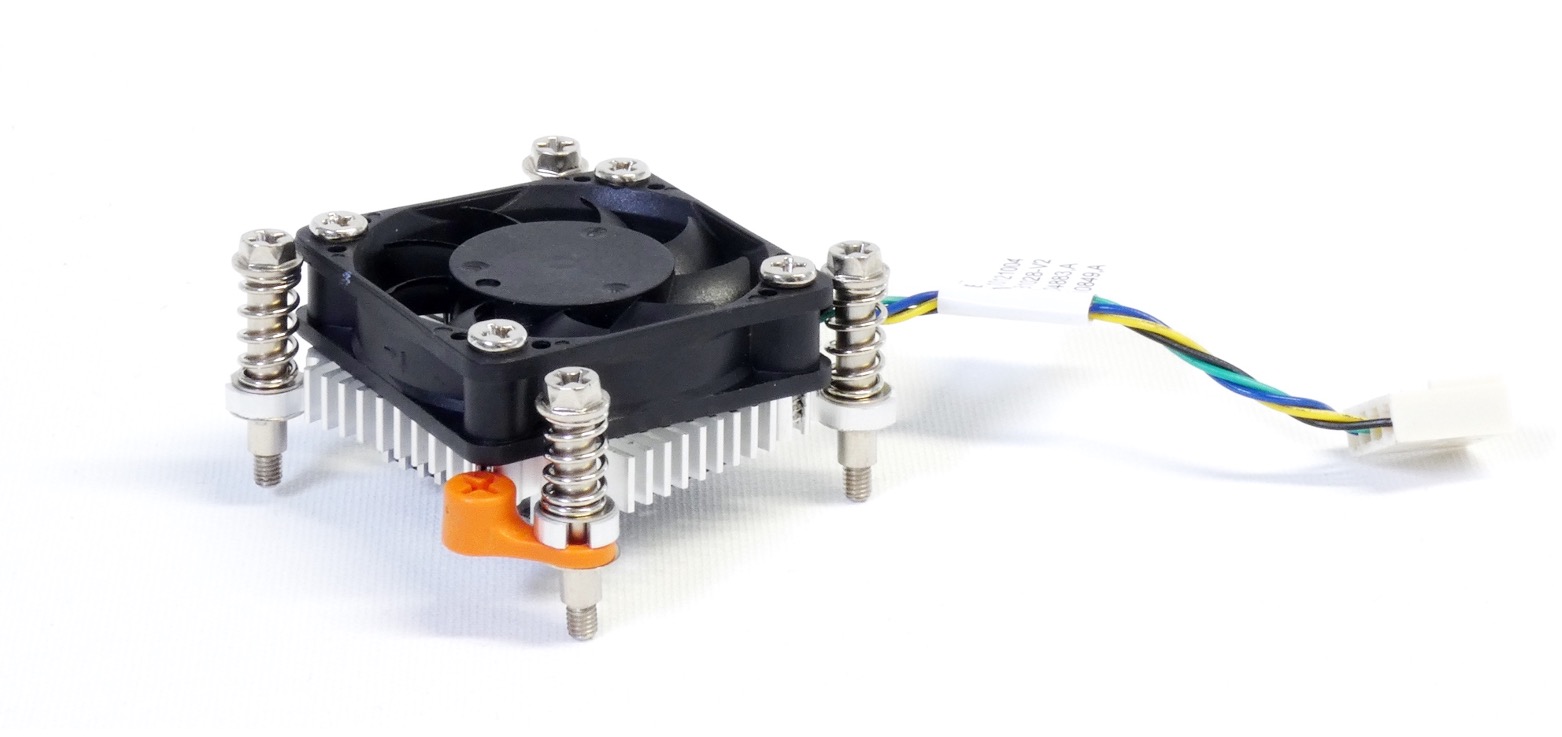

Active Cooler 10W GLK S26361-F5000-C009 |
|
Active cooler suitable for D3543-S and related SMARTCASE™ S700 chassis | |
|

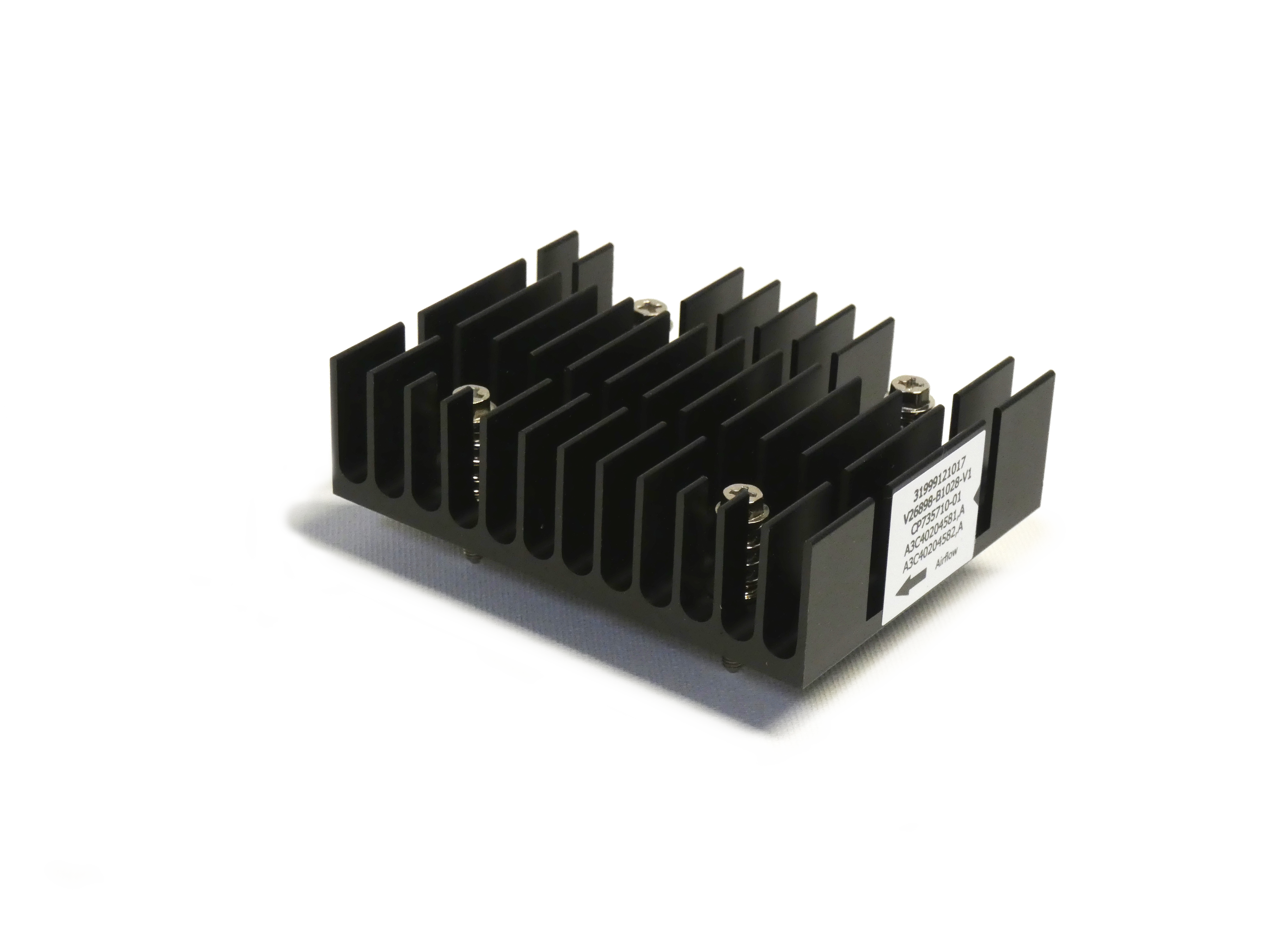

Passive Cooler 10W GLK S26361-F5000-C010 |
|
Passive heatsink suitable for D3543-S and related SMARTCASE™ S700 chassis | |
|
AC Adapter S26361-F5000-P006 |
|
19V / 3.42A, 65W - w/o power cord | |
|
Internal PSU for chassis Kit S26361-F5000-P004 |
|
AC Adapter, 12V / 5.4A, 65W, low profile extension card format | |
|
DrivePowerCable S26361-F5000-K001 |
|
Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm) | |
|

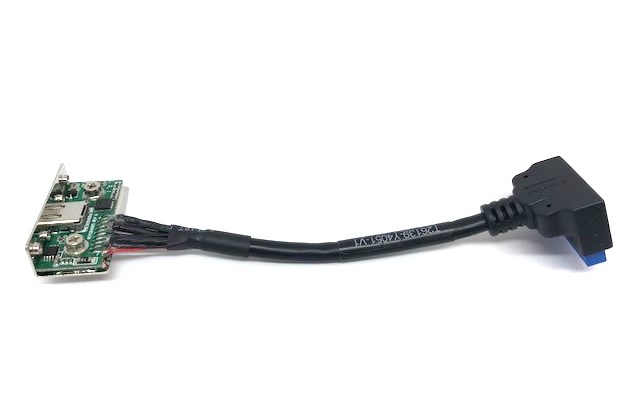

USB Typ-C Extension Cable S26361-F5000-K008 |
|
USB3.1 gen1, length = 140mm; max. load 5V/800mA | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
Risercard S26361-F5000-R006 |
|
1 x PCIe x4 | |
|
4 x COM Extension Board S26361-F5000-R010 |
|
provides 4x COM RS232 ports (incl. RS422/485- if application software is installed) | |
|

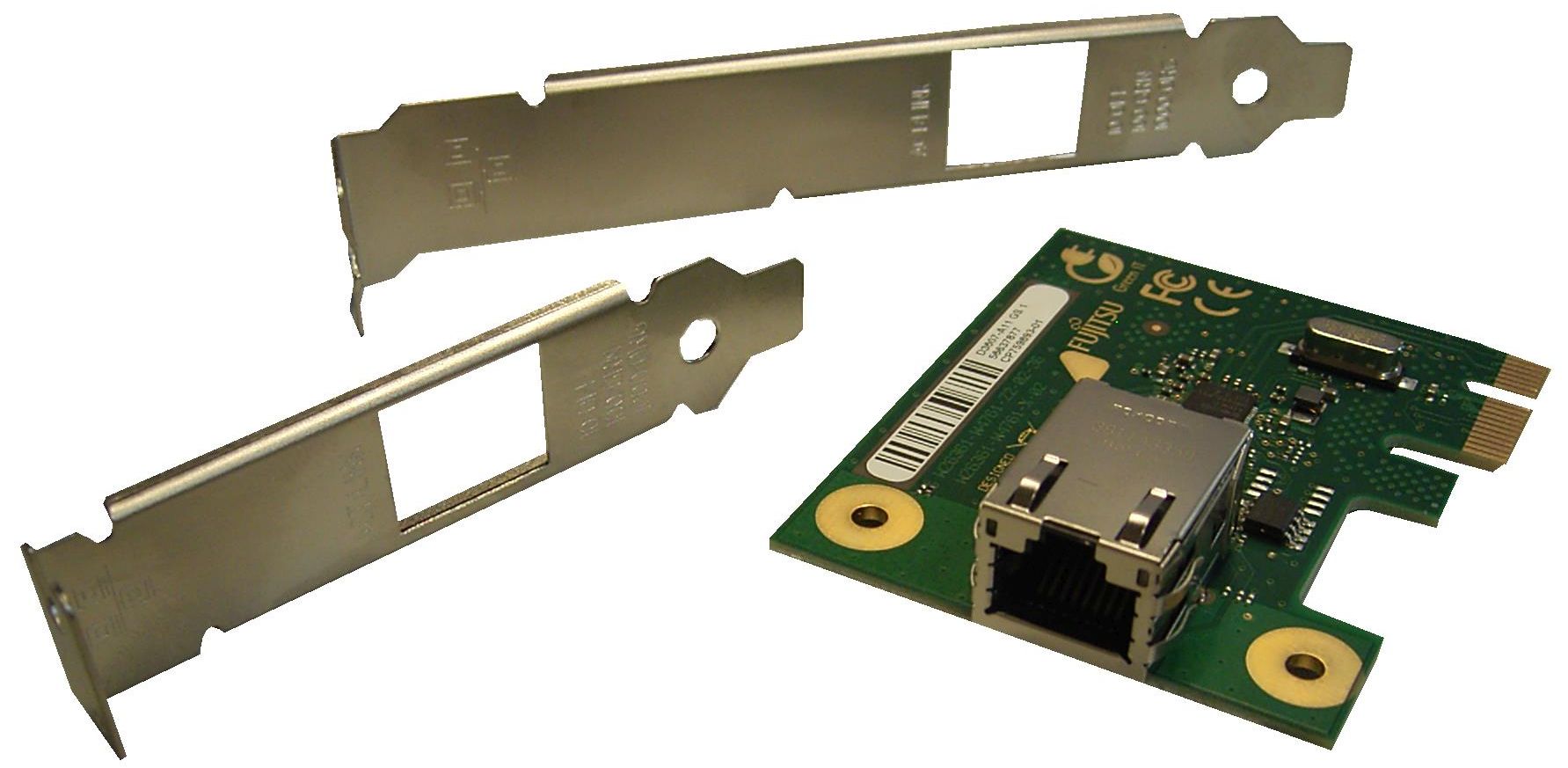

PCIe x1 LAN Controller S26361-F5000-R011 |
|
