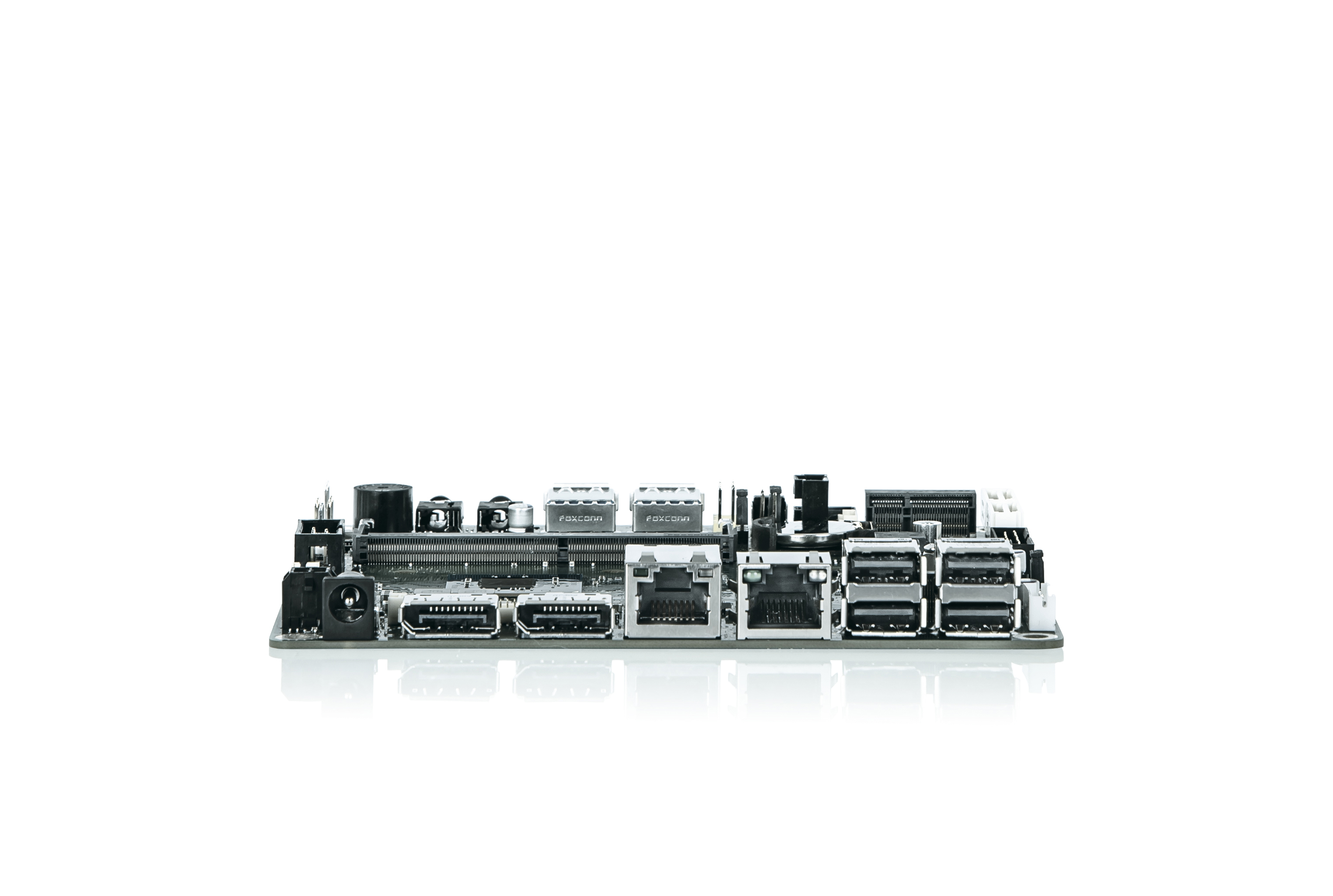

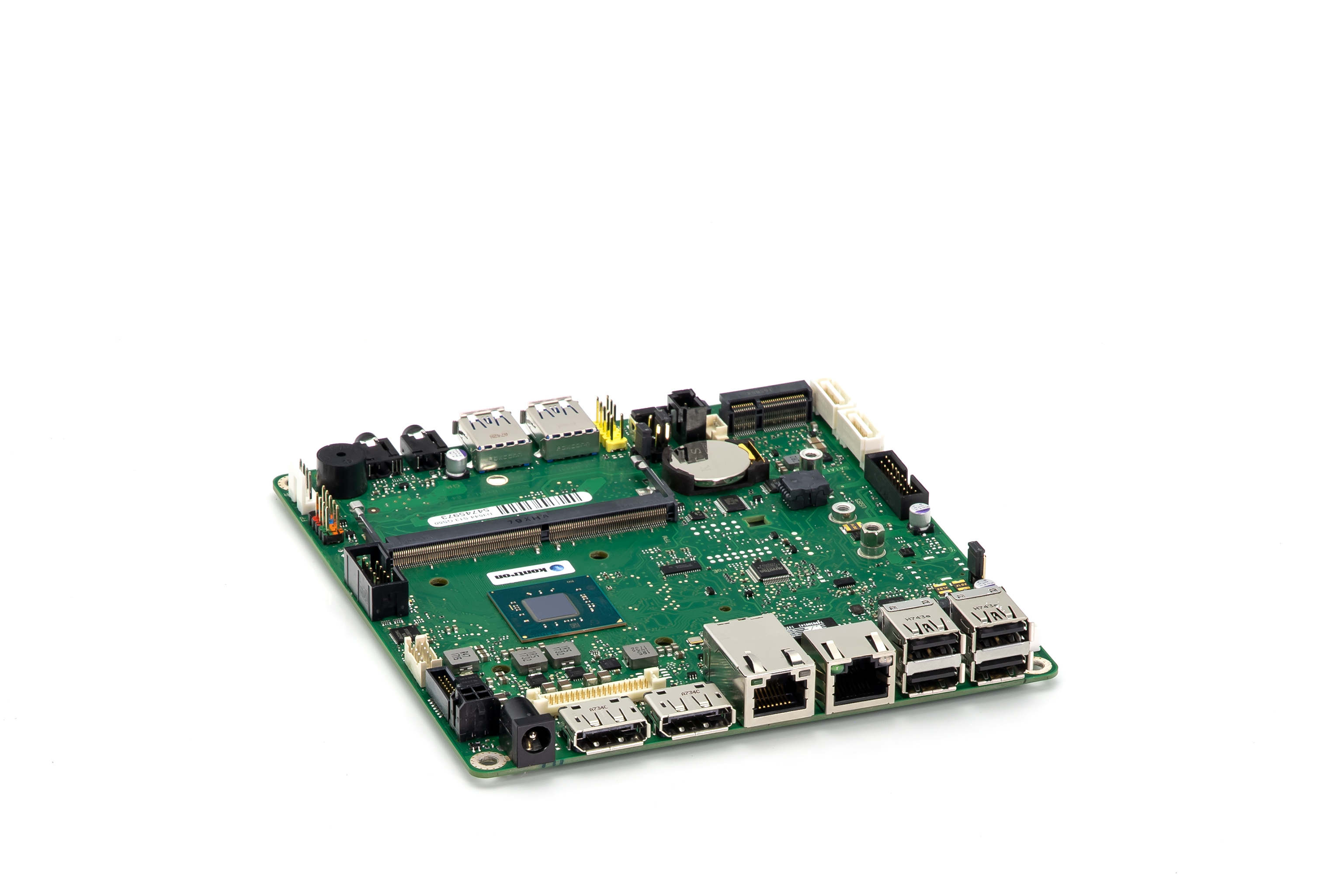

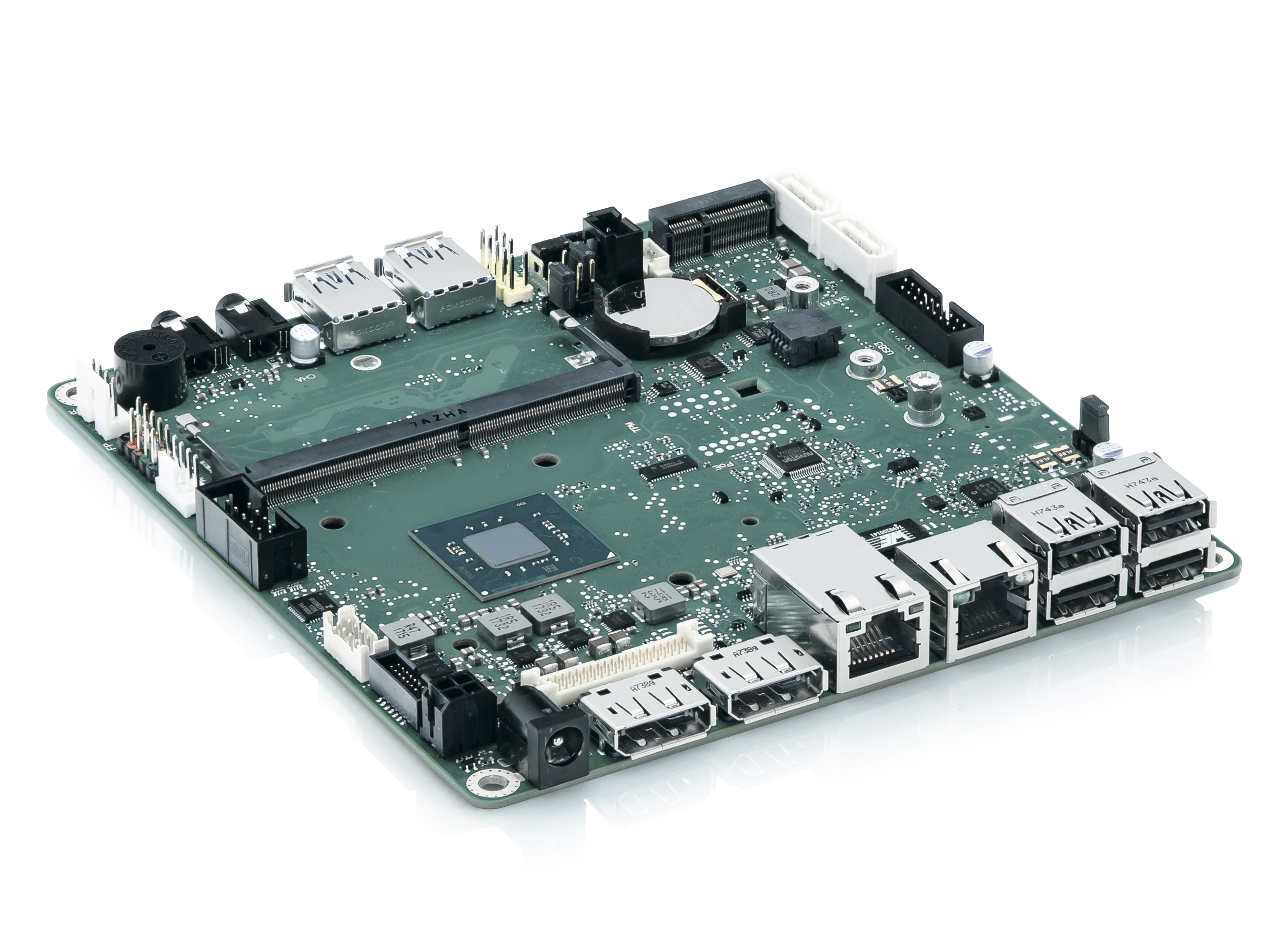

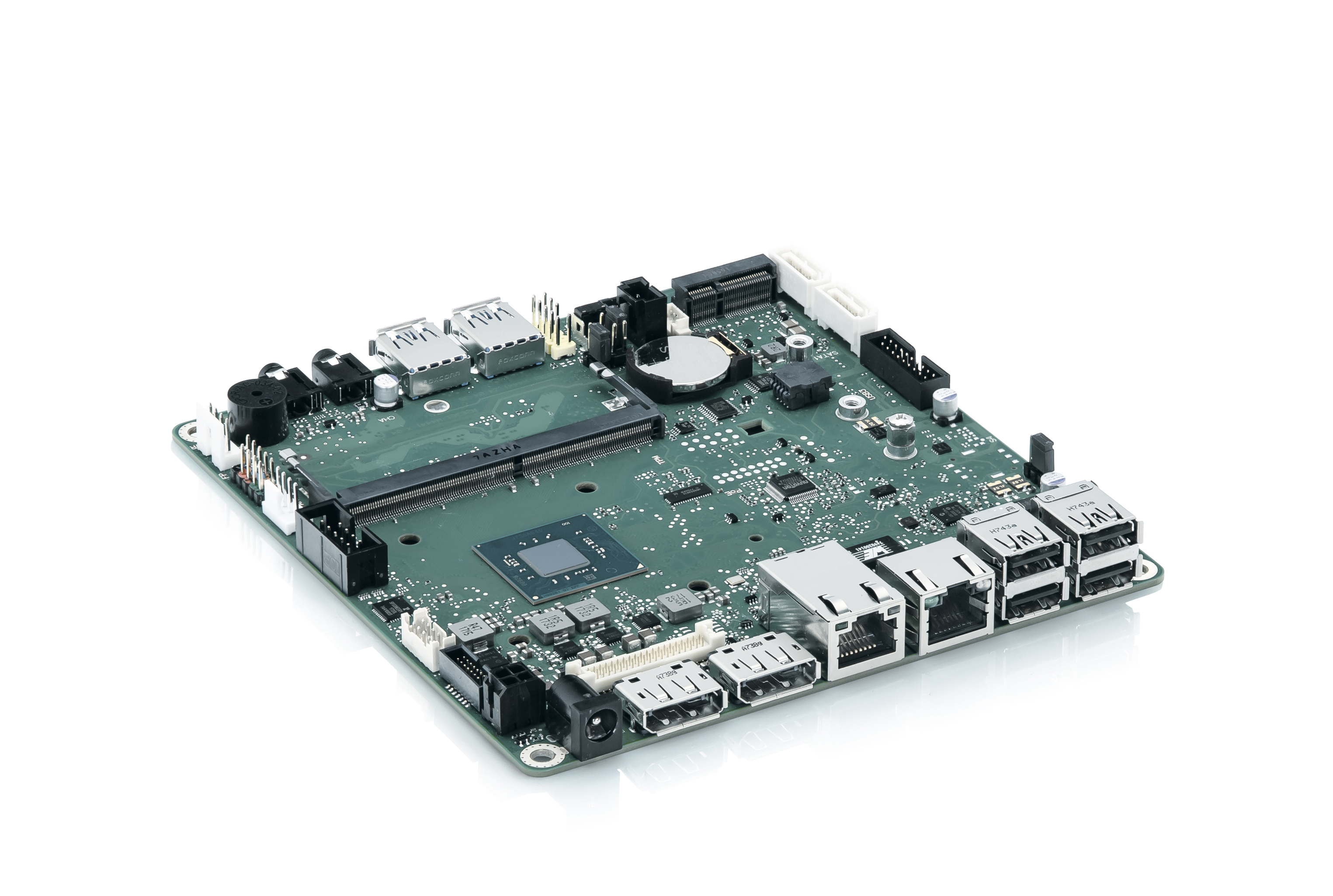

D3544-S mSTX
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005
Mouseover Zoom loading...
Spezifikationen
- Dual DP V1.2a, LVDS, eDP
- M.2 SSD & M.2 WLAN-Steckplätze
- HW-Watchdog & GPIO
- WideRange DC-Stromversorgung (8V-24V)
- Konzipiert für den lüfterlosen Betrieb
Das Industrie-Motherboard D3544-S mSTX unterstützt die Intel® Celeron®-Prozessoren J4005 & J4105 sowie den Intel® Pentium®-Prozessor J5005. Trotz des kleinen Formfaktors bietet das D3544-S mSTX beste Grafikleistung mit DP-Anschlüssen für bis zu 4K-Displays. Es bietet höchste Funktionalität, unterstützt den 24/7-Betrieb und einen erweiterten Betriebstemperaturbereich von 0°C bis 60°C bei geringer Leistungsaufnahme.
Sie sind auf der Suche nach einem Mini-ITX-Motherboard, das die gleichen Intel® Prozessoren unterstützt? Entdecken Sie jetzt das Geschwistermodell D3543-S mITX!
Vorzüge von Kontron Motherboards:
- Höchste Qualität dank deutscher Entwicklung und Produktion
- Striktes Lifecycle Management und zuverlässige Produktpflege
- Umfangreiches Feature- und Tool-Set
- Exzellenter technischer Support
- Geringe Gesamtkosten-Betrachtung
Eigenschaften
| Processor | Intel® Celeron® Processor J4005/J4105 & Intel® Pentium® Silver Processor J5005 |
| Chipset | SoC |
| Main Memory | 1x DDR4 2400 SO-DIMM up to 16GByte |
| Graphics Controller | Integrated Intel® UHD Graphics 600/605 |
| Display | 2x DP V1.2a |
| Audio Controller | Realtek ALC671 |
| Audio | 5.1-channel; High Definition Audio Codec |
| Ethernet | 1x Intel® i210 with 10/100/1000 MBit/s, 1x Realtek RTL8111G with 10/100/1000 Mbit/s |
| USB | 4x USB 2.0, 1x USB 2.0 (by header) 2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header) |
| Serial | 1x RS-232 (limited feature set, by header); 1x RS-232/RS-422/RS-485 (by header) |
| Available I/Os | 1x 8Bit GPIO (by header) |
| SATA | 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 Key B socket (2242/2260/2280); PCIe/SATA, 1 lane 1x M.2 Key-E (2230) |
| Power connector | External / Internal DC-In |
| Input Voltage | 8V-24V |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 2Level HW Watchdog (BIOS BOOT / OS) |
| Real Time Clock | integrated; CMOS Battery buffered |
| Cooling | 1x PWM-Fan Passive Cooling supported |
| Operating System | Windows 10 Linux-64 |
| Mechanical Dimensions | Mini-STX (140 x 148 mm / 5.5" x 5.8") |
| Operation Temperature | 0°C-60°C |
| Humidity | 5%-85% |
| Certifications | cTÜVus acc. IEC62368-1 (upon request), CE Class B, FCC-B verified |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet D3544-S mSTX
[ d3544-s-mstx_datasheet.pdf, 2.33 MB, Nov.17.2022 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [eingeschränkter Download]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
D3544-S1 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 | |
|
D3544-S2 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 | |
|
D3544-S3 |
|
Industrie-Motherboard mit Intel® Celeron® Prozessoren J4005/J4105 & Intel® Pentium® Silver Prozessor J5005 |
Zubehör
|

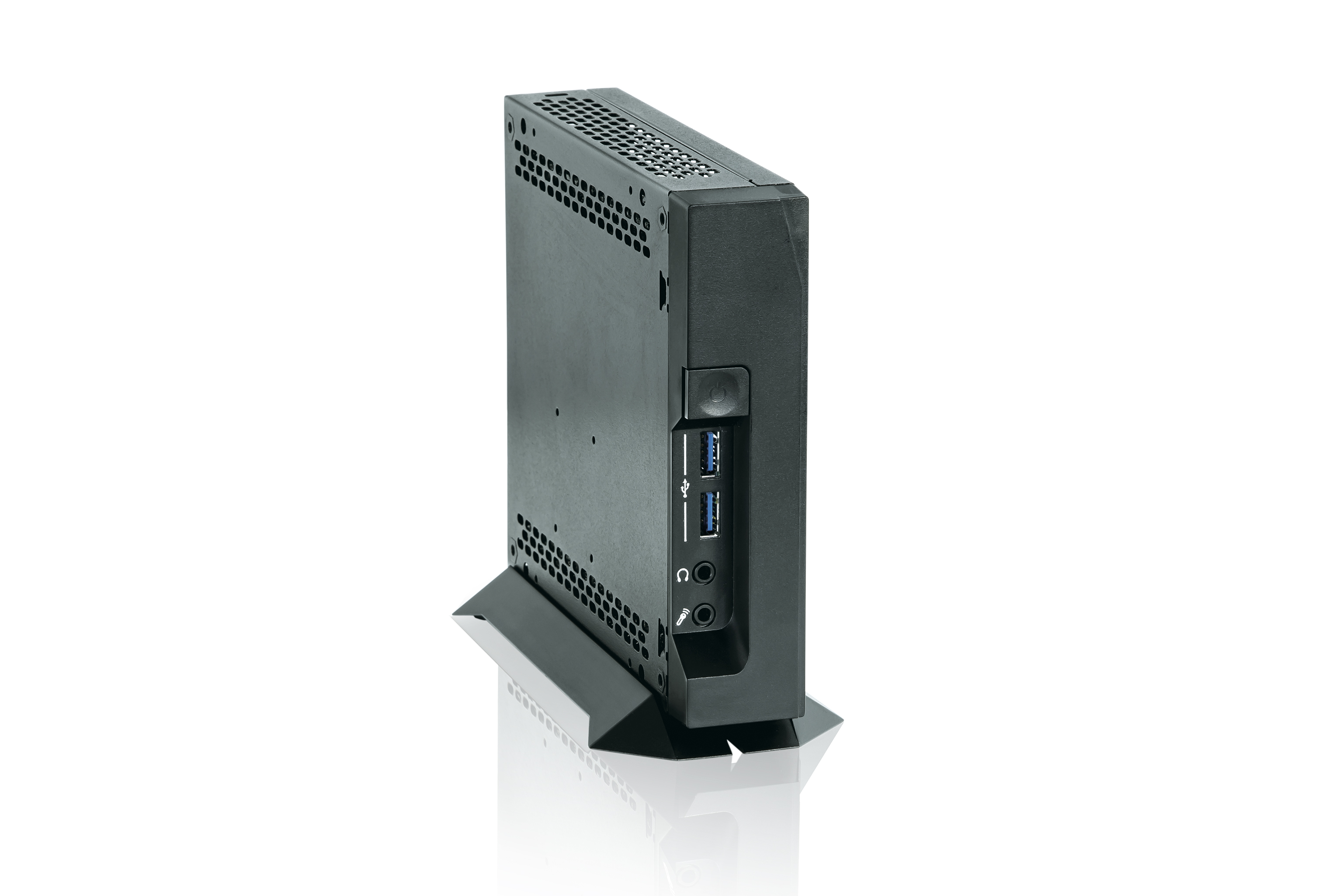

SMARTCASE™ S500 S26361-F5000-J004 |
|
IPC mini-STX Chassis incl. illuminated power button, stands for vertical/horizontal position, prepared for easy WLAN integration, non branded! | |
|

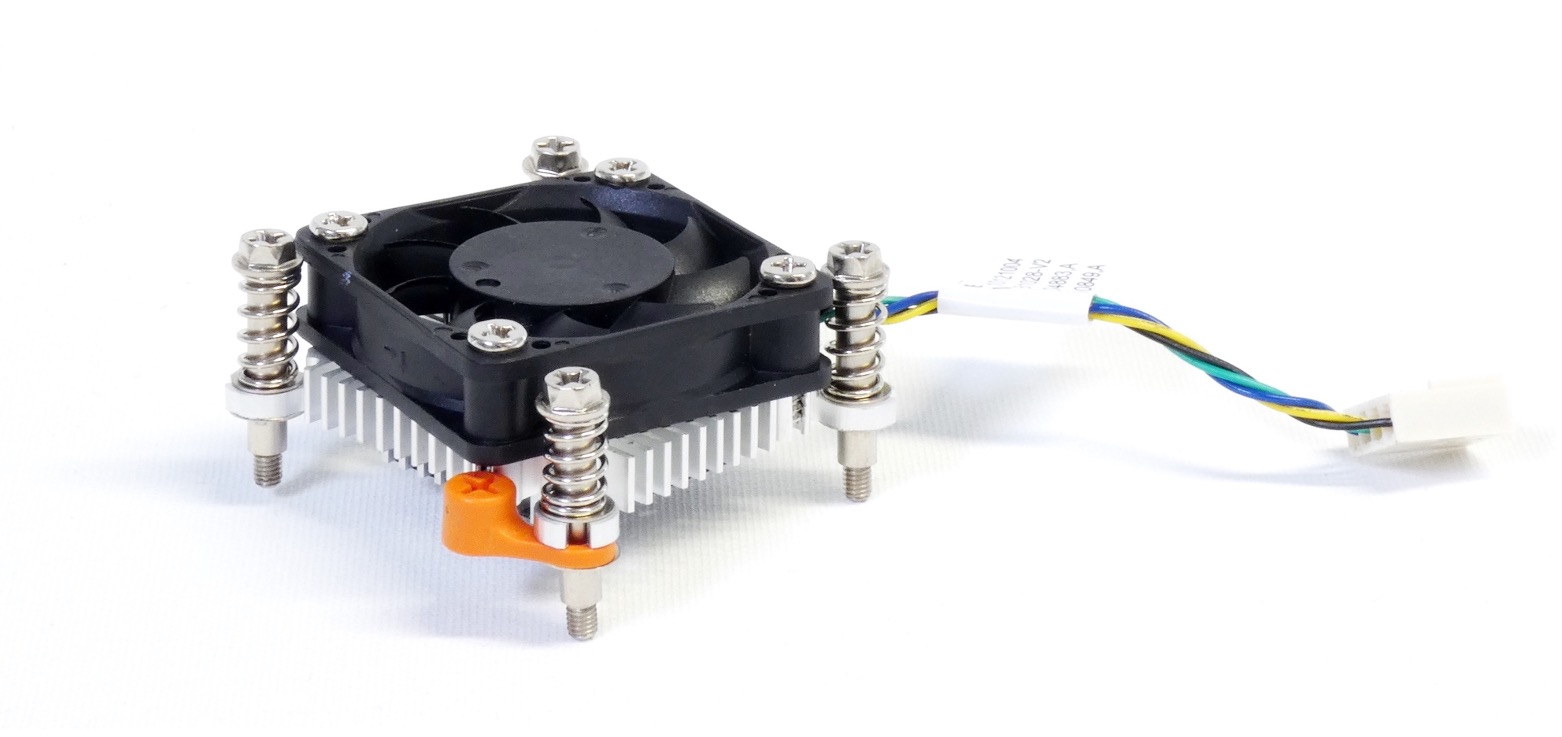

Active Cooler 10W GLK S26361-F5000-C009 |
|
Active cooler suitable for D3544-S and related SMARTCASE™ S500 chassis | |
|
Passive Cooler 10W GLK S26361-F5000-C010 |
|
Passive heatsink suitable for D3544-S and related SMARTCASE™ S500 chassis | |
|
AC Adapter S26361-F5000-P006 |
|
19V / 3.42A, 65W - w/o power cord | |
|
DrivePowerCable S26361-F5000-K001 |
|
Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm) | |
|
COM Cable short w/o bracket S26361-F5000-K007 |
|
w/o slot bracket, length = 120mm; new 2mm pitch internal connector | |
|

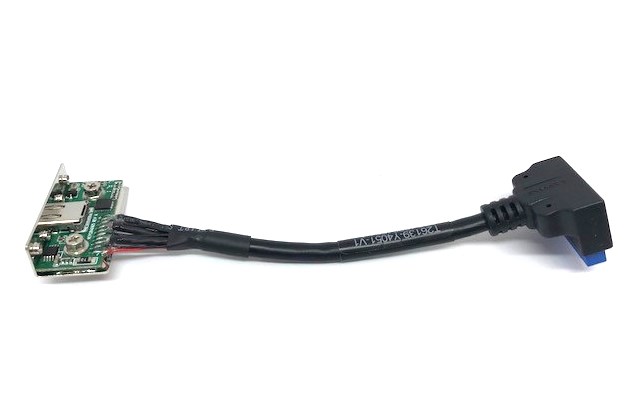

USB Typ-C Extension Cable S26361-F5000-K008 |
|
USB3.1 gen1, length = 140mm; max. load 5V/800mA | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
Second COM Cable active S26361-F5000-K011 |
|
short w/o bracket | |
|
4 x COM Extension Board S26361-F5000-R010 |
|
provides 4x COM RS232 ports (incl. RS422/485- if application software is installed) | |
|

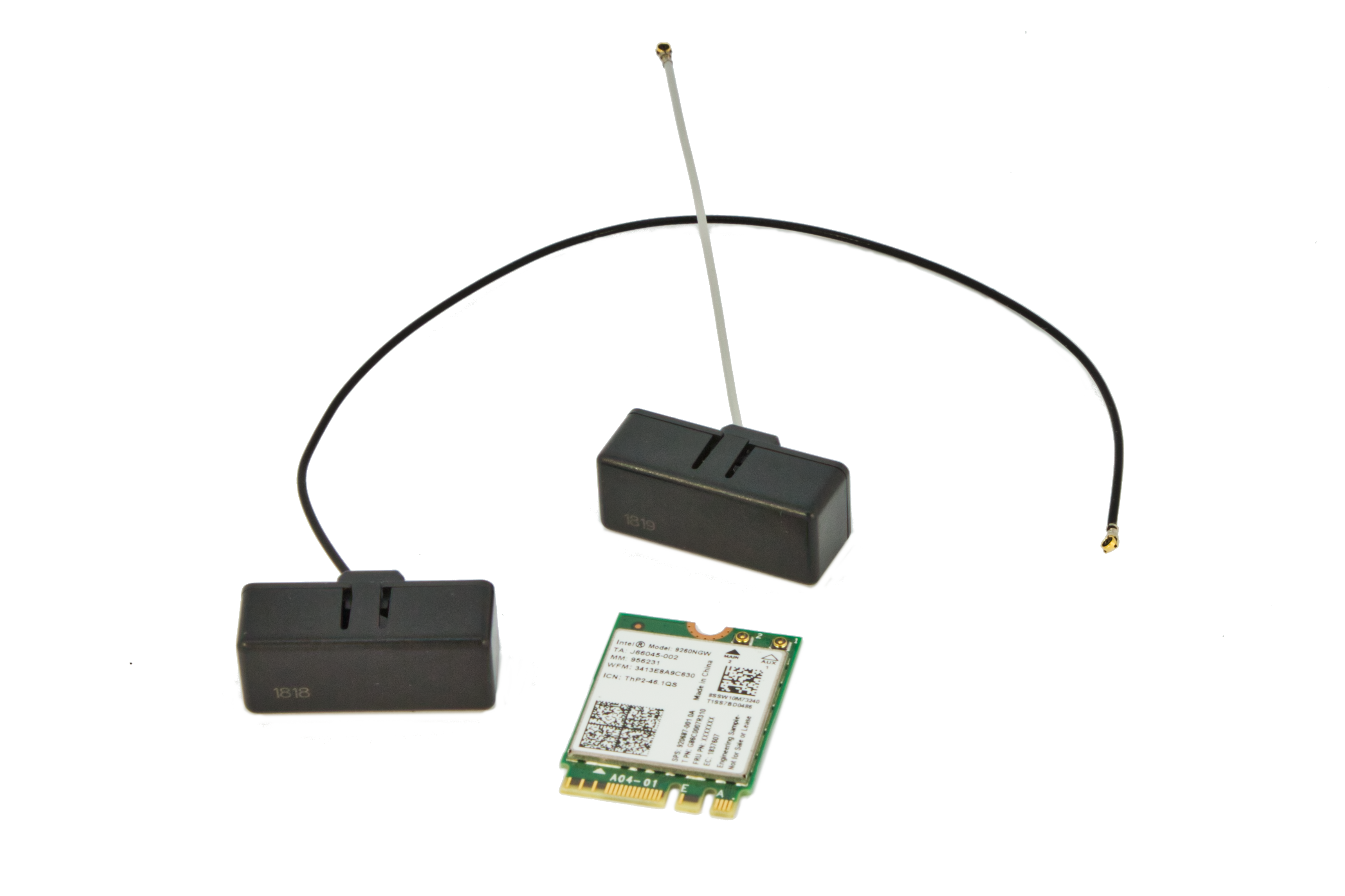

WLAN Kit for SMARTCASE™ S500/S520 S26361-F5000-W002 |
|
WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable) | |
|
WLAN Kit for SMARTCASE™ S500/S520 S26361-F5000-W005 |
WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable) | ||
|
Wall Mount Bracket for SMARTCASE™ S500 S26361-F5000-X001 |
|
20x Bracket (for 10 chassis) incl. Screws | |
|
VESA mount SMARTCASE™ S5xx S26361-F5000-X002 |
|
"E-Line bracket" | |
|
DC-In Holder for SMARTCASE™ 500 S26361-F5000-X003 |
|
10 x Holder (for 10 chassis) incl. Screws |
