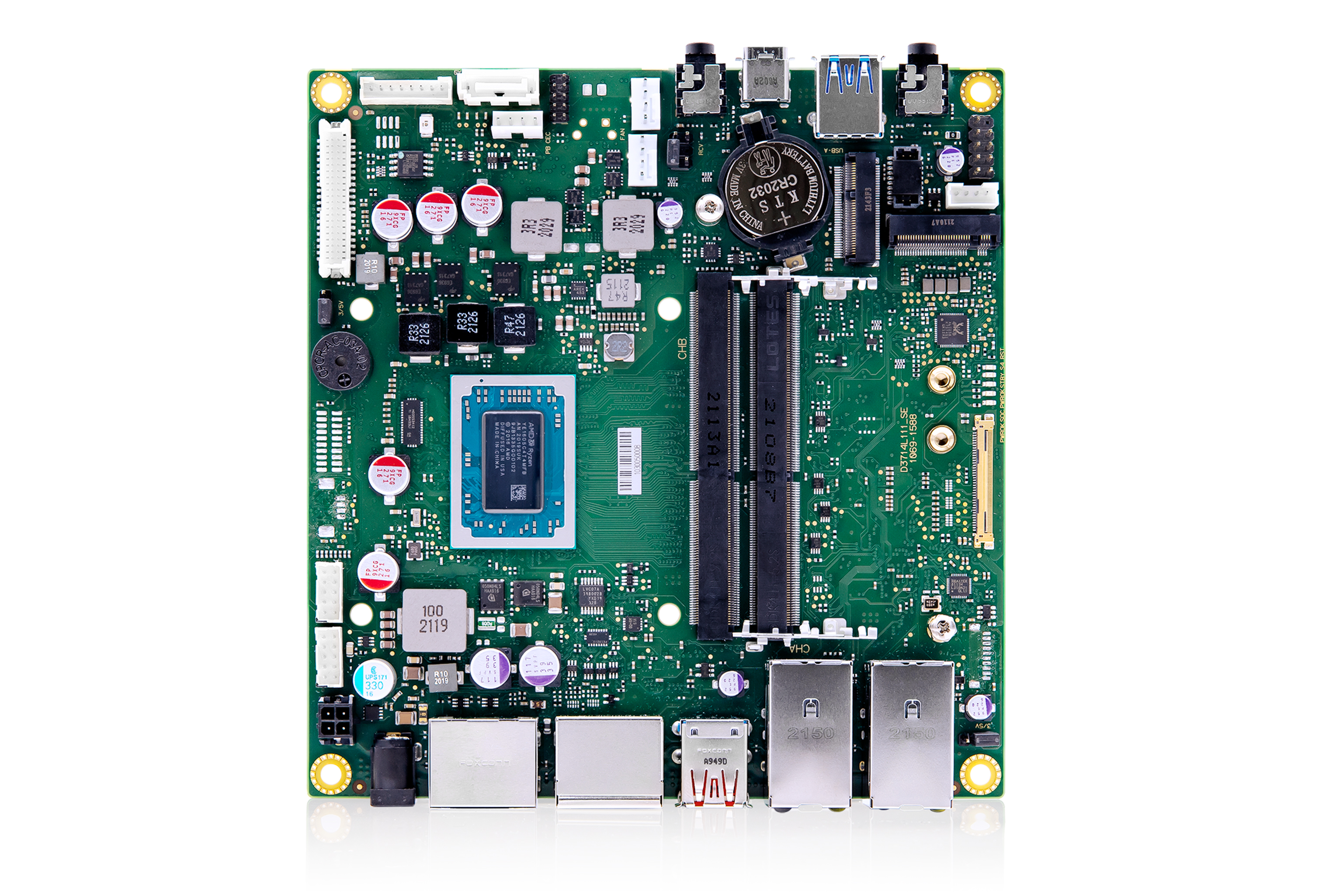

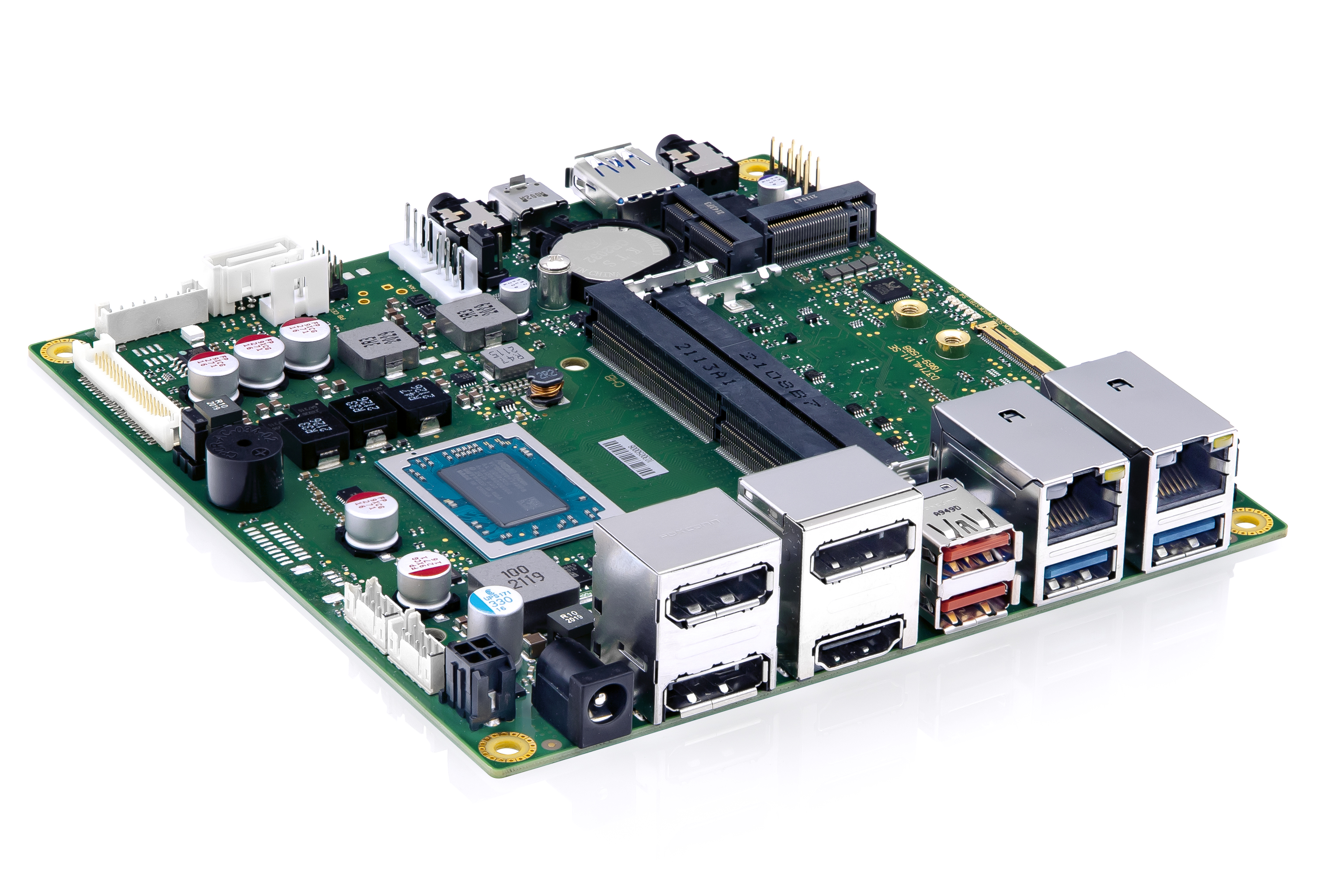

D3724-R mSTX
Industrie Motherboard mit AMD Ryzen™ Embedded R2000 Prozessor Serie (SOC)
Mouseover Zoom loading...
Spezifikationen
- AMD Radeon™ Vega Graphics (SoC)
- Bis zu 3x DisplayPort V1.4 plus HDMI V2.0b
- Dual Channel LVDS (24 Bit) & eDP V1.3 (4 k)
- Für den lüfterlosen Betrieb konzipiert
- Windows 11 Support
Das Industrie-Motherboard D3724-R mSTX unterstützt die AMD Ryzen™ Embedded R2000 Prozessoren mit integrierter AMD Radeon™ Vega Grafik und kann in Anwendungen mit hohen grafischen Anforderungen wie Casino-Gaming, medizinischen Displays, Thin Clients und ultrakleinen Industrie-PCs eingesetzt werden. Es ist mit bis zu drei DisplayPorts, einem HDMI-Port, einem Embedded DisplayPort und einem Dual-Channel LVDS (24bit) ausgestattet und kann bis zu vier unabhängige Displays in 4K-Auflösung ansteuern. Je nach den Anforderungen an die (grafische) Leistung sind drei Motherboard-Versionen verfügbar.
Vorzüge der Kontron Motherboards:
- Höchste Qualität dank deutscher Entwicklung und Produktion
- Striktes Lifecycle Management und zuverlässige Produktpflege
- Umfassendes Feature- und Tool-Set
- Exzellenter technischer Support
- Geringe Gesamtkosten-Betrachtung
Eigenschaften
| Processor | AMD Embedded R2312 SoC AMD Embedded R2314 SoC AMD Embedded R2514 SoC |
| Chipset | SoC |
| Main Memory | 2x DDR4 2400/2666 SDRAM up to 32 Gbyte |
| Graphics Controller | Integrated AMD Radeon™ Vega Graphics |
| Display | Up to 3x DPP V1.4 incl. DP++ support 1x HDMI V2.0b 1x embedded DP (eDP V1.4; supporting 4K resolutions; shared with DPP1) 1x Dual-Channel 24bit LVDS (shared with DPP3) Following max. display combinations are supported: D3724-R2/-R3: 1x DPP + HDMI + LVDS + eDP; 2x DPP + HDMI + LVDS; 2x DPP + HDMI + eDP; 3x DPP + HDMI D3724-R1: HDMI + LVDS + eDP; 1x DPP + HDMI + LVDS; 1x DPP + HDMI + eDP; 2x DPP + HDMI |
| Audio Controller | Realtek ALC256 |
| Audio | High Definition Stereo Audio Codec |
| Ethernet | Intel® i210 & Realtek RTL8111H with 10/100/1000 MBit/s |

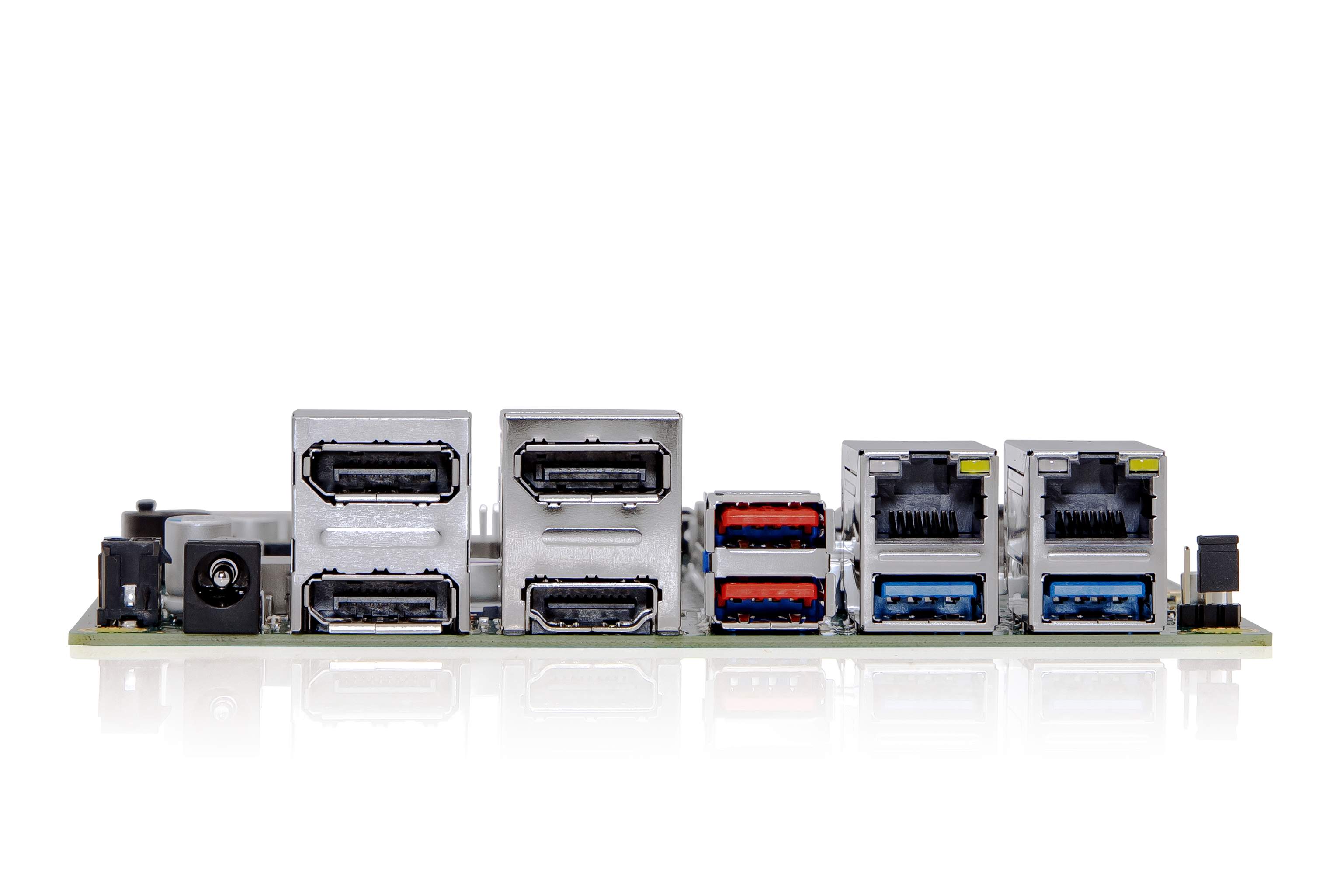

| USB | 2x USB 2.0 (by header) 2x USB 3.2 Gen1 (rear) 2x USB 3.2 Gen2 (rear) 1x USB 3.2 Gen1 (front) 1x USB 3.2 Gen1 (Type C, front) |
| Serial | 1x RS232 (by header); 1x RS232/422/485 (by header) |
| Available I/Os | 1x 8-Bit GPIO (by header) |
| SATA | 1x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI |
| Expansion | 1x M.2 PCIe x4 (Key-M: 2230/2242/2280) 1x M.2 WLAN/Bluetooth (Key-E: 2230, supports PCIe x1/Gen3 + USB 2.0) |
| Power connector | External/Internal DC-In (DC Jack/4-Pin Micro-Fit) |
| Input Voltage | DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 10 A/100 W (internal DC-In) |
| BIOS | AMI Aptio 5.x (UEFI) BIOS |
| Watchdog | 3 level HW Watchdog (BIOS POST/BIOS Boot/OS) |
| Real Time Clock | Integrated |
| Cooling | 2x PWM fan (CPU/System) |
| Operating System | MS Windows 10 / MS Windows 11 Linux-64 |
| Mechanical Dimensions | Mini-STX: 5.5“ x 5.8“ (140 x 148 mm) |
| Operating Temperature | -10 °C – 60 °C |
| Humidity | 5%-85% |
| Certifications | CE Class-B, UKCA cTÜVus acc. IEC62368-1 |
Downloads
Driver Updates
BIOS Updates
Datasheets
Datasheet D3724-R mSTX
[ d3724-mstx_datasheet.pdf, 2.36 MB, Sep.20.2023 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
Modules and Motherboards WP [eingeschränkter Download]
Tech Spec Sheet
Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 7.28 MB, Nov.21.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Zubehör
|

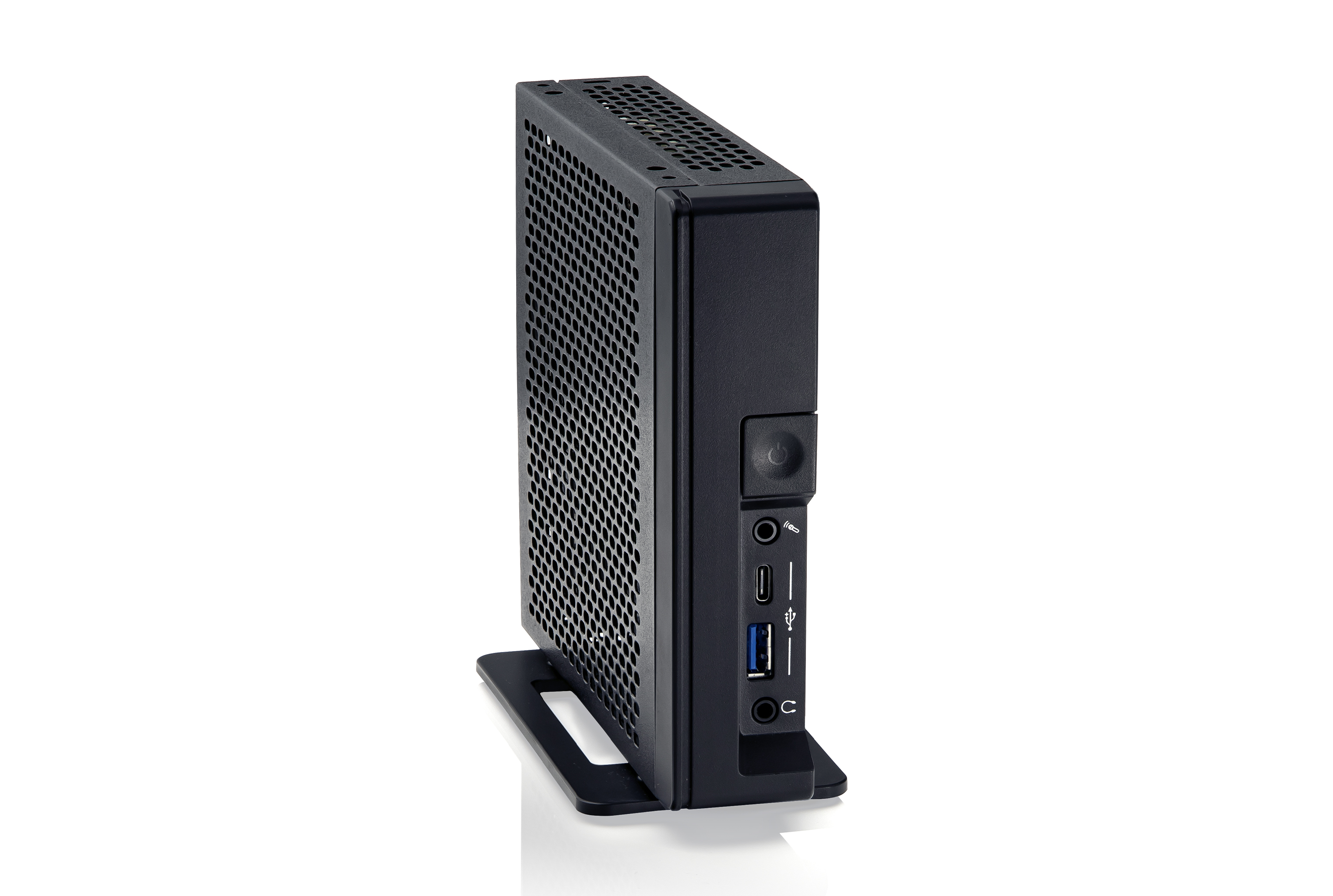

SMARTCASE™ S511 F5000-J011 |
|
IPC mini-STX Chassis, non branded! | |
|

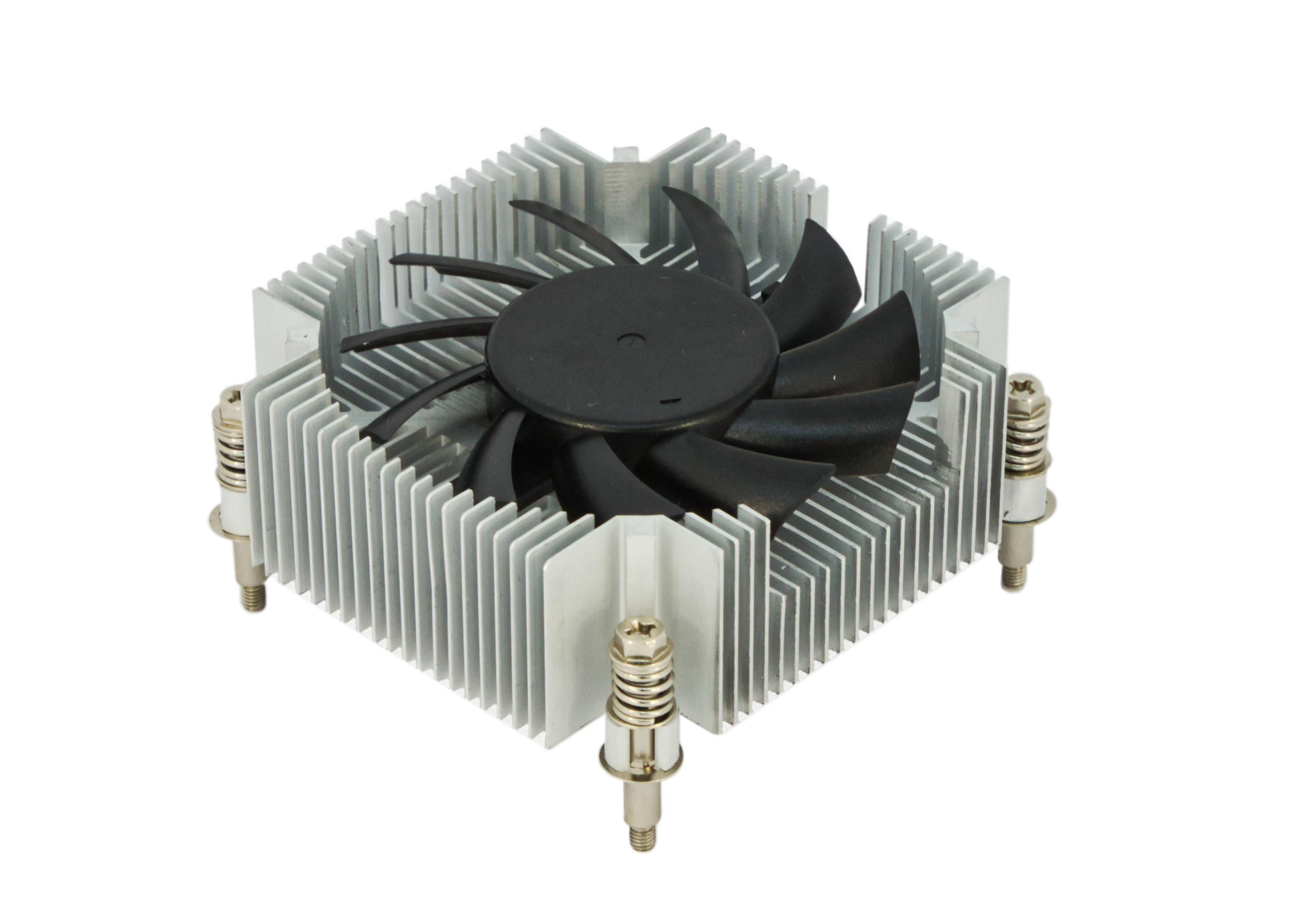

Active Cooler AMD FP5 35W S26361-F5000-C021 |
|
Low height 35W active cooler for Mini-ITX Ryzen Motherboard + Backplate for FP5, suitable for SMARTCASE™ S711 chassis! | |
|

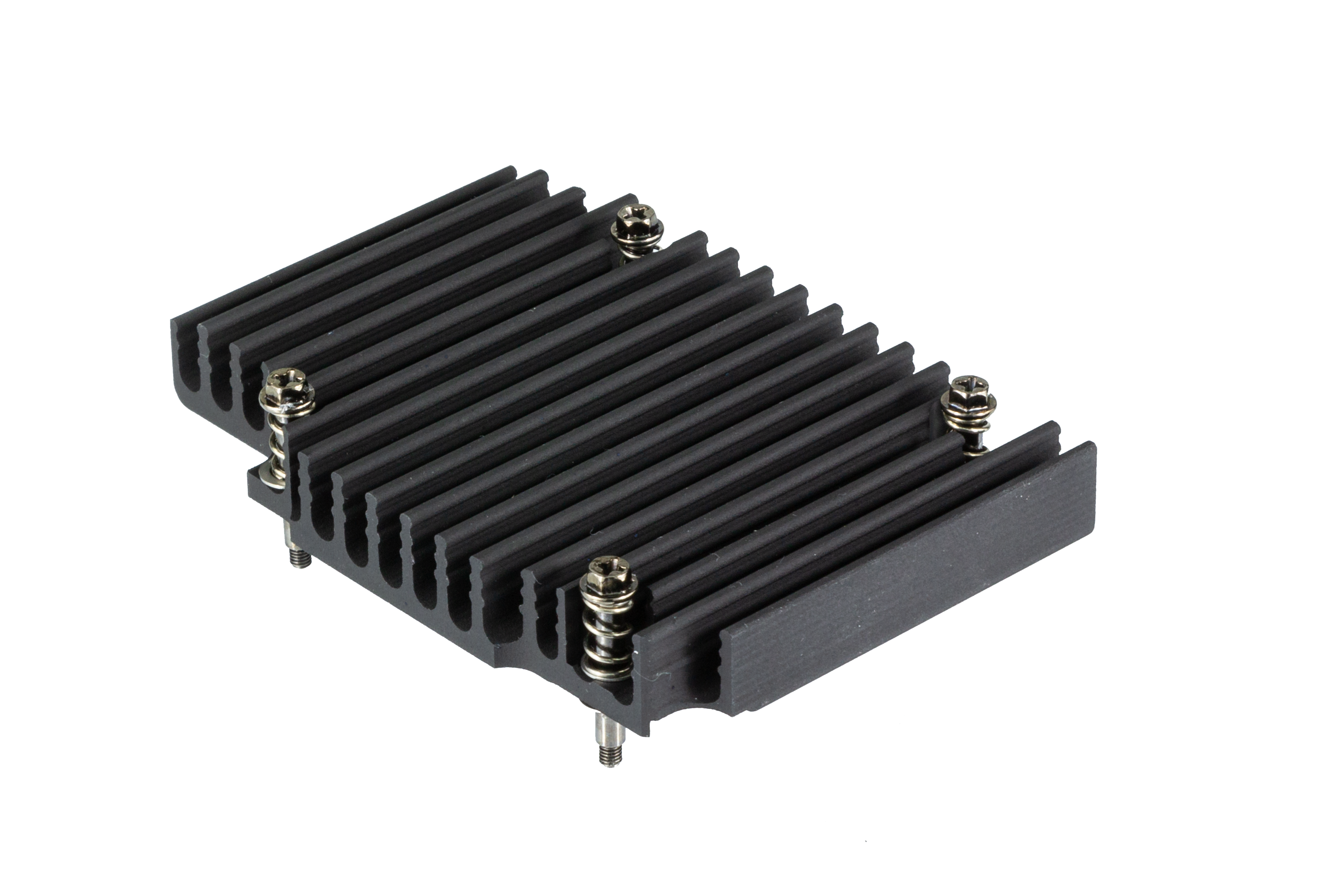

Passive Cooler AMD 10W S26361-F5000-C022 |
|
Passive cooler for Mini-STX Ryzen Motherboard + Backplate for FP5 | |
|

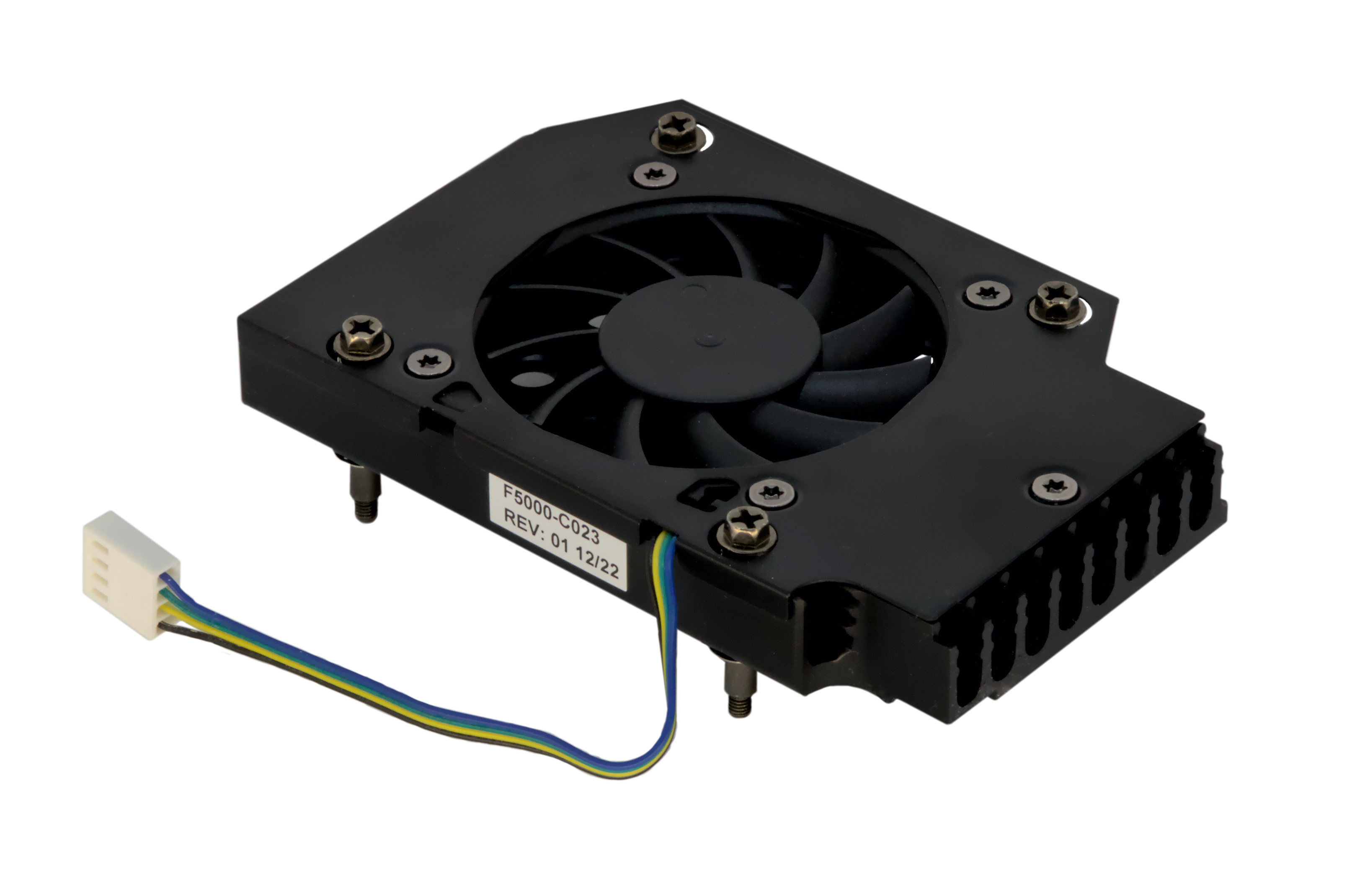

Active Cooler with 25W S26361-F5000-C023 |
|
Active cooler for mITX AMD Ryzen Motherboard + Backplate for FP5 | |
|
AC Adapter S26361-F5000-P006 |
|
19V / 3.42A, 65W - w/o power cord | |
|

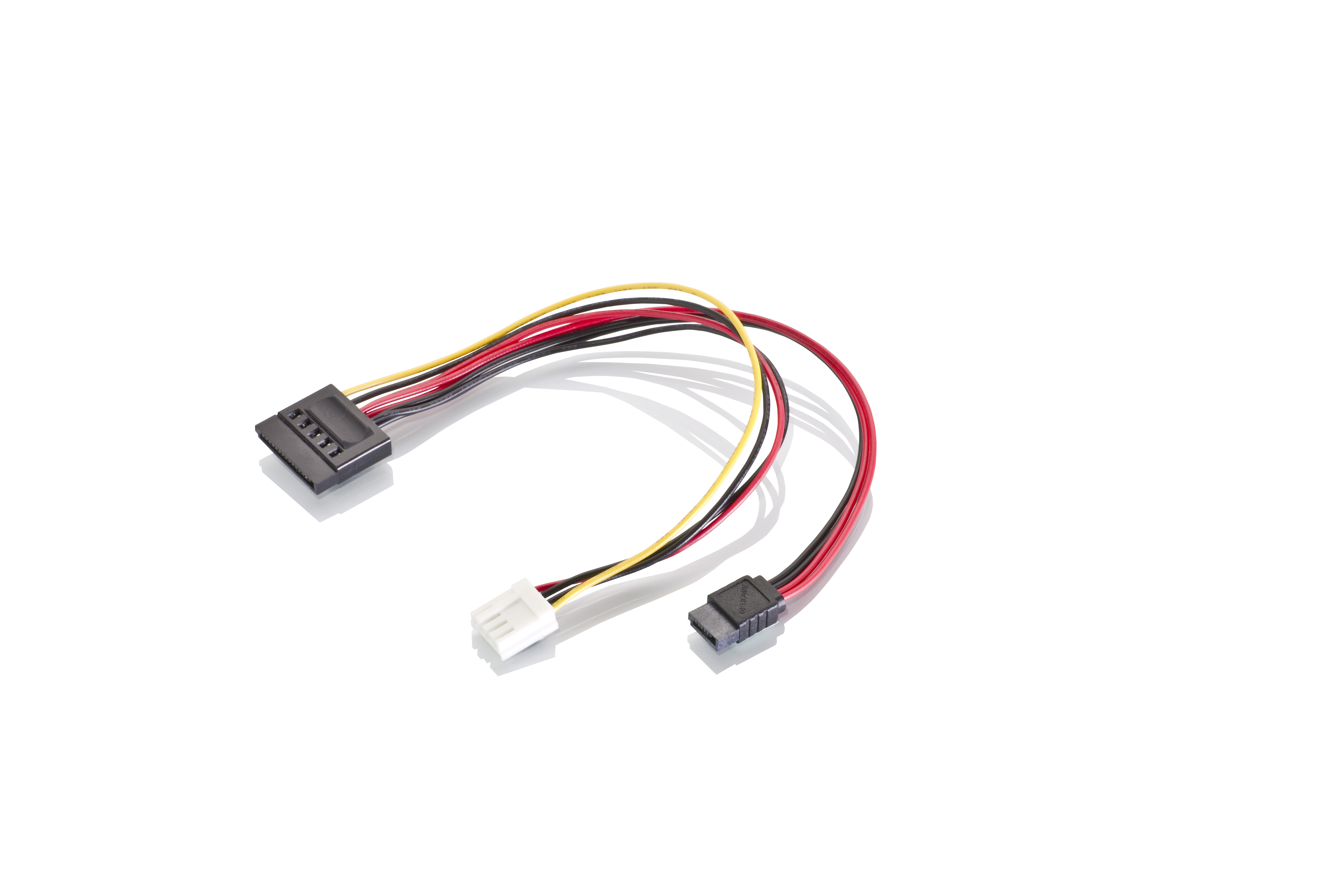

DrivePowerCable S26361-F5000-K001 |
|
Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm) | |
|
COM Cable short w/o bracket S26361-F5000-K007 |
|
w/o slot bracket, length = 120mm; new 2mm pitch internal connector | |
|
COM Cable "long" S26361-F5000-K010 |
|
with fullsize slot bracket | |
|
WLAN Kit for SMARTCASE™ S511 S26361-F5000-W005 |
|
left (grey)/right (black) Antenna (incl. cable) to be fitted into mSTX chassis | |
|
Wall Mount Bracket for SMARTCASE™ S511 S26361-F5000-X001 |
|
2x Bracket per chassis incl. screws | |
|
VESA mount SMARTCASE™ S5xx S26361-F5000-X002 |
|
"E-Line bracket" | |
|
DC-In Holder for SMARTCASE™ S511 S26361-F5000-X003 |
|
Holder incl. screws | |
|
DP 20P M to HDMI Adapter F5000-A007 |
|
DP 20P M to HDMI Adapter, up to 4k @ 60 Hz | |
|
M.2 Dual SATA Module F5000-M004 |
|
M.2 Dual SATA Module |
