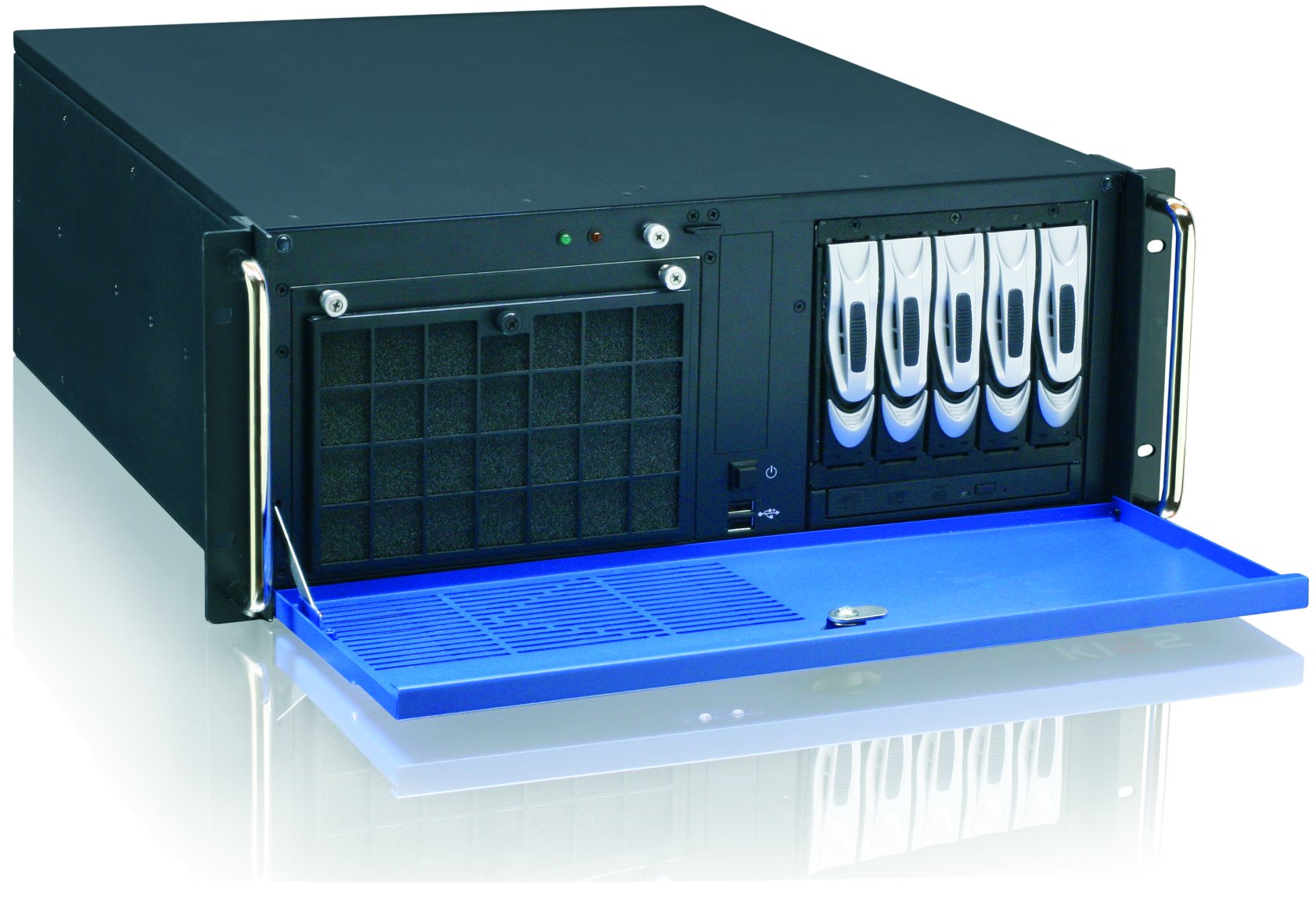

KISS 4U PCI 762 Dieses Produkt ist Legacy
3rd Generation Intel® i7/i5/i3 2Core und 4Core CPUs
Spezifikationen
- Intel® Core™ i7/i5/i3 Dual- und Quad-Core CPUs der 3. Generation
- Langzeitverfügbares embedded PICMG 1.3 Board
- Herausragende CPU- und Grafik-Performance
- Bis zu 32 GB DDR3 RAM
- Unterstützt RAID 0/1 Subsystem bis zu 2x 4TB SATA HDDs
Basierend auf dem neuen KISS 4U Design bietet das KISS 4U PCI 762 System jetzt eine Performance bis hin zur Intel® Core™ i7 Desktop CPU der dritten Generation. Neben der CPU-Architektur besticht das KISS 4U System durch einen erweiterten Temperaturbereich bis 55°C, hohe Schockfestigkeit und frontseitigen IP 52 Schutz sowie frontseitige Hot-Swap-Chassislüfter, Langzeitverfügbarkeit und erweiterte Gewährleistung.
Eigenschaften
| Operating System | KISS 4U PCI 762 |
| Dimensions (H x W x D) | 177 x 482 x 472 mm, 4U x 19" x 18.58" |
| Weight | Approx. 15 kg |
| Rear I/O | 2x GB LAN, 2x USB, VGA 2x RS232 on Slotbracket |
| Internal Drives | 1x 3.5" |
| Power Supply | 100-240 V AC 400 W (80+) optional AC 650 W (80+), AC Redundant 500 W |
| Expansion Slots | 7x PCI, 4x PCI_e x1, 1x PCI_e x16 Optional: 3x PCI, 4x PCI_e x4, 4x PCI_e x1, 1x PCI_e x16 |
| Chipset | Q77 |
| CPU | PCI 762 |
| Main Memory | Upto 16 GB DDR3 |
| Processor | i3-3220 3,3GHz i5-3550S 3,0GHz i7-3770 3,4GHz |
| Temperature | NON OPERATING -20°C to 70°C ( -4°F to 158°F) OPERATING 0°C to 50°C (32°F to 122°F), 55°C (131°F) at 10% POH per month |
| Humidity | 10-95 % relative humitity at 40 C° non condensing |
| Shock | 15g, 11ms |
| Vibration | 1g 10-500 Hz |
| Approvals | CE |
| MTBF | 50,000 h |
| Protection Class | IP 20 or IP 52 (optional) |
| Options | DVD R/W, KISS Stor, Slide Rails, PCCM, KISS DAx |
| Cooling | Two hot swap chassis fans, air fi lter |
Downloads
Datasheets
Datasheet KISS 4U V2 PCI 762
[ datasheet_kiss-4u-pci-762.pdf, 729.2 KB, Aug.31.2017 ]
Manuals
Benutzerhandbuch KISS 4UV2
[ kiss_4u_v2_benutzerhandbuch_v1_01_de_web.pdf, 2.27 MB, Sep.11.2017 ]
User Manual KISS 4UV2
[ kiss_4u_v2_user_guide_v1_01_en_web.pdf, 2.45 MB, Sep.11.2017 ]
User Guide PCI-762
[ userguide_pci762.pdf, 10.75 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Mechanical Drawings
Outline dimensions KISS 4U_V2
[ outline-dimensions_kiss-4u_v2.pdf, 168.71 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
