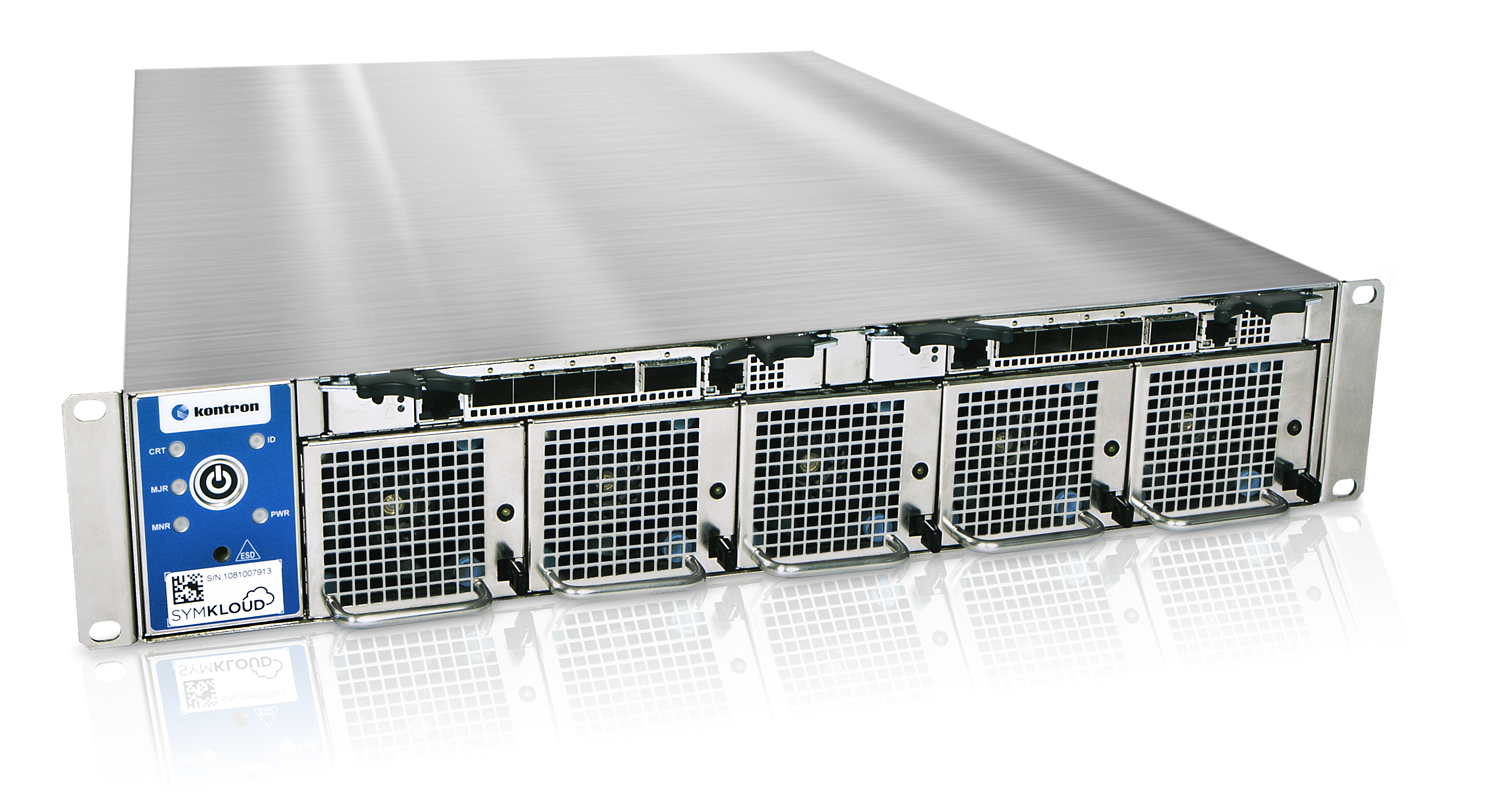

SYMKLOUD MS2920
2U, high density, modular, converged infrastructure platform for massively scalable VNF, edge data center, and video/OTT workloads
Spezifikationen
- Ruggedized modular platform design
- SDN/NFV - ready infrastructure
- 2RU height, 21 inches deep, up to 9 hot-swappable modular servers
- Flexible configurations to run multiple applications
- Improved performance with Data & Control Plane separation
- *Latest server: 2 independent Intel® Xeon® D-1500 Series processors
SYMKLOUD MS-2920 is a commercial-off-the-shelf x86 (COTS) platform for carrier clouds, content delivery networks, hosting and cloud (XaaS) provider infrastructure, with compute, storage and dual 600GbE ingress switch fabric in a single 2U short depth enclosure. Supports up to 2x MSH8920 hot-swappable, fully managed L3 100GbE switches, with 640Gbs of non-blocking internal switching capacity.
Downloads
Solution Brief
UPF Offload with Truminds and Kontron
Enterprises with a need for highly-reliable, business-critical mobile communications are increasingly adopting private cellular networks in preference to public cellular or WiFi alternatives. In order for these networks to be cost-effective, it’s important for them to maximize the number of client devices that can be supported in a small-footprint server.
Thus, by leveraging Napatech’s SmartNIC-based UPF offload solution running on an edge server from Kontron, Truminds has op- timized the cost-performance of their private cellular network infrastructure for markets like healthcare, government offices, utilities, universities and airports.
[ solutionbrief_upf_offload_with_truminds_and_kontron.pdf, 571.05 KB, Jan.26.2024 ]
Datasheets
SYMKLOUD MS-2920 datasheet
[ kontron-datasheet-ms2920-new1.pdf, 1.08 MB, Nov.06.2017 ]
Manuals
MS29xx Product Documentation Package
All-in-one platform documentation package, contains the following :
MS2900 First Startup Guide v1.1
The First Startup Guide will assist you with getting up and running on your SYMKLOUD MS2900 Platform.
PLATFORM
- MS2900 Platform Quick Start Guide, v1.2
- MS2900 Platform User Guide, v1.5
- MS1300 Platform User Guide, v1.0 ~NEW~ 01-2019
HUB modules
- MSH8900 User Guide, v1.2
- MSH8910 Series User_Guide, 1.0
- MSH891x CLI Reference Guide, v1.5
- MSH8920 Series User Guide, 1.0
- MSH8920 PicOS routing and switching configuration guide, v1.0
- MSH8920 PicOS routing and switching commands reference guide, v1.0
- MSU8700 (Uplink Module) Quick Reference Sheet, v1.1
PROCESSOR nodes
- MSP800x Series User Guide, v1.0
- MSP802x Series User Guide, v1.1
- MSP804x Series User Guide, v1.2
- MSP8050 Series User Guide, v1.1
- MSP8060 Series User Guide, v1.0
SYSTEM MANAGER
- System Monitor User Guide, v3Rev1
- System Monitor API Programmer's Guide, v3Rev2
APPLICATION NOTES
- MSP802x KVM Configuration, v2.0. (AN14006)
- MSH8900 SFP modules, v1.0. (AN14005)
- MSH8910 compatibility guide, v1.0
- MS2910-Startup_use-case_VLAN-segregated_Mgmt+payload_networks (AN17002)
- MS2910-Startup_use-case_physically_isolated_Mgmt+payload_networks (AN17003)
- MS2910-Startup_use-case_common Mgmt+payload_network (AN17004)
- MS2900-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18001)
- MS2900-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18002)
- MS2900-Startup_use-case_VLAN-segregated_Mgmt+payload_networks, v1.0 (AN18003)
- MS2920-Startup_use-case_common Mgmt+payload_network, v1.0 (AN18004)
- MS2920-Startup_use-case_physically_isolated_Mgmt+payload_networks, v1.0 (AN18005)
[ symkloud_product_documentation_package-2019_01.zip, 60.15 MB, Jan.28.2019 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Drivers
MSP804x - Intel(R) Chipset Device Software
Product: Intel(R) Chipset Device Software
Version: 10.1.2.19
Target PCH/Chipset: Client Platforms
Target OS: Windows
[ chipset_10-1-2-19_public.zip, 2.92 MB, Apr.20.2023 ]
Tools
Kontron IPMItool
IPMITOOL v1.8.13-K14
IPMItool is a simple Linux command-line tool used to communicate with IPMI-enabled devices. It provides remote management, sensor and FRU information. It can also be used to update firmwares if supported by the device. The following binaries are optimized for Kontron’s products and are based on the open source version found on Sourceforge.
[ ipmitool-1-8-13-k14-tar.gz, 906.96 KB, Apr.20.2023 ]
Symkloud-MS Platform and Switch SNMP MIBs
This archive contains:
- MIB-files for the following components:
- Symkloud-MS ShMCs (Platform Management/Monitoring): v20171201
- MSH8900 Switch (Switch Management/Monitoring): 1.14
- MSH8910 Switch (Switch Management/Monitoring): GA4.50
- MSH8920 Switch (Switch Management/Monitoring): 1.6.4-24
- PDF with details on SNMP implementation on Symkloud-MS platforms
[ symkloud-ms_snmp-mibs_2018-06.zip, 1.37 MB, Jun.14.2018 ]
Firmware
MSH8920 Switch NOS (PicOS)
MSH8920 Switch NOS version 1.7.2-12
[ kontron_msh8920_picos_1-7-2-12-tar.gz, 390.84 MB, Apr.20.2023 ]
MS29xx OneCLick Update (Current Release) : Royal Elfin (v3.19.00)
IMPORTANT NOTE: Due to a limitation in the maximum bundle-size on previous releases,
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
[ symkloud-bundle-3-19-00.zip, 149.68 MB, Apr.20.2023 ]
MS29xx OneCLick Update (Previous Release) : Quartz Elfin (v3.18.00)
IMPORTANT NOTE: Due to a limitation in the maximum bundle-size on previous releases,
MSH8900 with ShMC v2.xx and MSH891x with ShMC 1.xx (or older) must first be updated
using the 'ShMC-Only v3.00 bundle'.
Release Notes
[ symkloud-bundle-3-18-00.zip, 148.69 MB, Apr.20.2023 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
