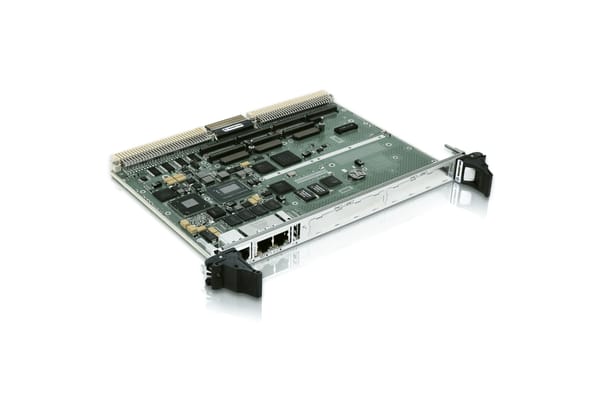

VM6052
6U VME 3rd Gen Intel® Core™ i7 Computer
Dieses Produkt wird nicht für neue Designs empfohlen.
Mouseover Zoom loading...
Spezifikationen
- Dual-Core user configurable 0.8 GHz/14W, 1.7 GHz /17W , 2.2 GHz/25W
- Comprehensive I/O Capabilities - 4x Ethernet GBASE-T, Multiple Graphic Heads, USB, Serial, SATA, Personality Module, PMC/XMC, Flexible I/O
- Commercial and Rugged Versions - for the most demanding applications
- Simple Line-Placement - compatible VME eco system
- Long Term Supply - adapted to your application life cycle
The VM6052 6U VME 2eSST Single Board Computer is built around Intel®’s state-of-the-art 3rd Generation Core™ i7 dual-core processor.
The VM6052 provides exceptional I/O capabilities onboard and outstanding flexibility by providing support for PMC and XMC including flexible I/O, storage mezzanines, and personality modules.
Accessory cards such as VME 6U dual PMC carrier and rear transition module complete the ecosystem.
Users of PENTXM2, PENTXM4 and VM6050 will find the same front and rear interfaces, making VM6052 the perfect replacement, and investment preservation with Kontron products an actual experience already spanning a decade.
Eigenschaften
| Processor | Intel® dual-core Core i7 3517UE |
| CPU Clock | User configurable 0.8 GHz/14W, 1.7 GHz /17W , 2.2 GHz/25W |
| SRAM | Up to 16 GB dual channel DDR3 SDRAM, with ECC, soldered, running at 1333 MHz |
| Controller | Hub Mobile Intel® QM77 Express Chipset |
| Frontpanel | 1 or 2 x RS232/422/485, 2 x 1000BASE-T, 1 x USB 2.0, LEDS, 2 x PMC/XMC slots |
Downloads
Datasheets
VM6052 Datasheet
[ vm6052-04-2016-datasheet.pdf, 2.61 MB, Aug.31.2017 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Manuals
VM6052/VM6054 User's Guide
[eingeschränkter Download]
[ cadtb19-4e-vm6052-54-b-ug.pdf, 6.8 MB, Mar.27.2019 ]
EZ1-VM6052/54 Getting Started
[eingeschränkter Download]
[ ez1-vm6052-54-getting-started.pdf, 705.89 KB, Sep.11.2017 ]
VM6052/54 - AMI BIOS User Reference Manual
[eingeschränkter Download]
[ sddtg34-7e-vm6052-54-bios.pdf, 5.21 MB, Sep.11.2017 ]
VM6052/VM6054 PBIT User Manual
[eingeschränkter Download]
[ sddtg35-1e-vm6052-54-pbit-ug.pdf, 409.05 KB, Sep.11.2017 ]
EZ1-VM6052/54 Quick Start
[eingeschränkter Download]
[ sddtg33-0e-ez-vm6052-54-qs.pdf, 172.98 KB, Sep.11.2017 ]
Vx Works 6.8 ALMA VME Bus Driver
[eingeschränkter Download]
[ sddtg00-0e-vm6050-and-vm6250-vxworks-6-8.pdf, 272.71 KB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
