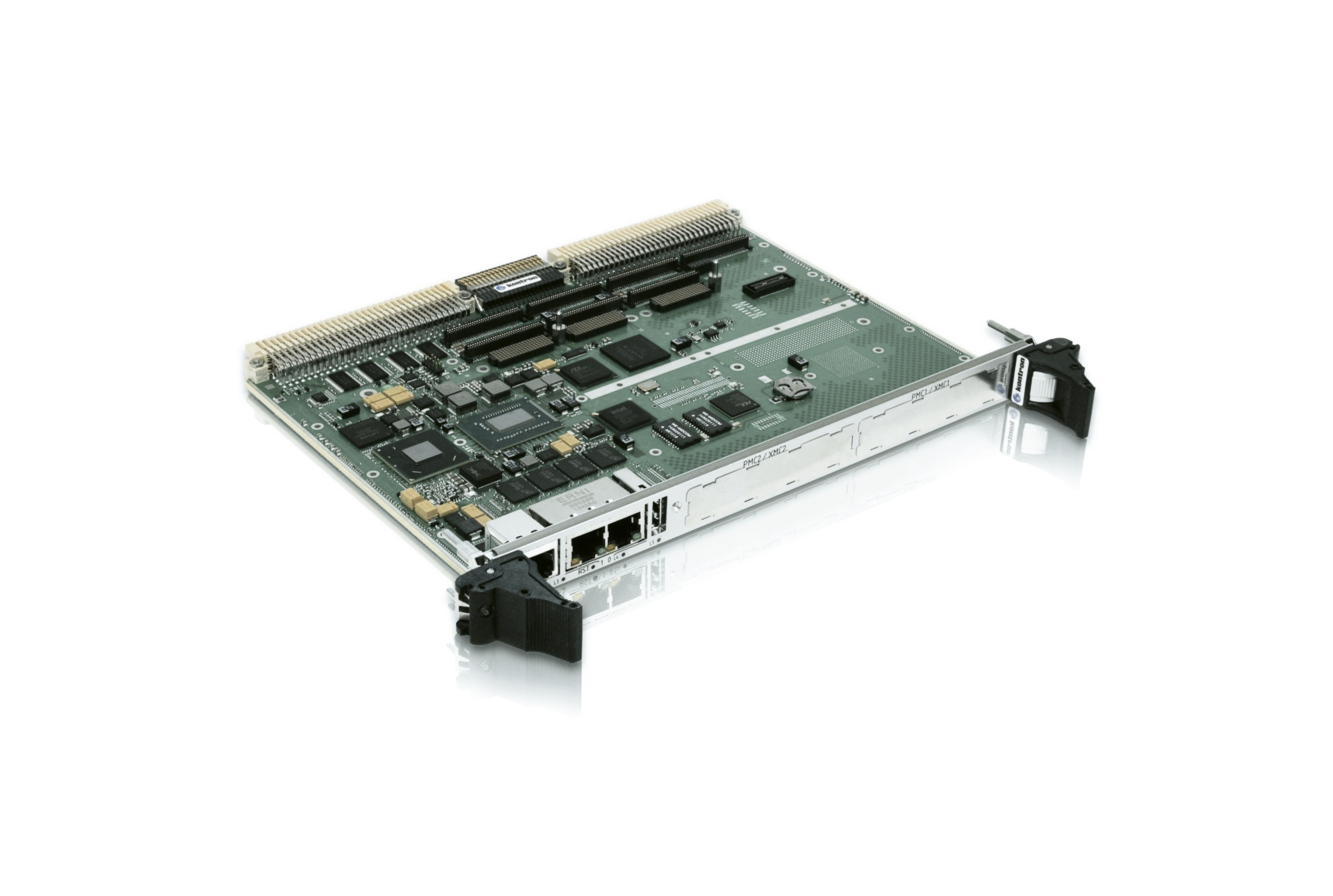

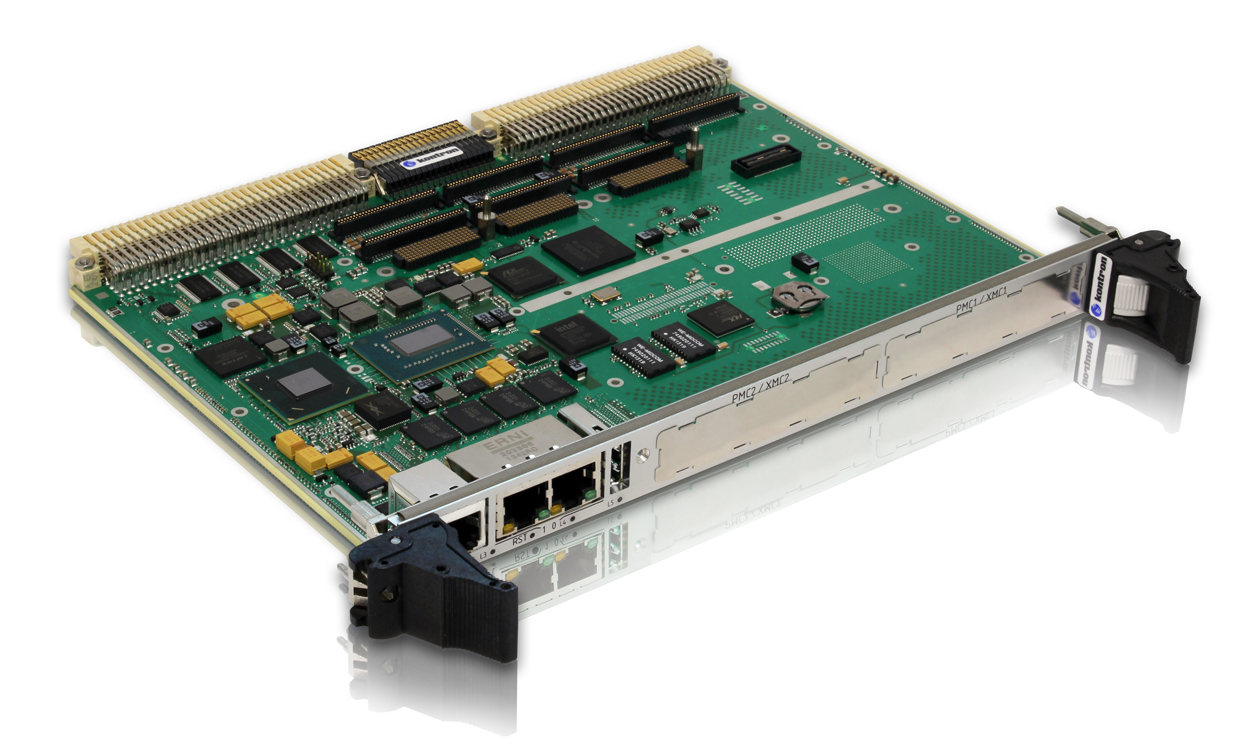

VM6054
6U VME 3rd Gen Intel® Core™ i7 Computer
Dieses Produkt wird nicht für neue Designs empfohlen.
Mouseover Zoom loading...
Spezifikationen
- Dual-Core 2.1 GHz/35W
- Comprehensive I/O Capabilities - 4x Ethernet GBASE-T, Multiple Graphic Heads, USB, Serial, SATA, Personality Module, PMC/XMC, Flexible I/O
- Commercial and Rugged Versions - for the most demanding applications
- Simple Line-Placement - compatible VME eco system
- Long Term Supply - adapted to your application life cycle
The VM6054 6U VME 2eSST Single Board Computer is built around Intel®’s state-of-the-art 3rd Generation Core™ i7 quad-core processor.
The VM6054 provides exceptional I/O capabilities onboard and outstanding flexibility by providing support for PMC and XMC including flexible I/O, storage mezzanines, and personality modules.
Accessory cards such as VME 6U dual PMC carrier and rear transition module complete the ecosystem.
Users of PENTXM2, PENTXM4 and VM6050 will find the same front and rear interfaces, making VM6054 the perfect replacement, and investment preservation with Kontron products an actual experience already spanning a decade.
Eigenschaften
| Processor | 3rd Generation Intel® Core™ i7 processor (22 nm manufacturing process, code name Ivy Bridge) Quad Core 3612QE – SV 2,1 GHz/35W |
| Main Memory | System Memory Up to 16 GB dual channel DDR3 SDRAM, with ECC, soldered, running at 1600 MHz Nand Flash SATA NAND Flash Disk Modules (typically 16, 32 GB), soldered or on mezzanine socket (FDMSATA option) EEPROM One serial 256 Kbit EEPROM dedicated to system data One serial 256 Kbit EEPROM dedicated to application data Flash BIOS FLASH BIOS, with recovery image and uEFI BIOS settings |
Downloads
Datasheets
VM6054 Datasheet
[ vm6054-04-2016-datasheet.pdf, 2.62 MB, Aug.31.2017 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
EZ Platforms
[ ez-platforms-20-02-15-datasheet.pdf, 1.02 MB, Aug.31.2017 ]
Manuals
VM6052/VM6054 User's Guide
[eingeschränkter Download]
[ cadtb19-4e-vm6052-54-b-ug.pdf, 6.8 MB, Mar.27.2019 ]
VM6052/54 - AMI BIOS User Reference Manual
[eingeschränkter Download]
[ sddtg34-7e-vm6052-54-bios.pdf, 5.21 MB, Sep.11.2017 ]
VM6052/VM6054 PBIT User Manual
[eingeschränkter Download]
[ sddtg35-1e-vm6052-54-pbit-ug.pdf, 409.05 KB, Sep.11.2017 ]
EZ1-VM6052/54 Getting Started
[eingeschränkter Download]
[ ez1-vm6052-54-getting-started.pdf, 705.89 KB, Sep.11.2017 ]
EZ1-VM6052/54 Quick Start
[eingeschränkter Download]
[ sddtg33-0e-ez-vm6052-54-qs.pdf, 172.98 KB, Sep.11.2017 ]
Vx Works 6.8 ALMA VME Bus Driver
[eingeschränkter Download]
[ sddtg00-0e-vm6050-and-vm6250-vxworks-6-8.pdf, 272.71 KB, Apr.20.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
