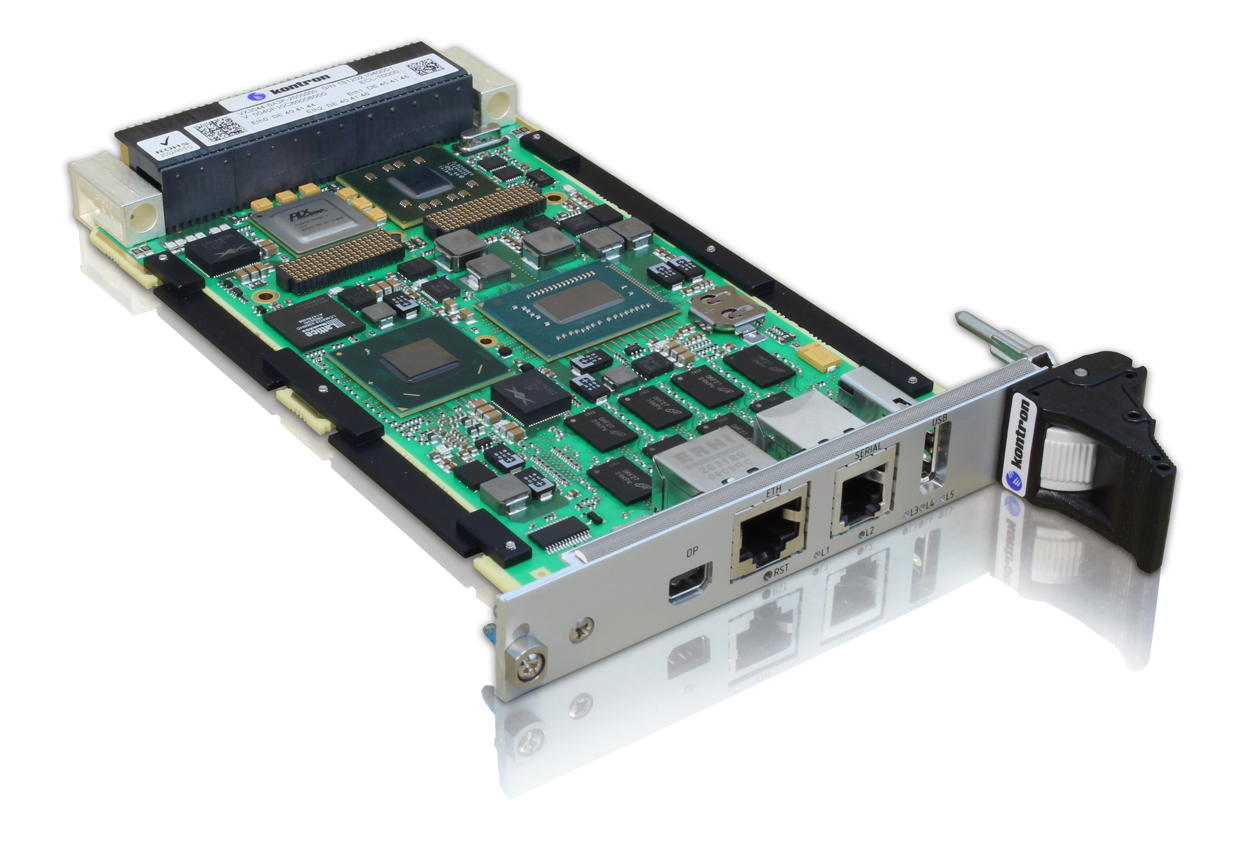

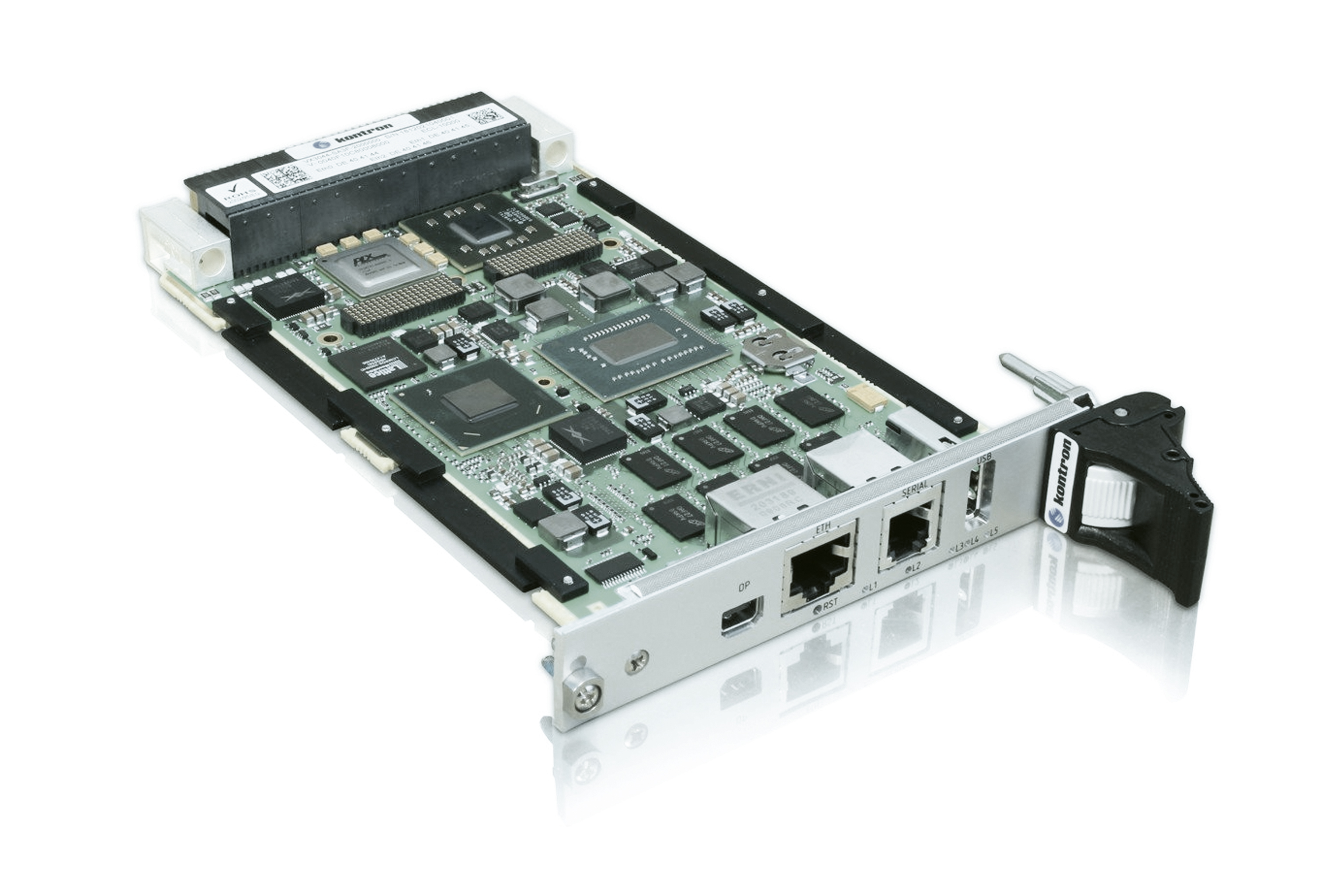

VX3042
3HE VPX Prozessorboard mit Dualcore Intel® Core™ i7 Prozessor der dritten Generation
Dieses Produkt wird nicht für neue Designs empfohlen.
Mouseover Zoom loading...
Spezifikationen
- Konfigurierbare TDP: 25W/2.2 GHz, 17W/1.7 GHz, 14W/0.8 GHz
- Mehrfache Ethernet-Konnektivität: 10GBASE-KR/1000BASE-T/1000BASE-BX
- Bis zu 8 GB SDRAM mit ECC
- Intel® HD 4000 Grafik
- PCI Express Gen 3.0, mit Kontron VXFabric™
- XMC mit Unterstützung für front- und rückseitige I/Os
- Einsatzfertige Evaluierungs- und Entwicklungsplattformen
- Erweiterter Produktlebenszyklus, luft- und konduktionsgekühlte Versionen
Intel® Dualcore Intel® Core™ i7 Prozessor der dritten Generation
Rugged SBC with multiple 10G Ethernet and Intel® HD Graphics 4000
VX3042 is the Kontron 3U VPX rugged Single Board Computer with Intel® HD Graphics 4000 and multiple 10G Ethernet. The SBC implements a new architecture poised to address specific applications and offer the ultimate performance for the Military, Aerospace and Transportation markets.
Based on Intel®’s 3rd Generation Core™ i7 high performance computing architecture, and supported by Kontron Long Term Supply (LTS) services, VX3042 offers the best feature set.
The perfect blade for Console and Rugged Servers
In today‘s network-centric battlefield, console and high-end servers applications require rugged computers to operate in the most difficult environments. Kontron VX3042 is designed around a high-end Dual Core CPU. This SBC features a configurable TDP, enabling to adjust the board performance to the exact mission profile required. Providing up to 16 GB DDR3-SDRAM, multiple Ethernet 10G and an XMC support, the VX3042 offers numerous configuration variants.
SWaP-C
The design is tailored to support systems with high size, weight and power and cooling demands
Connectivity
Designed for PCIe Gen3 8GB/s. I/O extensions at peak bandwidth. 4 SATA ports to the backplane: for secure RAID storage applications
Compatibility
VX3042 is compatible with all Kontron VPX building blocks (Payload boards, carriers, switches, backplanes, OS and drivers) and offers backward compatibility with the previous product generations (VX303x SBCs).
Write the code once, run on all the product line.
Long Term Supply (LTS)
Kontron Extended Life Cycle offers a 15-year life cycle organization on top of Intel® embedded product line silicon life cycle. VX3042 is the ideal candidate for long term programs in compact high performance parallel computing solutions.
Eigenschaften
| CPU | Intel® Core™ i7-3517UE Processor (4M cache, 2 execution cores, 4 threads) |
| Controller | Mobile Intel® QM77 Express Chipset |
| Graphics | Integrated Graphics Core, Intel® HD graphics 4000 |
Downloads
Datasheets
VX3042 Datasheet
[ vx3042-06-2014.pdf, 2.25 MB, Aug.31.2017 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]
EZ Platforms
[ ez-platforms-20-02-15-datasheet.pdf, 1.02 MB, Aug.31.2017 ]
Manuals
VX3042 and VX3044 - AMI BIOS User Reference Manual
[eingeschränkter Download]
[ sddtf96-4e-vx304x-bios.pdf, 4.4 MB, Sep.11.2017 ]
VX3042 and VX3044 - PBIT User's Guide
[eingeschränkter Download]
[ sddtg14-1e-vx304x-pbit-ug.pdf, 405.19 KB, Sep.11.2017 ]
EZ3-VX304x-00-L Quick Start
[eingeschränkter Download]
[ sddtg12-0e-vx304x-ez3.pdf, 192.17 KB, Sep.11.2017 ]
EZ3-VX304x Getting Started
[eingeschränkter Download]
[ sddtg09-1e-ez3-vx304x-gs.pdf, 1 MB, Sep.11.2017 ]
PB-VX3-4xx -3U-VPX Rear Transition Module User's Guide
[eingeschränkter Download]
[ cadtb03-0e-pb-vx3-4xx.pdf, 1.12 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
White Papers
VXFabric White Paper
[ whitepaper_en_vxfabric-v2-final.pdf, 5.87 MB, Nov.27.2013 ]
Managing 3rd gen High Data Rates on VPX Backplanes
This white paper describes the key parameters that must be mastered to achieve high data rates on VPX architectures. It explains some of the technologies used by Kontron to operate VPX computers at top bandwidth (eg PCIe gen3, 10G Base KR)
[ whitepaper_vpx_highdatarates.pdf, 3.49 MB, Apr.21.2017 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
