VX305C-40G

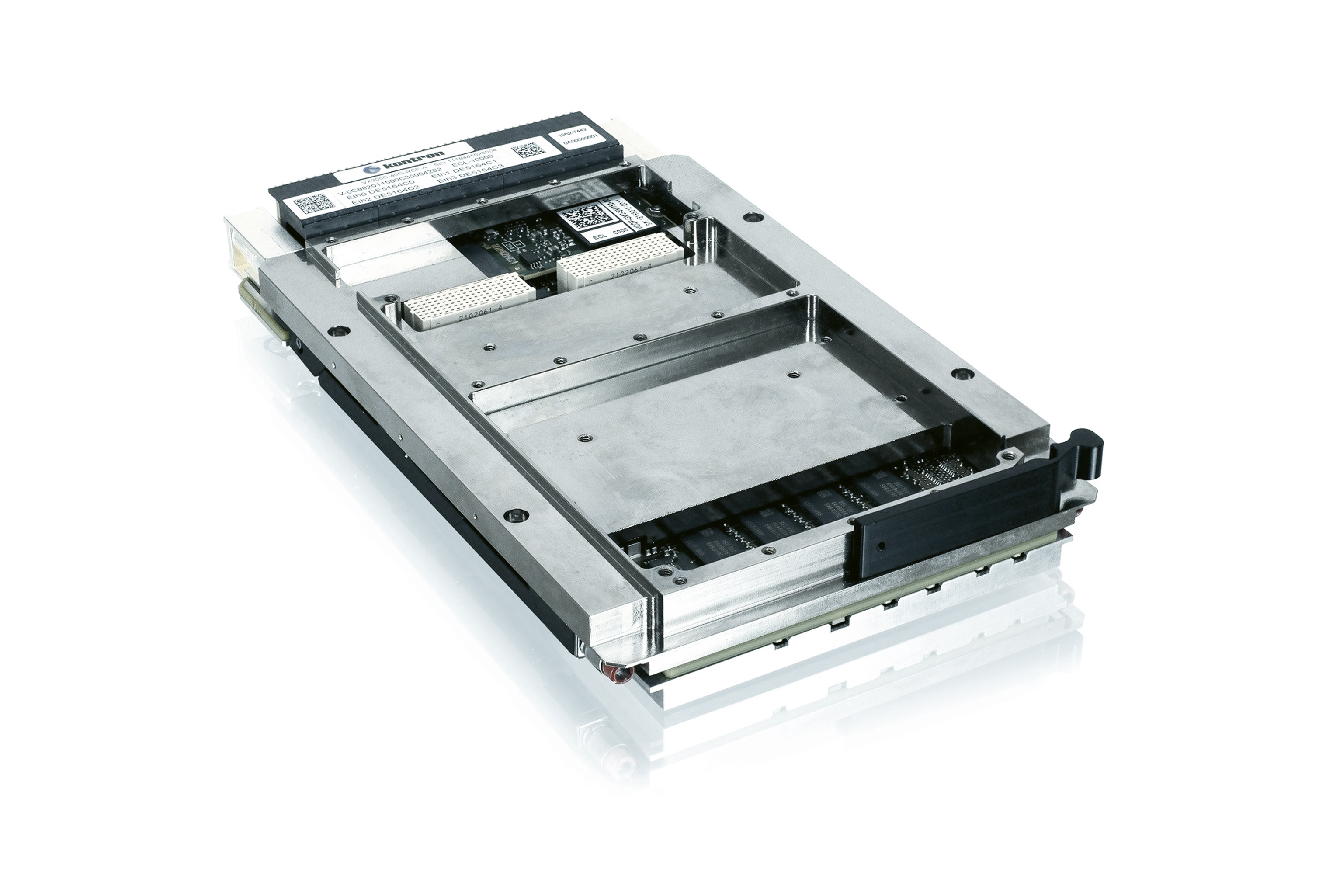

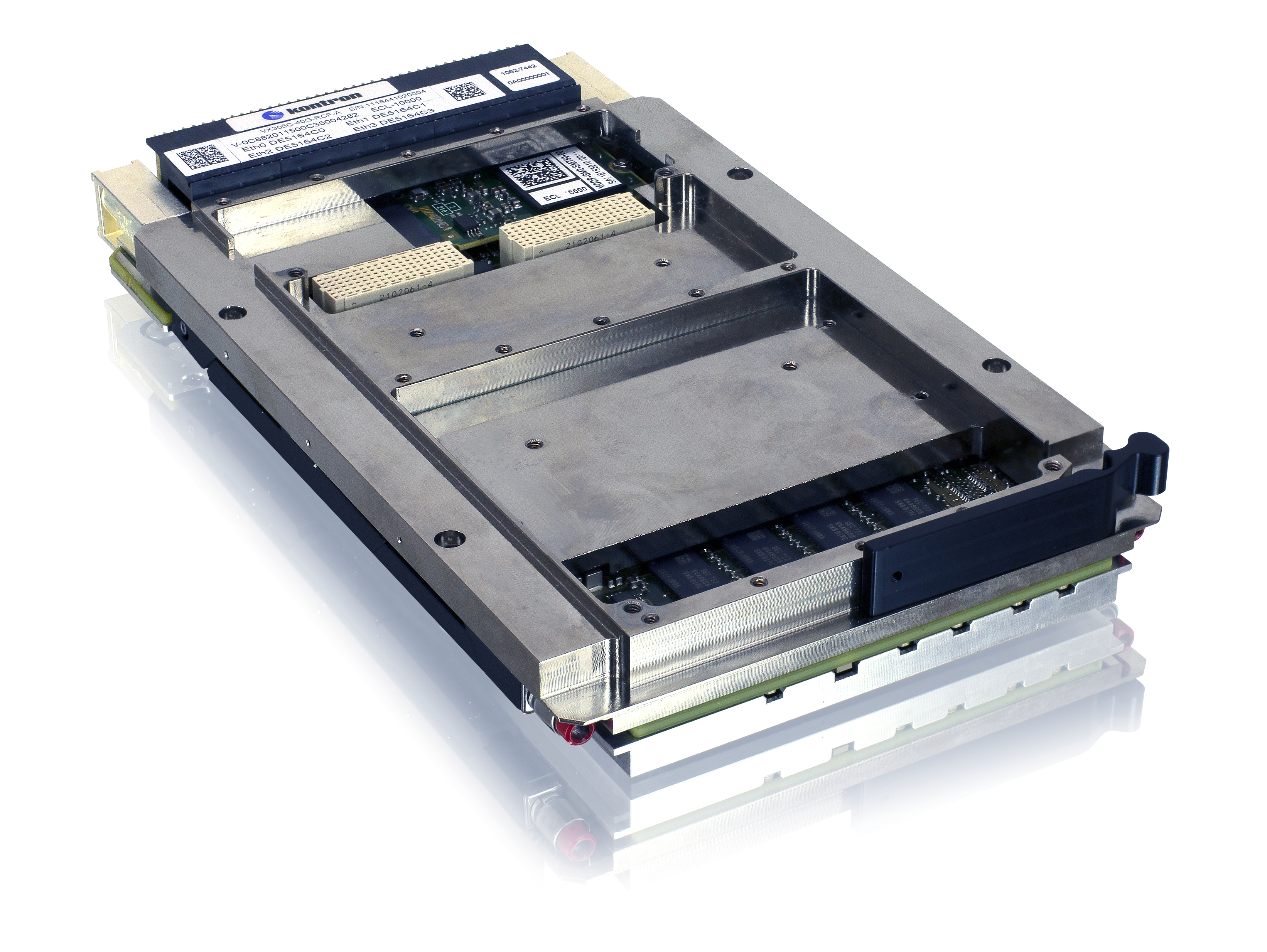

SOSA-aligned 3U VPX Intel® Xeon® Processor Single Board Computer
Mouseover Zoom loading...
Spezifikationen
- 12-Core Xeon® D processor, 1.5 GHz (2.1 GHz Turbo)
- 40 Gigabit Ethernet Data Plane, Dual 10 Gigabit Ethernet Control Plane
- x8 PCI Express® Gen3 XMC slot , x4 PCI Express® Gen3 Expansion Plane
- Up to 64GB soldered DDR4 with ECC
- Extended Life Cycle and 10-year Silicon Reliability
- Air-Cooled and Rugged Conduction-Cooled versions
- Developed in alignment with the SOSA™ Technical Standard
Building on Kontron's successful VX3058 and designed in alignment with the SOSA™ Technical Standard, the VX305C-40G 3U VPX Single Board Computer leverages the new VITA 65 (OpenVPX) SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 I/O intensive slot profile to bring 40 Gigabit Ethernet performance to 3U systems. Using the highly integrated 12-core Intel® Xeon® D processor, the VX305C-40G complements the 40 Gigabit Ethernet Data Plane (40GBASE-KR4) with a 4-lane PCI Express 3.0 expansion plane, dual 10 Gigabit Ethernet Control Plane (10GBASE-KR), and a rich assortment of user I/O including SAT III, USB (2 and 3), serial links, video (HDMI, with DisplayPort available in 2019), GPIO, and an XMC site with backplane user mapping. As a result, it is a SWaP-C optimized computing platform suitable for a wide range of applications. The ITAR-free VX305C-40G is the first instance of a new fully-defined OpenVPX SBC profile designed for I/O intensive workloads in Open System Architecture systems.
VX305C-40G brings server class applications into the battlefield
Typical programs are :
- Radar, sonar
- Imaging systems
- Airborne fighter and UAV radar
- Programs requiring long term support in harsh environments
Rugged By Design
The high-performance VX305C-40G is available in both air-cooled (for lab or other benign deployed environments) and conduction-cooled Plug-in units as per VITA 48.2 Type 2, Secondary Side Retainer. This enables the VX305C-40G to sustain 70°C card edge temperature according to VITA 47 XMC support. The VX305C-40G is also available with a VITA 48 Ruggedized Enhanced Design Implementation (REDI) Two-Level Maintenance bottom cover option.
Additional Features and Advantages
System health and maintenance is a key differentiator of the VX305C-40G. Provided by the combination of a Kontron-designed VITA 46.11 compatible Intelligent Platform Management Controller (IPMC) for centralized system health and management, and Kontron's Power-On Built-In Test (PBIT) package with its innovative “Reference Learn” approach, the VX305C-40G brings a new level of system health and management capabilities to rugged deployed systems. These built-in features can be augmented by Kontron's CMON Linux Health Monitoring Engine, which creates a continuous flow of health data from customizable test points
for either remote or local monitoring.
Long term programs: high reliability and low Total-Cost-of-Ownership
Kontron provides a Long Term Supply program service (LTS) for over 15 years. Intel communicates silicon reliability is 10 years. A comprehensive Health Management is optionally available to support easy field maintenance. All this makes the VX305C-40G an ideal candidate for long term programs.
Eigenschaften
| Form Factor | 3U VPX, 1’’ (5HP) Slot profile: LT3-PAY-1F1F2U1TU1T1U1T-14.2.16 (SOSA Aligned) |
| Processor | Intel® Xeon® D-1559 Twelve Core, TDP 35W, 1.5 GHz/2.1 GHz TURBO (12 execution cores, 24 threads, 18 MByte Cache) PCIe gen3 x8 ports to VPX and XMC, up to 8 GT/s |
| Main Memory | 32 GB dual channel DDR4 SDRAM running at 2133 MT/s, with ECC, soldered |
| Available I/Os | Front panel: None Backplane Utility Plane: Maintenance Port, SMB Data Plane: 1x 40Gigabit ETHERNET BASE-KR4 Expansion Plane: x4 PCIe 3.0 CONTROL PLANE: 2x 10G BASE-KR (or 1000BASE-KX) UTILITY PLANE: GPIO1, Maskable reset, GDISCRETE1, VBAT, SYSCON XMC I/O BLOCK: P1w9-X12d+P2w9-X16s+X8d I/O BLOCK: HDMI or DisplayPort, GETH 1000BASE-T, 1x Serial TIA-232 or TIA-422, 2x USB 2.0, 1x USB 3.0, 1x SATA III, GPIO 2/3/4 |
| Security | Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product |
| Watchdog | PLD-based, timeout ranging from 2 µs to 510s, IRQ, Reset, dual-stage |
| Flash | 2x16 MB FLASH, with recovery image and uEFI BIOS settings |
| Power Supply | On P0: VS1=12V and 3.3V_AUX; VS2 not used; VS3=5V not used; -12V_AUX for XMC slot option |
| Drives | 60 GB SSD M.2 Option |
| Cooling | Air and Conduction-cooled options |
