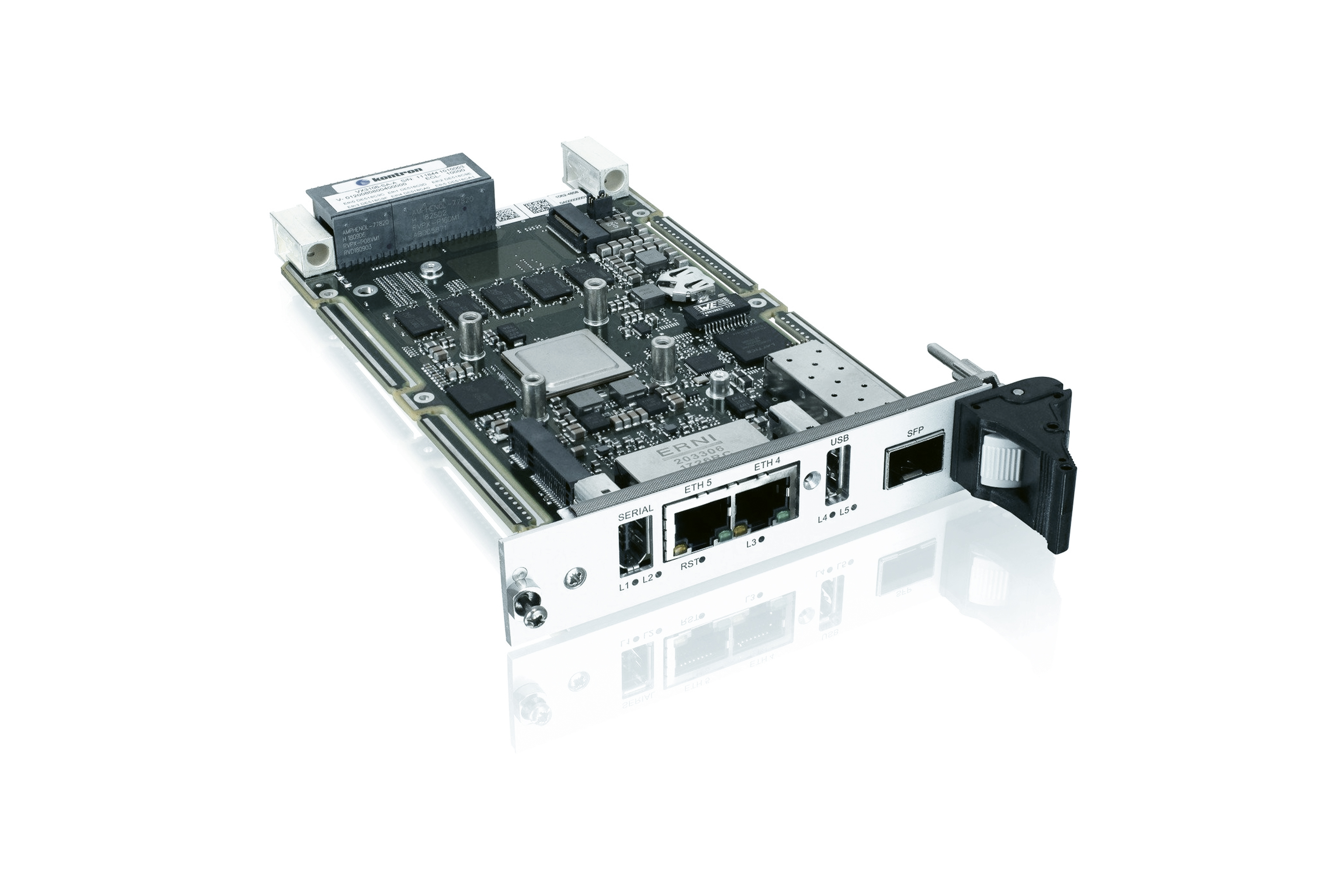

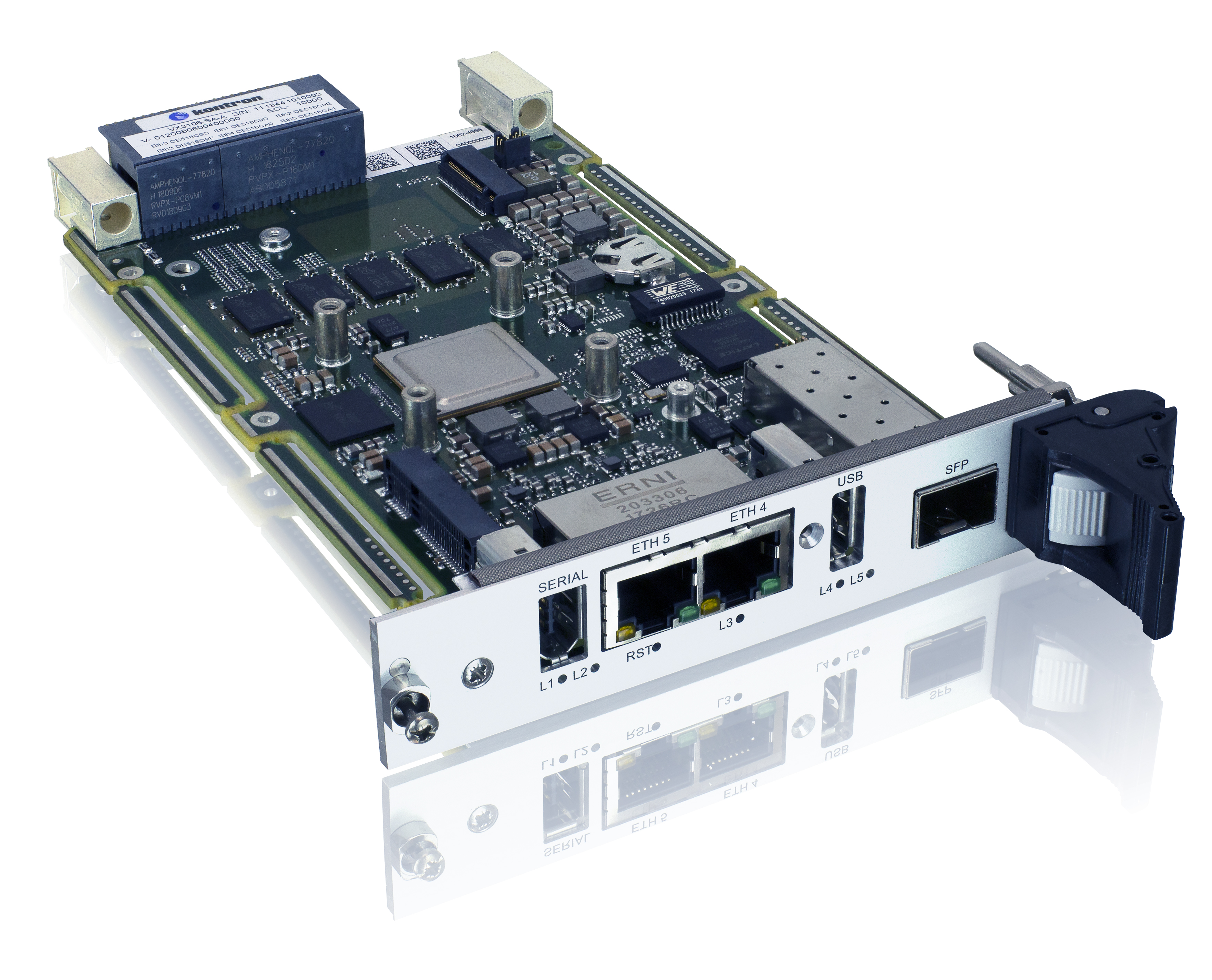

VX3106
3U VPX Low Power Network Blade SBC
Mouseover Zoom loading...
Spezifikationen
- Quad-core 1.2GHz 64bit ARM® A72 "Layerscape" Processor
- High Performance Neon SIMD Co-processor and Double Precision FPU
- 6 1Gb ETHERNET Ports, option for 2 10Gb (Base KR) Ports
- High Capacity Storage: 32GB eMMC and M.2 SATA III Sockets
- Low Power <20W operating on single +12VDC , fit for Natural Convection
- 10 year Long Term Supply and Support
General Purpose ARM Computer for Networking and Safety Applications
Featuring the NXP Layerscape LS1046, a high performance 30K DMIPS quad core processor based on an ARM A72 architecture clocked at 1.2GHz, the VX3106 is the ideal building bloc for specific embedded applications such as firewalling, or more general purpose computing in a low power enveloppe.
Compatible with the complete Kontron 3U VPX ecosystem, this ARM architecture SBC is the natural companion of X86 3U VPX SBCs to build heterogeneous and redundant computer architecture required by safety critical applications.
Long term programs: high reliability and low Total-Cost-of-Ownership
Kontron provides a Long Term Supply program service (LTS) for over 15 years. A comprehensive Health Management is optionally available to support easy field maintenance. All this makes the VX3106 an ideal candidate for long term programs such as Transportation or Energy infrastructures or Defense applications
Eigenschaften
| Form Factor | 3U VPX, 1’’ (5HP) 4 HP build version as option Slot profiles: SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10 |
| Processor | One NXP QorIQ Layerscape LS1046A Quad-Core 64-bit ARM® Cortex®-v8 A72 1.2 GHz upgradable to 1.8 GHz, 2 MB L2 cache, Neon SIMD Co-processor and DP FPU |
| Main Memory | 8 GB 72-bit DDR4 SDRAM at 1600 MT/s with ECC |
| Security | Dual secure elements, TPM and Wibu, which can be enhanced with Kontron SEC-LINE product |
| USB | USB 2.0 |
| Serial | EIA-232 Tx, Rx, RTS, CTS serial line on IEEE1394 connector |
| PCI Express / PCI support | x1 Gen. 3, second x1 lane as option |
Downloads
Datasheets
VX3106 Datasheet
[ vx3106-datasheet-06-2018.pdf, 1.04 MB, Sep.19.2018 ]
Manuals
VX3106 User Guide
[eingeschränkter Download]
[ d218433-1-0-vx3106_ug.pdf, 3.02 MB, Oct.26.2023 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
