VX6058 Nicht zu empfehlen für neue Designs

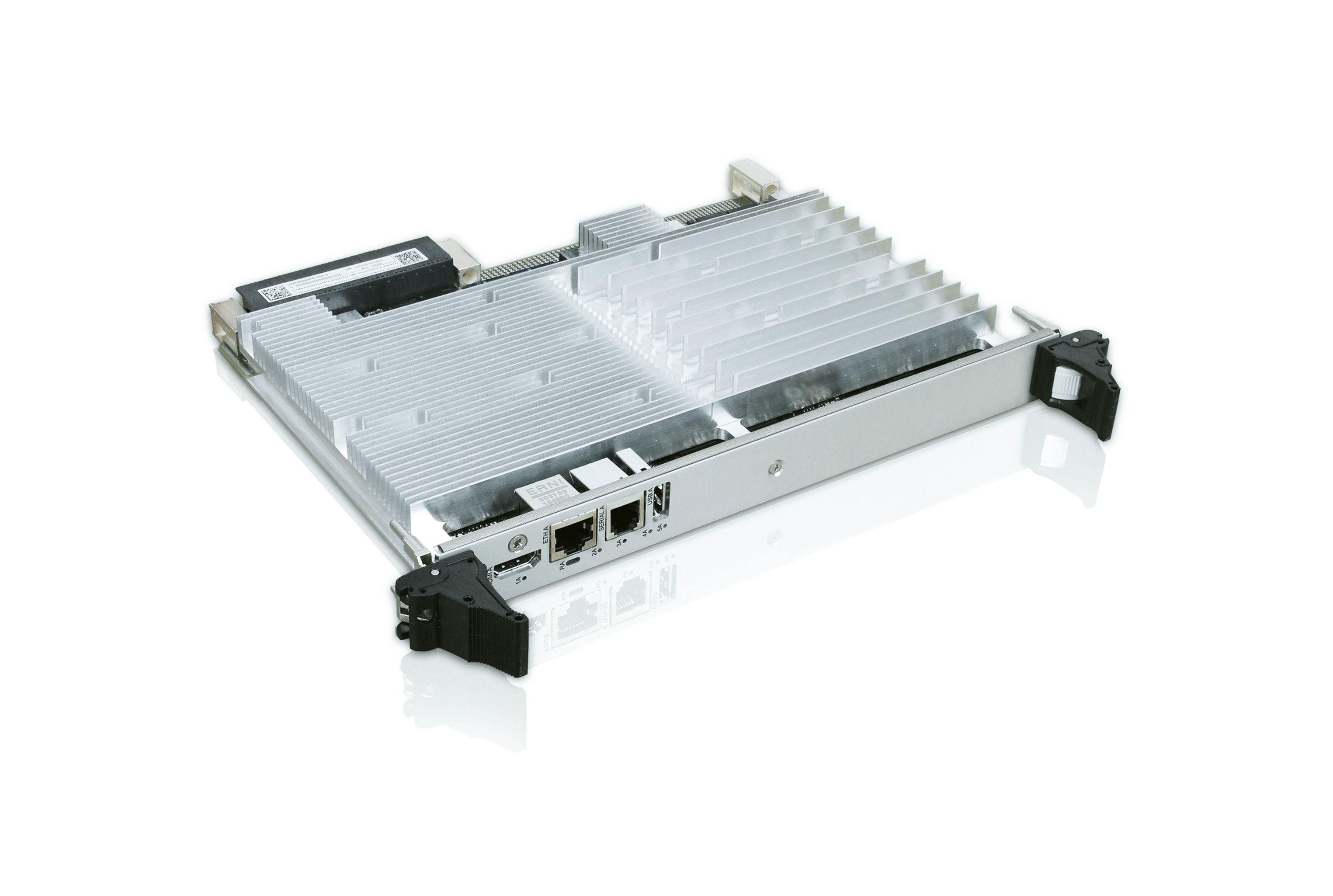

Value line 6U VPX Intel® Xeon® D Single Board Computer
Mouseover Zoom loading...
Spezifikationen
- 8-Core Xeon® D 64-bit SoC at 2.0 GHz
- 2D SXGA Graphics Controller
- Connectivity: Multiple 10G & 1G Ethernet Ports
- M.2 SATA III SSD Sockets
- Low Speed 17CFM Air Cooling capability
- Components from countries which accept use in Defense applications
- Extended Life Cycle and 10-year Silicon Reliability
Designed for Streaming Signal processing applications
The VX6058 is ideal for use in Size Weight, Power and Cost (SWaP-C)-constrained systems and general-purpose missions, ranging from industrial to extreme rugged defense applications. VX6058 features an 8-core 2.0 GHz Intel® Xeon-D® processor, on-board soldered DDR4 (with ECC), up to 12 MB of high speed cache memory and an embedded 2-D SXGA graphics controller. VX6058 provides dual 10 Gigabit Ethernet, two 1 Gbe Ethernet controllers and M.2 slots for data storage on COTS SSD devices. In addition, SATA, USB 3.0, USB 2.0, HDMI, serials and GPIOs are available on the front panel and to the rear backplane, as well as an optional XMC site for further I/O expansion.
Eigenschaften
| Processor | Intel® Xeon® D Octo Core™, 45W, 2.0 GHz (8 execution cores, 16 threads, 12 MB) |
| Frontpanel | 1000BaSe-T Ethernet, USB2.0, Serial, HDMI |
| Backplanes | Dual 10G Ethernet, Multiple 1G Ethernet Ports, SATA III, USB 3.0, Serial, GPIOs |
Downloads
Datasheets
VX6058 datasheet
Value line 6U VPX 8-Core Xeon-D SBC
[ vx6058-datasheet-03-2017.pdf, 1.68 MB, Aug.31.2017 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 1.36 MB, Jun.18.2024 ]
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
