3.5"-SBC-RPL New

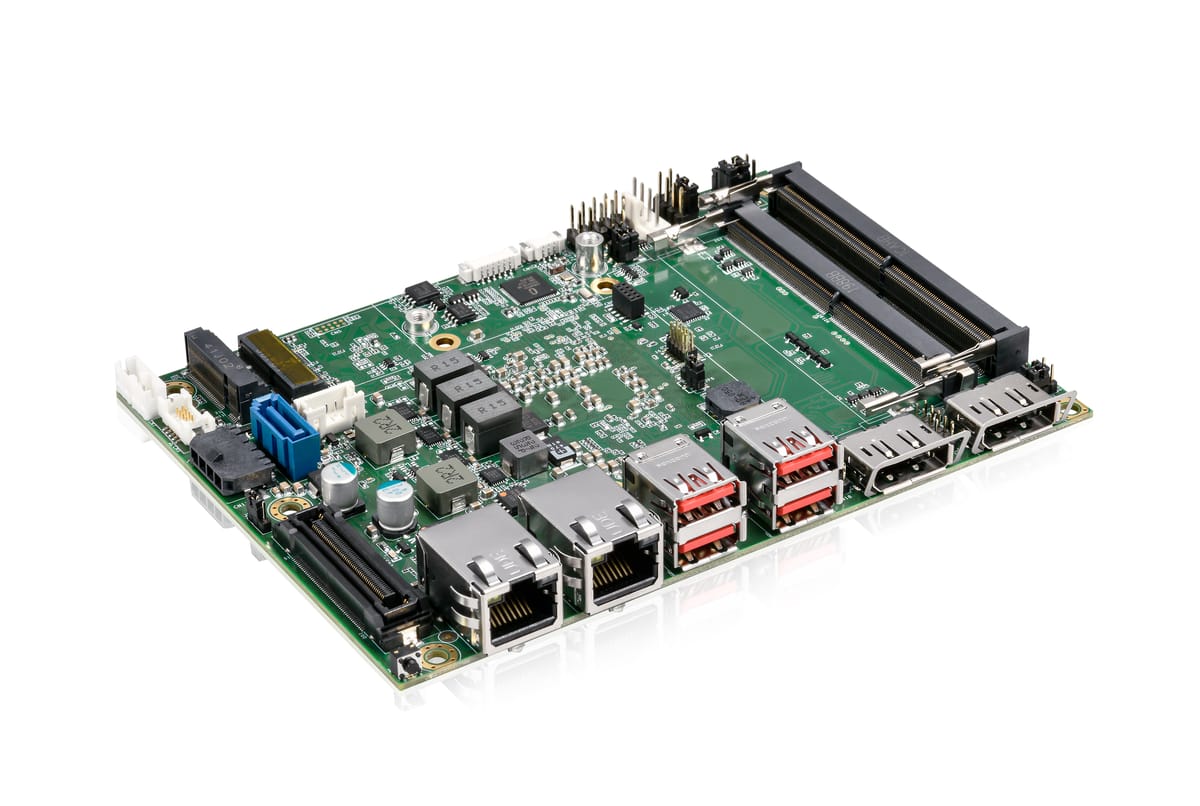

3.5" Single Board Computer with 13th Gen Intel® Core™ U-Series Processors
Specifications
Coming soon- Time Coordinated Computing / Time Sensitive Networking for real-time control
- 8K UHD video output support
- Additional Rear I/O expansion via board-to-board connector
- Industrial-grade operating temperature range for extreme environmental conditions
- Wide power input voltage range for more application scenarios
Ideal for a variety of IoT applications
3.5"-SBC-RPL is a 3.5" single board computer powered by 13th Gen Intel® Core™ U-Series processors. Besides great performance improvement in graphics, it features 2.5 GbE with TSN (Time Sensitive Networking) capability and enhanced TPM 2.0 security / encryption support, ideal for a variety of IoT applications, such as industrial automation, retail, smart city and healthcare.
The board supports an extended board-to-board connector, providing additional I/O port expansion to fulfill possible application requirements.
Features
| Processor | Intel® Core™ i7-1365UE / Intel® Core™ i7-1365URE (10C, 12M, 1.7 / 4.9 GHz, FCBGA1744, 12 W ← 15 W → 28 W TDP) Intel® Core™ i5-1345UE / Intel® Core™ i5-1345URE (10C, 12M, 1.4 / 4.6 GHz, FCBGA1744, 12 W ← 15 W → 28 W TDP) Intel® Core™ i3-1315UE / Intel® Core™ i3-1315URE (6C, 10M, 1.2 / 4.5 GHz, FCBGA1744, 12 W ← 15 W → 28 W TDP) Intel® U300E (5C, 8M, 1.1 / 4.3 GHz, FCBGA1744, 12 W ← 15 W → 28 W TDP) |
| Memory | 2x DDR5 5200 SO-DIMM up to 96 GByte |
| Graphics Controller | Intel® Iris® Xe Graphics |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 2x DP (7680 x 4320 @ 60 Hz, on rear) Quadruple Display Support (more display I/Os supported via board-to-board connector) |
| Audio CODEC | TSI 92HD91B |
| Audio Interface | 1x Speaker-out (Stereo, 3 W, by header) 1x Line-in (by header) 1x Line-out (by header) 1x Mic-in (by header) 1x S/PDIF Out (by header) |
| Ethernet | 2x 2.5 GbE LAN (RJ45 on rear, Intel® I226-LM/IT) TSN support for models with Core™ URE Series processors |
| USB | 4x USB 3.2 Gen 2 (Type A on rear) 3x USB 2.0 (by header, +1 in case of no CAN Bus, -2 in case of 2x USB 2.0 in B2B) |
| Serial Ports | 2x RS232 (default) / RS232/422/485 (optional) (by header, Tx / Rx only for RS232 signal) |
| Digital Inputs (DI) | 4x DI (by header) |
| Digital Outputs (DO) | 4x DO (by header) |
| CAN BUS | 2x CAN Bus (by header) |
| SATA | 1x SATA 3.0 |
| Expansion | 1x M.2 Key B (Type 2242/3042/3052/2280, w/ PCIe x1 / USB 2.0 / SATA / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi) 1x M.2 Key M (Type 2280, w/ PCIe x4) 1x SIM Card Holder (by header) 1x Board-to-board Connector (1x DDI / 1x TCP / 1x PCIe x2 / 1x PCIe x1 / 1x SM Bus / 1x I2C / 1x UART / 1x GSPI / 2x USB 2.0 (optional, trade o w/ USB 2.0 header)) |
| Input Voltage | DC 9 V ~ 36 V |
| Power connector | 1x4-pin pitch 3.0 mm Wafer |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages, Temperatures |
| Real Time Clock | Processor integrated RTC |
| Security | TPM 2.0 Support (Infineon SLB 9672) |
| FP Header | 1x Header for Reset Button, HDD LED & External Speaker 1x Header for Power Button, Power LED & SM Bus 1x Standby LED (Yellow, on rear) 1x Power LED (Green, on rear) 1x Power Button (on rear) |
| Fan | 1x Wafer for Smart Fan |
| Operating System | Windows 11, Windows 10, Linux |
| Form Factor | ECX (146 mm x 105 mm / 5.75" x 4.13") |
| Operating Temperature | 0 °C ~ 60 °C / 32 °F ~ 140 °F (Standard) -20 °C ~ 70 °C / -4 °F ~ 158 °F (Extended) -40 °C ~ 85 °C / -40 °F ~ 185 °F (Extreme) |
| Storage Temperature | -20 °C ~ 80 °C / -4 °F ~ 176 °F (Standard) -55 °C ~ 85 °C / -67 °F ~ 185 °F (Extreme) |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B, ICES Class B, UKCA, UR (UL Recognized) |
Downloads
Datasheets
3.5"-SBC-RPL Datasheet
Revision 20241223, December 23, 2024
[ 3d5-sbc-rpl-datasheet-20241223.pdf, 2.2 MB, Dec.23.2024 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Tech Spec Sheet
Tech Specs SBC
(Release Candidate)
Revision 20241014, October 14, 2024
[ 3d5-sbc-tech-spec-sheet-20241014.pdf, 19.83 MB, Nov.04.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Accessories
|
3.5" Extended I/O Board (3.5"-eIO-GPA-0)
1069-6159 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C | more |
|
3.5" Extended I/O Board (3.5"-eIO-GPA-1)
1069-6922 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, Intel® I226-LM Ethernet Controller, Operating temperature: 0 °C ~ 60 °C | more |
|
3.5" Extended I/O Board (3.5"-eIO-GPA-2-XT)
1073-9682 |
|
2x DP, 2x 2.5 GbE LAN, 1x UART, 1x I2C, 1x SMBus, 1x GSPI, 1x DC In Terminal Block, Intel® I226-IT Ethernet Controller, Operating temperature: -40 °C ~ 85 °C | more |
|
DC In Cable, L = 230 mm |
|
1x4P 3.0 pitch to EHDP-2P 5.08 pitch + JST 110 1x2P, L = 230 mm | |
|
SATA Cable with Lock 1064-2431 |
|
SATA Cable with Lock, 1X7P (1.27 pitch), L=460 mm | |
|
SATA Power Cable 1064-2430 |
|
SATA Power Cable, SATA 1x15P Pitch:1.27mm to PH 2.0 HSG 1x4P 2.0pitch, L=460mm | |
|
COM_Port Cable 1064-2427 |
|
D-SUB 9P (male) to 1x10P 1.25 pitch, L=350 mm | |
|
DIO Cable 1065-3137 |
|
D-SUB-9P(Female) to 1x10P 1.25 pitch, L=200mm | |
|
2-Port USB 2.0 Cable 1069-7893 |
|
2x5-pin pitch 2.0 mm to 2x USB Type A 4P Female w/ bracket, L = 270 mm | |
|
Audio Cable w/ 3x Phone Jack 1070-1245 |
|
HRS DF13-10DS-1.25C 1.25 pitch to PJ-2509CTPC-5-L (3.5 mm phone jack) x3, L = 400 mm | |
|
Power Adapter - DC 24 V / 150 W |
|
Input: AC 100 V ~ 240 V, output: DC 24 V @ 6.25 A Max. 150 W | |
|
Screw Copper Pillar Kit - 13 pcs |
|
2x 39.6 mm Pillar, 6x 19 mm Pillar, 5x 5 mm Screw | |
|
Heatsink - Cooling Solution 1067-5535 |
|
Heatsink with Fan, 15W tdp | |
|
Heatsink for 3.5"-SBC-RPL |
|
Al +Cu Heatsink w/ Pad, 4x M3x6L Screw | |
|
Starter Kit for 3.5"-SBC-RPL (Active) 1074-8826 |
|
1x DC In Cable, 1x SATA Data Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Cooler | |
|
Starter Kit for 3.5"-SBC-RPL (Passive) |
|
1x DC In Cable, 1x SATA Data Cable, 1x SATA Power Cable, 1x COM Port Cable, 1x DIO Cable, 1x 2-Port USB Cable, 1x Audio Cable, 1x Power Adapter, 1x Screw Copper Pillar Kit, 1x Heatsink |
