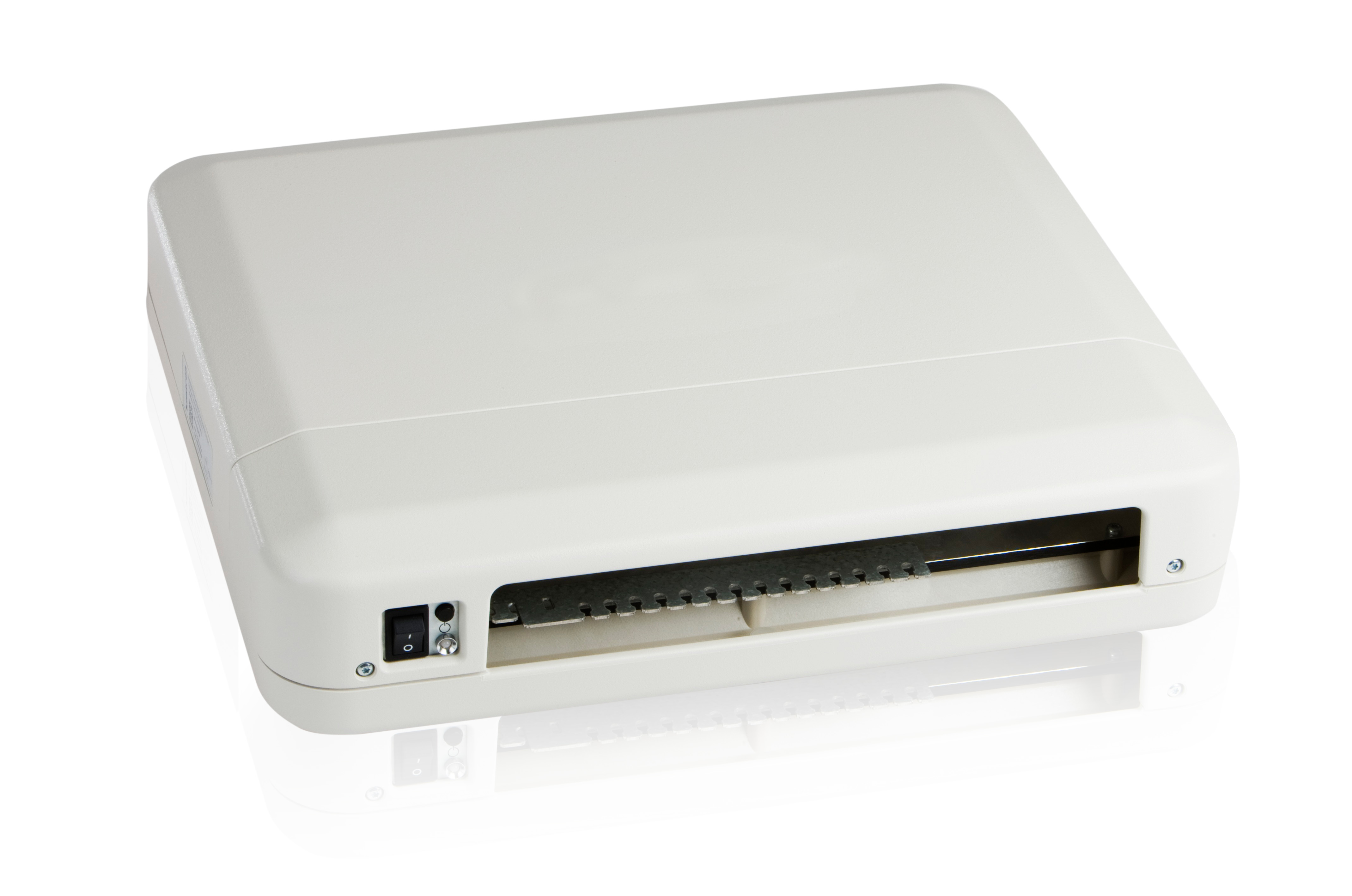

Clinic-BPC B-101

Medical Box PC
Spezifikationen
  • Ethernet Daisy Chaining
  • Built-in medical isolator at AC/DC PSU
  • 3x LAN, medical isolated
  • 2 independent DVI monitor outputs for simultaneous
  • Patient Monitoring and EHR access
  • Silent operation, fanless design
Datenblatt herunterladen

Optimized for easy Installation and Cabling

The Clinic-BPC B-101 for clinical processes was developed specifically for applications in the medical environment, in particular for use close to patients. The PC stands out thanks to easy installation and cabling as well as the use of energy-efficient components. The Clinic-BPC B-101 has three LAN ports and flexible DVI and VGA interfaces to enable both existing analogue displays and more modern digital displays to be connected without any problems.

Due to the special usage situation, the computer was designed without a fan, thereby enabling silent operation. The Clinic-BPC B-101 has three medically isolated LAN ports and, optionally, isolated RS232 interfaces, as well as two independent, external monitor outputs (DVI-I and DVI-D) to enable the simultaneous display of the electronic patient file and the monitoring of vital data. The system was designed in conformity with DIN EN 60601-1 for the particular safety of electronic devices in medical environments.

The Clinic-BPC B-101 is maintenance-free thanks to non-rotating components, energy-efficient parts, such as mobile Intel® Core™ processors, long-lasting hardware and a sealed case. With its integrated Ethernet switch, this box PC can be connected in sequence (daisy chaining) which enables simple cabling in any patient’s room. As well as a quick SSD, the system also has 4GB of DDR3 RAM and four USB 3.0 ports. The robust plastic case is scratch- and corrosion-proof and resistant to cleaning detergents. It therefore offers long durability and is easy to clean and disinfect. As an option, OEM customers can have their own logo imprinted.



Downloads

Datasheets

Datasheet Clinic-BPC B-101
[ datasheet_clinic-bpc.pdf, 479.24 KB, Aug.31.2017 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
