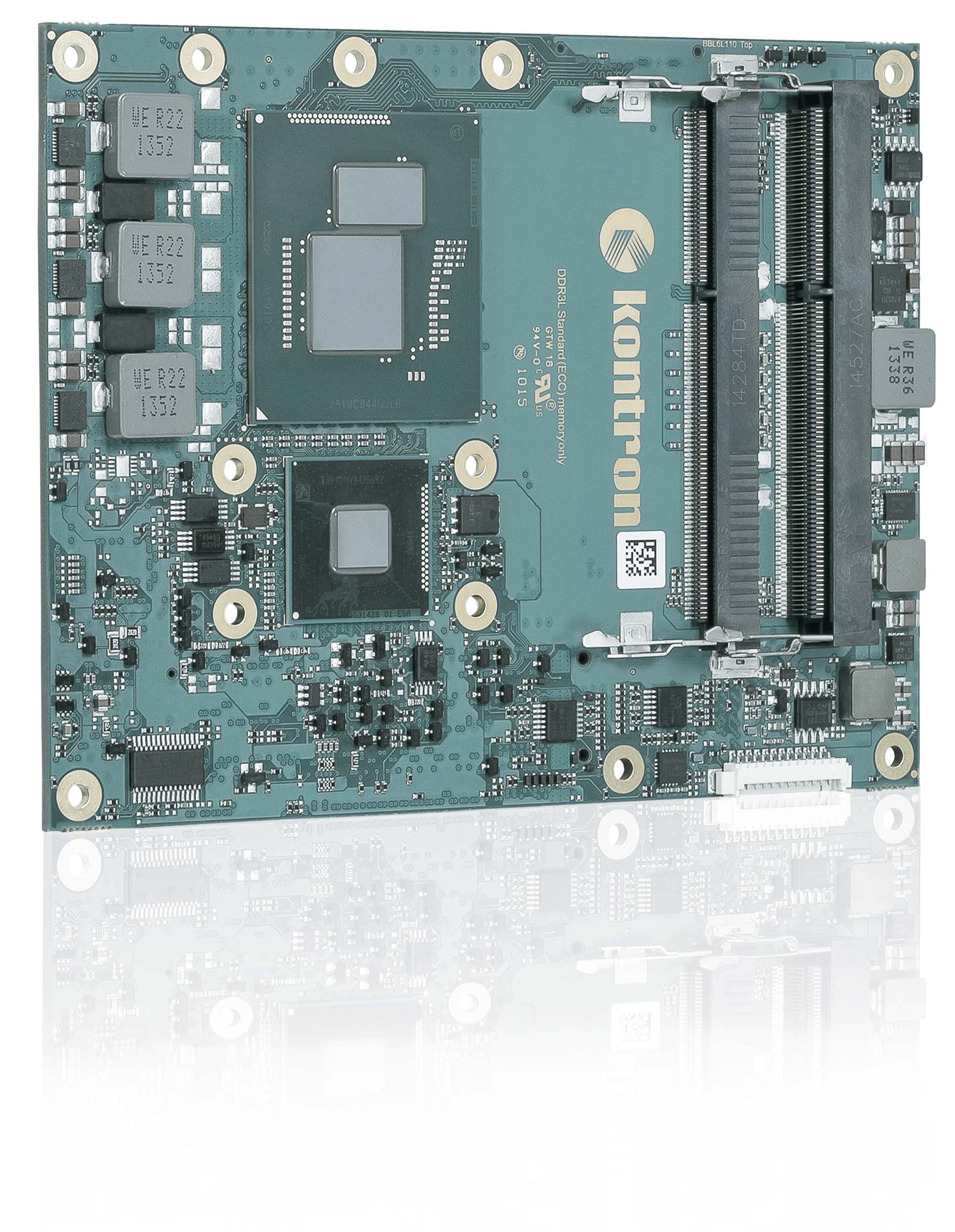

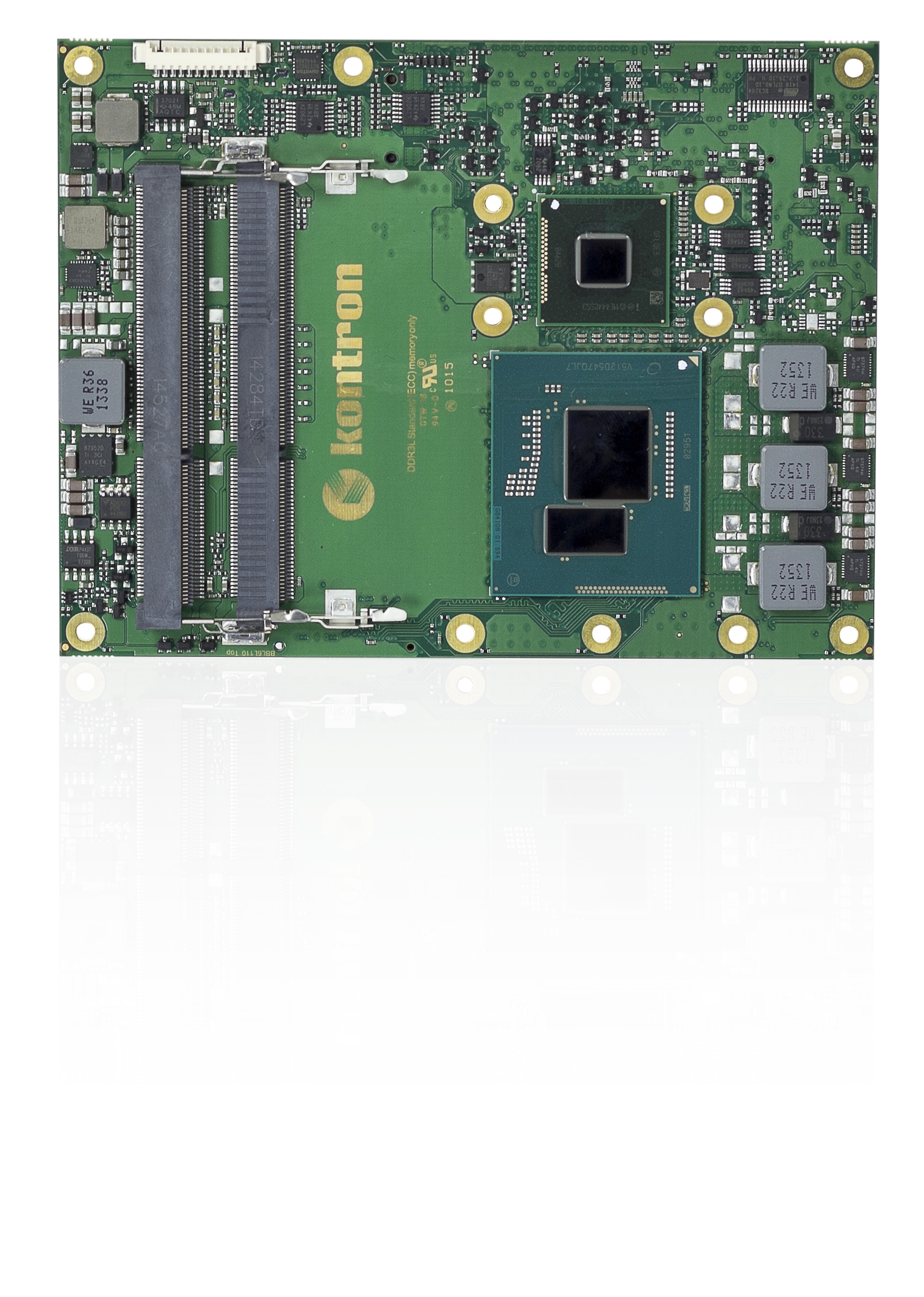

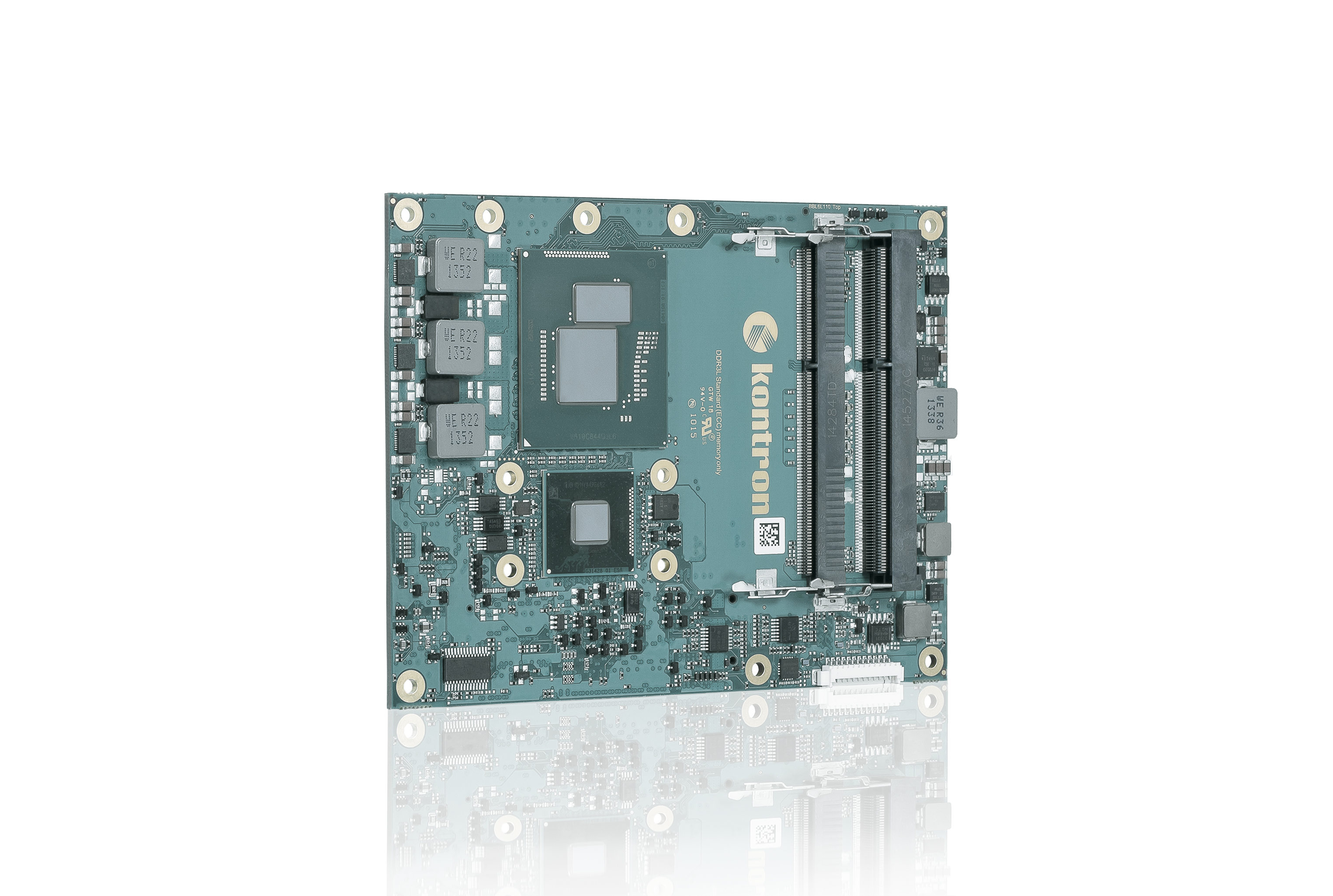

COMe-bBL6 This product is legacy
COM Express® basic Type 6
with 5th Generation Intel® Core™ Processors
Mouseover Zoom loading...
Specifications
- Intel® 5th Generation Core™ i7 with QM87
- With non-ECC DDR3L up to 32 GByte
- Triple independent display support with 4k resolutions
Features
| Compliance | COM Express® basic, Pin-out Type 6 |
| Dimensions (H x W x D) | 125 x 95 mm |
| CPU | Intel® Core™ i7-5850EQ, Intel® Core™ i7-5700EQ, Intel® Xeon® E3-1278L v4, Intel® Xeon® E3-1258L v4 |
| Chipset | Intel® Mobile QM87 |
| Main Memory | 2x non-ECC DDR3L-1600 SO-DIMM up to 2x 16 GByte |
| Graphics Controller | Intel® Iris™ Pro Graphics P6300/6200 (GT3e), Intel® HD Graphics P5700/P5600 (GT2) |
| Ethernet Controller | Intel® I218LM |
| Ethernet | 10/100/1000 MBit Ethernet |
| Hard Disk | QM87: 3x SATA 6Gb/s, 1x SATA 3Gb/s |
| Flash | - |
| PCI Express / PCI support | 7x PCIe x1, 1x PEG x16 |
| Panel signal | DDI1: DP++, DDI2: DP++, DDI3: DP++, VGA: Yes, LVDS: Dual Channel 18/24bit |
| USB | 4x USB 3.0 (incl. USB 2.0) + 4x USB 2.0 |
| Serial | 2x serial interface (RX/TX only) |
| Audio | Intel® High Definition Audio |
| Common Features | SPI, LPC, SMB, Fast I²C, Staged Watchdog, RTC, MARS |
| BIOS | Phoenix Secure Core UEFI |
| Humidity | 93 % relative Humidity at 40 °C, non-condensing (according to IEC 60068-2-78) |
| Options | 1x PCIe x1 additional w/o onboard LAN, vPRO (AMT/TXT/AES Support), eDP instead of LVDS |
| Power Management | ACPI 4.0, S5 Eco |
| Power Management | ATX or 12 V Single Supply Power on COMe-bBL6XT 8.5 V – 20 V Wide Range, Single Supply Power on COMe-bBL6 |
| Special Features | POSCAP capacitors, Trusted Platfom Module TPM 1.2, 4k Resolutions, Flexible PEG lane confi guration by Setup Option |
| Operating System | Windows® 10, Windows® 8, Windows® 7, WE8S, WES7, Linux, VxWorks |
| Temperature | Industrial temperature: -40 °C to +85 °C operating, -40 °C to +85 °C non-operating on COMe-bBL6XT Commercial temperature: 0 °C to +60 °C operating, -30 °C to +85 °C non-operating Extended temperature: -25 °C to +75 °C operating, -30 °C to +85 °C non-operating on COMe-bBL6 |
Downloads
Datasheets
COMe_bBL6 datasheet
[ datasheet_come-bbl6.pdf, 1.23 MB, Aug.31.2017 ]
COMe_bBL6XT datasheet
[ datasheet_come-bbl6xt.pdf, 1.23 MB, Aug.31.2017 ]
Manuals
COMe-bBL6
Rev. 2.1
Jul. 23, 2020
[ come-bbl6_user-guide_rev-2-1_2020-07-23.pdf, 6.45 MB, Oct.18.2024 ]
General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
COMe-bBL6XT |
|
COM Express® BASIC TYPE 6 | |
|
COMe-bBL6 E3-1278L 38027-0000-20-4 |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Xeon® E3-1278L v4, 4x1,8GHz, QM87 PCH, 2x DDR3L SO-DIMM | |
|
COMe-bBL6 E3-1258L 38027-0000-18-4 |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Xeon® E3-1258L v4, 4x1,8GHz, QM87 PCH, 2x DDR3L SO-DIMM | |
|
COMe-bBL6 i7-5850EQ 38027-0000-27-7 |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-5850EQ, 4x2,7GHz QM87 PCH, 2x DDR3L SO-DIMM | |
|
COMe-bBL6 i7-5700EQ 38027-0000-26-7 |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-5700EQ, 4x2,6GHz QM87 PCH, 2x DDR3L SO-DIMM | |
|
COMe-bBL6XT E3-1278L 38028-0000-20-4XT |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Xeon® E3-1278L v4, 4x1,8GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, industrial temperature grade | |
|
COMe-bBL6XT E3-1258L 38028-0000-18-4XT |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Xeon® E3-1258L v4, 4x1,8GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, industrial temperature grade | |
|
COMe-bBL6XT i7-5850EQ 38028-0000-27-7XT |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-5850EQ, 4x2.7GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, industrial temperature grade | |
|
COMe-bBL6XT i7-5700EQ 38028-0000-26-7XT |
|
COM Express® basic pin-out type 6 Computer-on-Module with Intel® Core™ i7-5700EQ, 4x2,6GHz, QM87 PCH, 2x DDR3L ECC SO-DIMM, industrial temperature grade |
Accessories
|

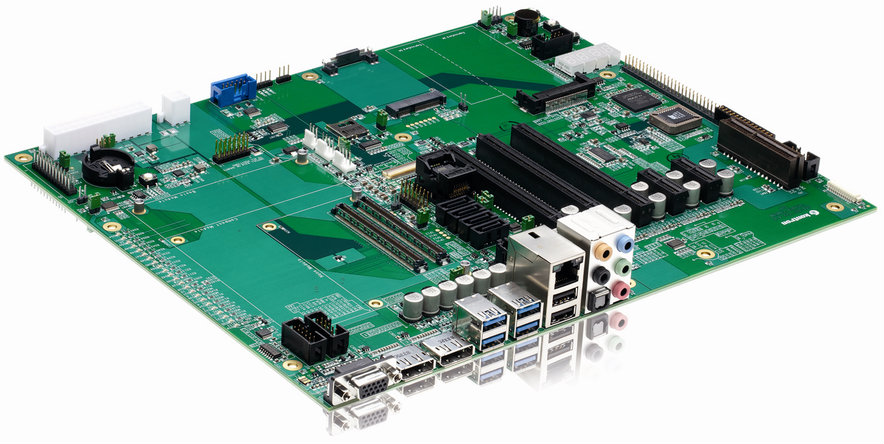

COMe Eval Carrier T6
38106-0000-00-0 |
|
COM Express® Evaluation Carrier Type 6 | more |
|

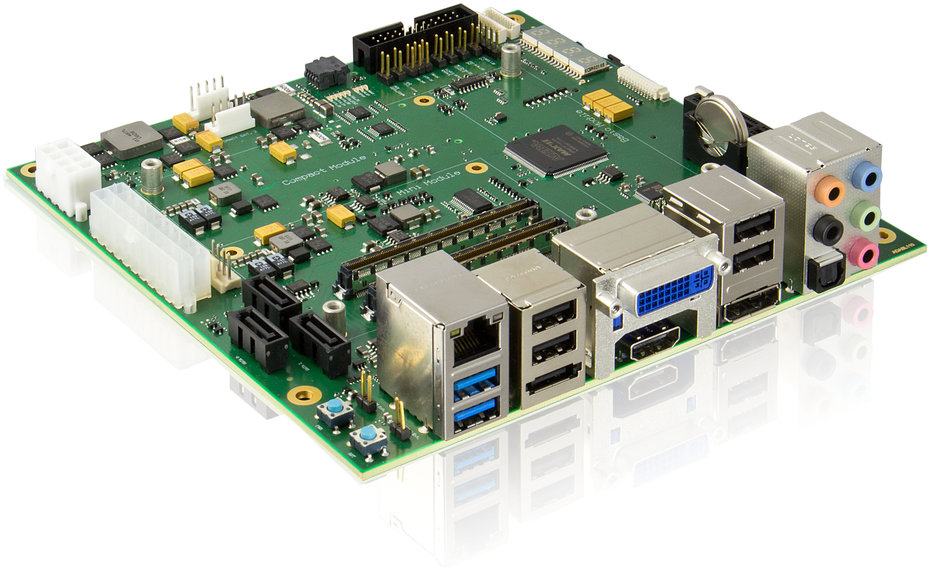

COMe Ref.Carrier T6
